3M Products & Supplies

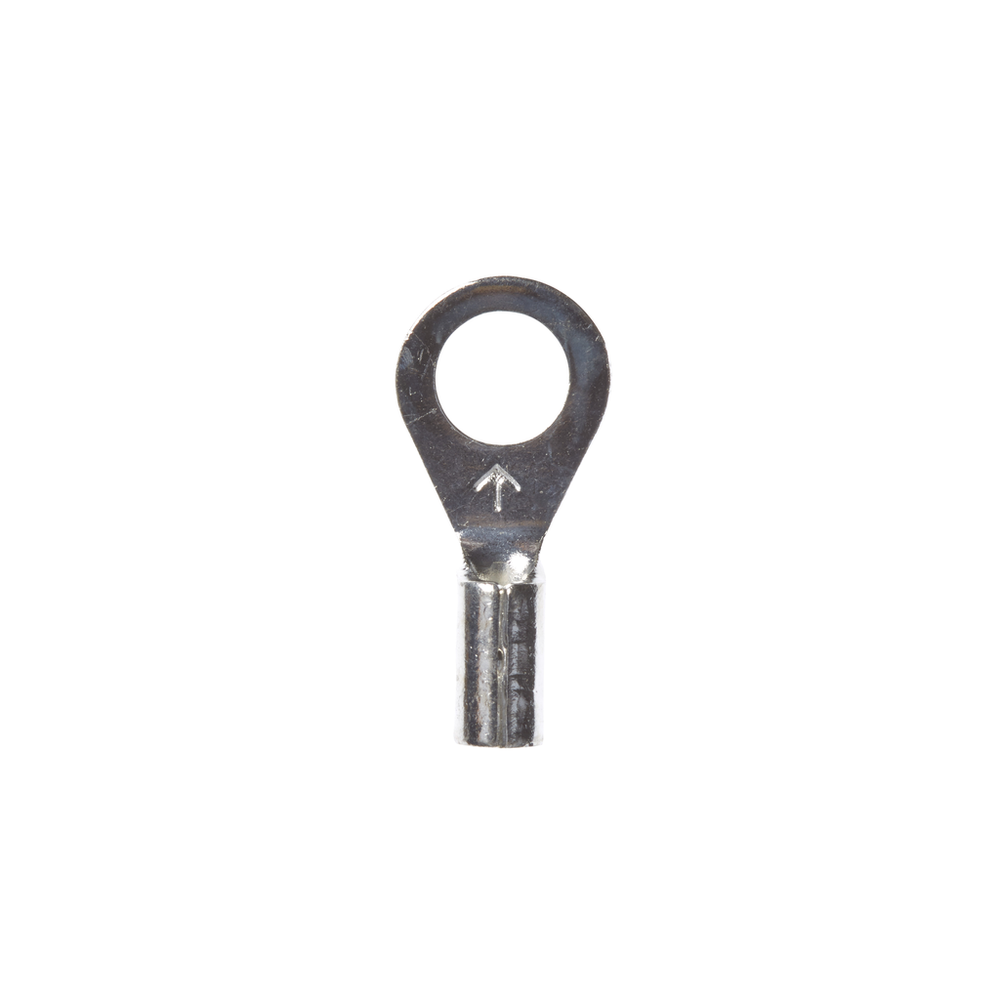

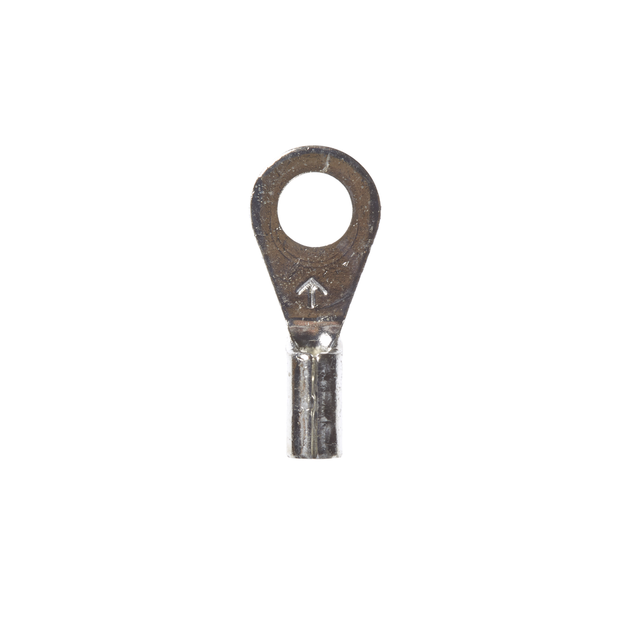

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, MU18-10RX, standard-style ring tongue fits around the stud, 500/Case - 7010304206

Sold As: 100-Pack
SKU: 7010304206
MPN: 7010304206
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590048
3M ID: 80611466501
5 Digit UPC: 59004
$164.81 ($1.65 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeRing
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.7
Minimum Conductor Size (Metric)0.326 mm²
UL File NumberE23438
Connection Width (Imperial)0.19
Terminal StyleStandard
Insulation MaterialNon-insulated
Overall Width (Imperial)0.33
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)0.823
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric)4.826
Solution forWireless Network: Infrastructure Accessories
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
Barrel StyleButted
Ring TypeStandard
