3M Products & Supplies

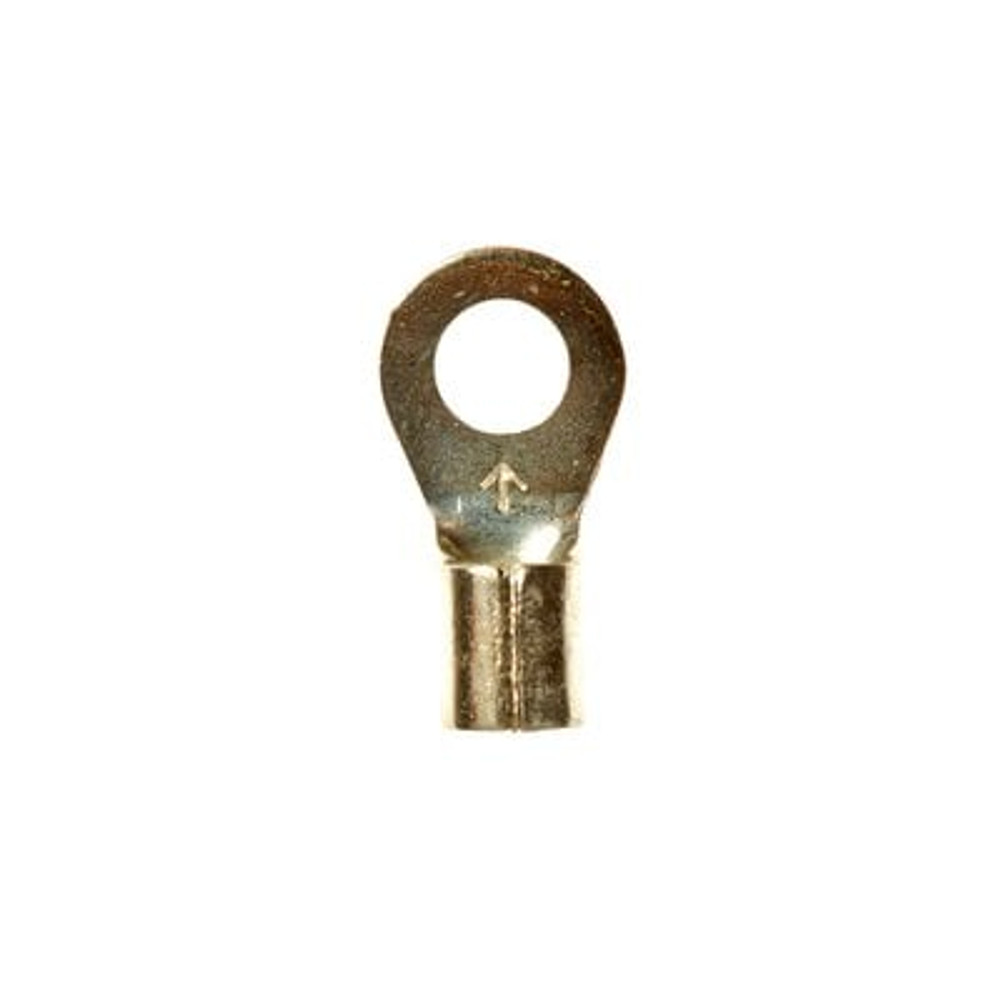

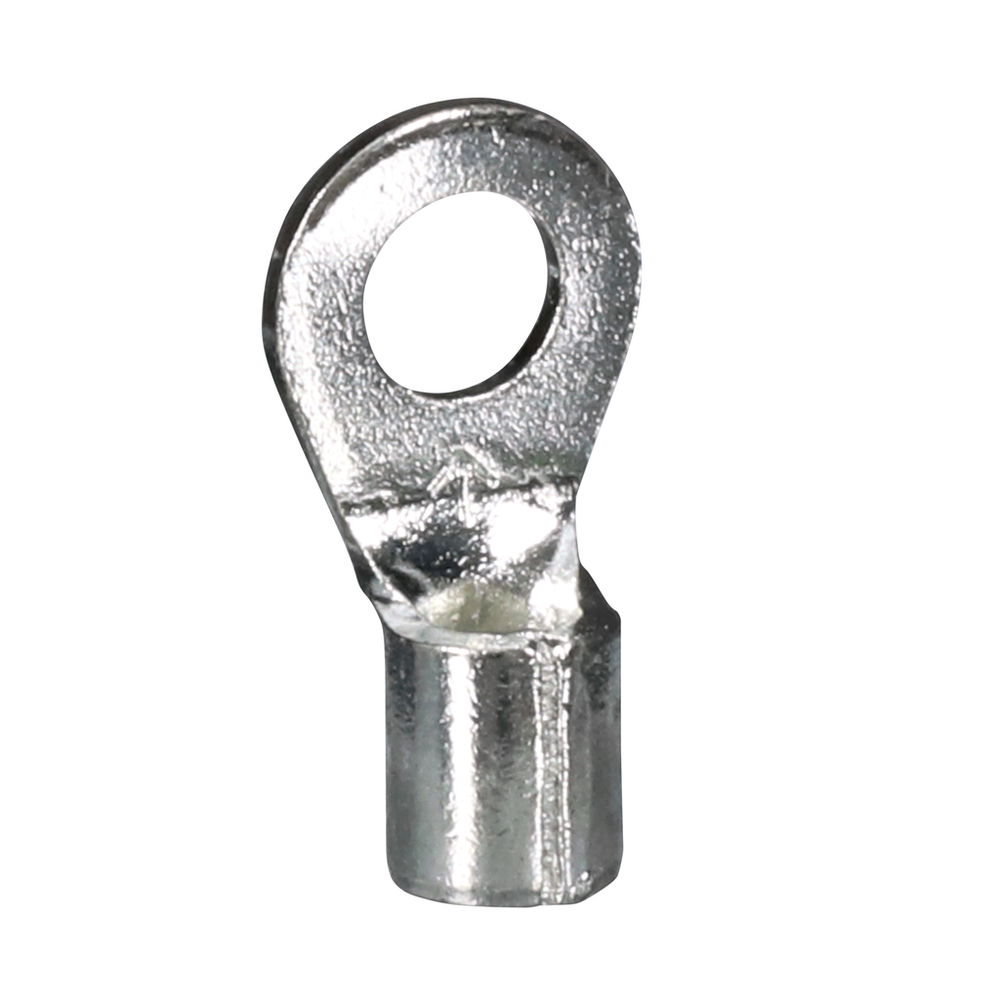

3M™ Scotchlok™ Ring Non-Insulated, 50/bottle, M10-10RX, standard-style ring tongue fits around the stud, 500/Case - 7000133294

Sold As: 50-Pack
SKU: 7000133294
MPN: 7000133294
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586822
3M ID: 80611458276
5 Digit UPC: 58682
$33.71 ($0.67 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

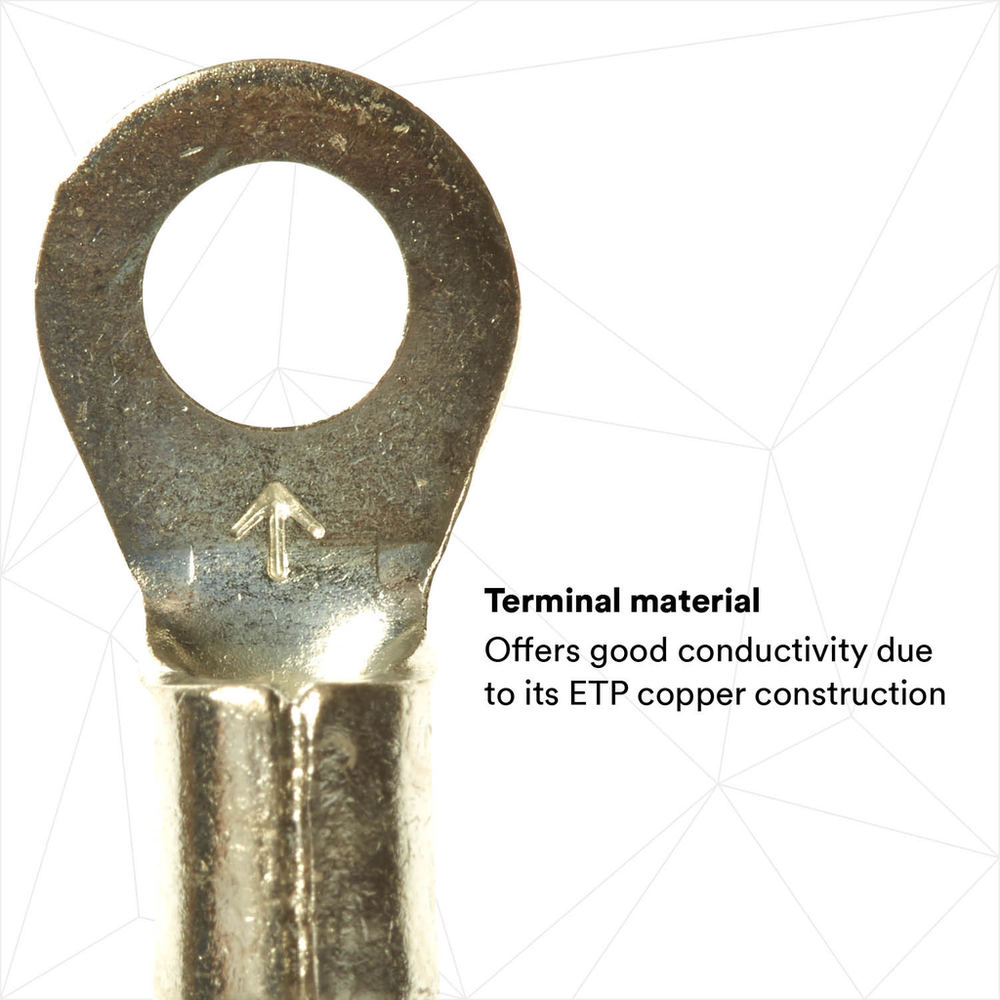

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud

Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric)18.54
Stud Sizes#10
Product ColorMetal
Connection Width (Metric)4.826

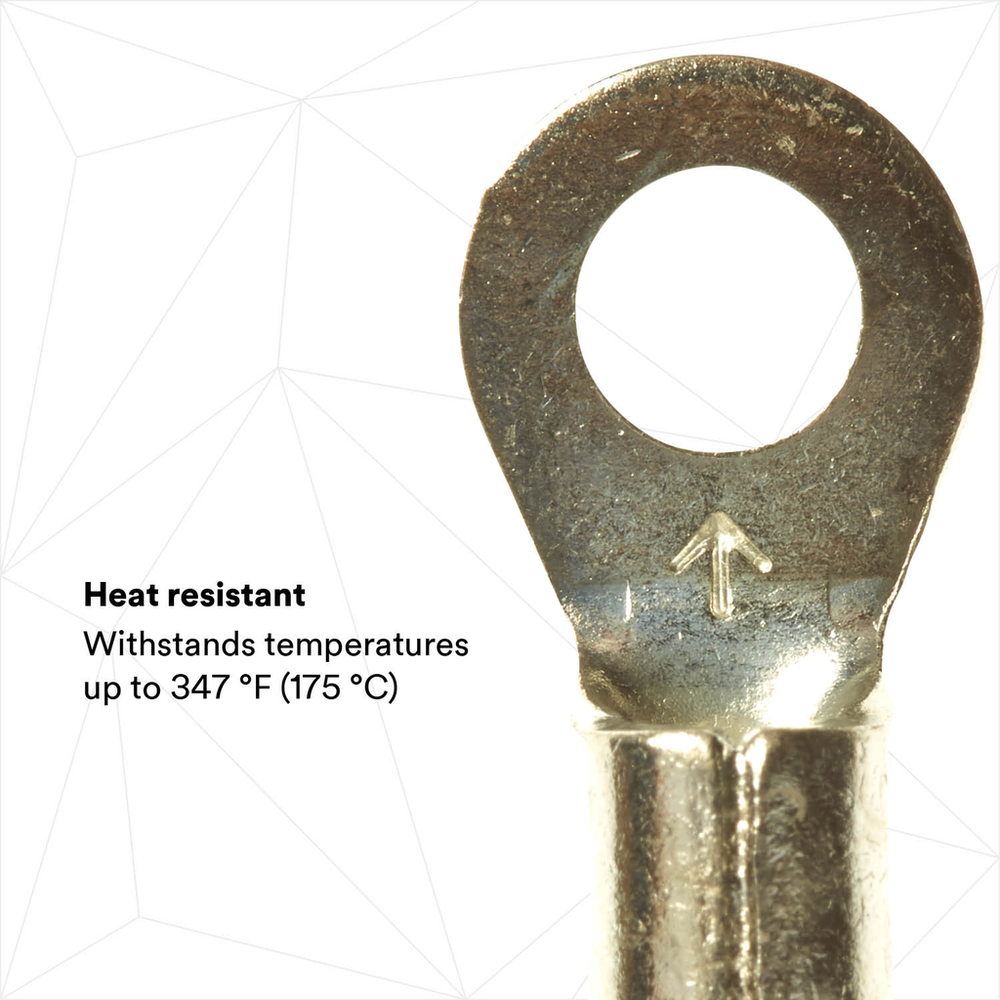

Maximum Operating Temperature (Celsius)175.0
Maximum Conductor Size (Metric)0.205
Overall Width (Metric) UOMmm
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric)5.0

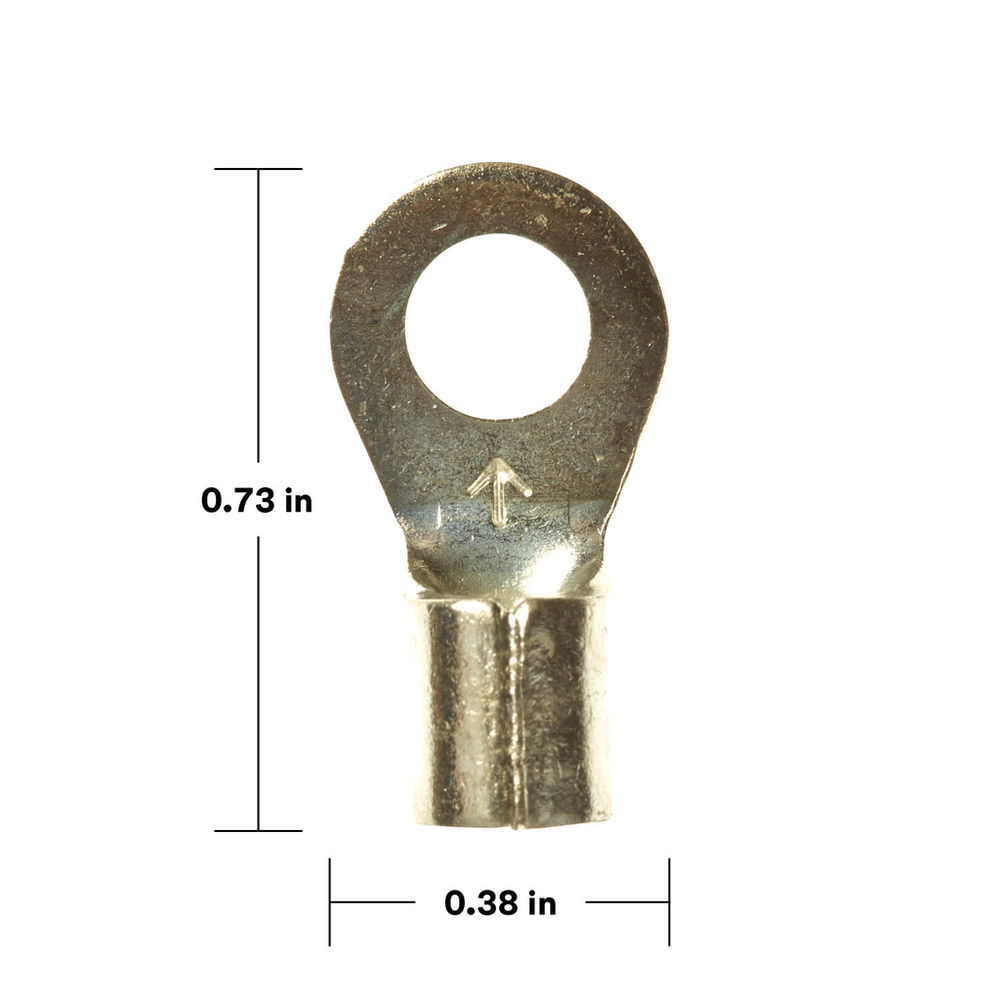

Overall Length (Imperial)0.73
Connection Width (Imperial)0.19
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric).14 mm²
Connection TypeCrimp
Terminal StyleStandard
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Metric)9.65

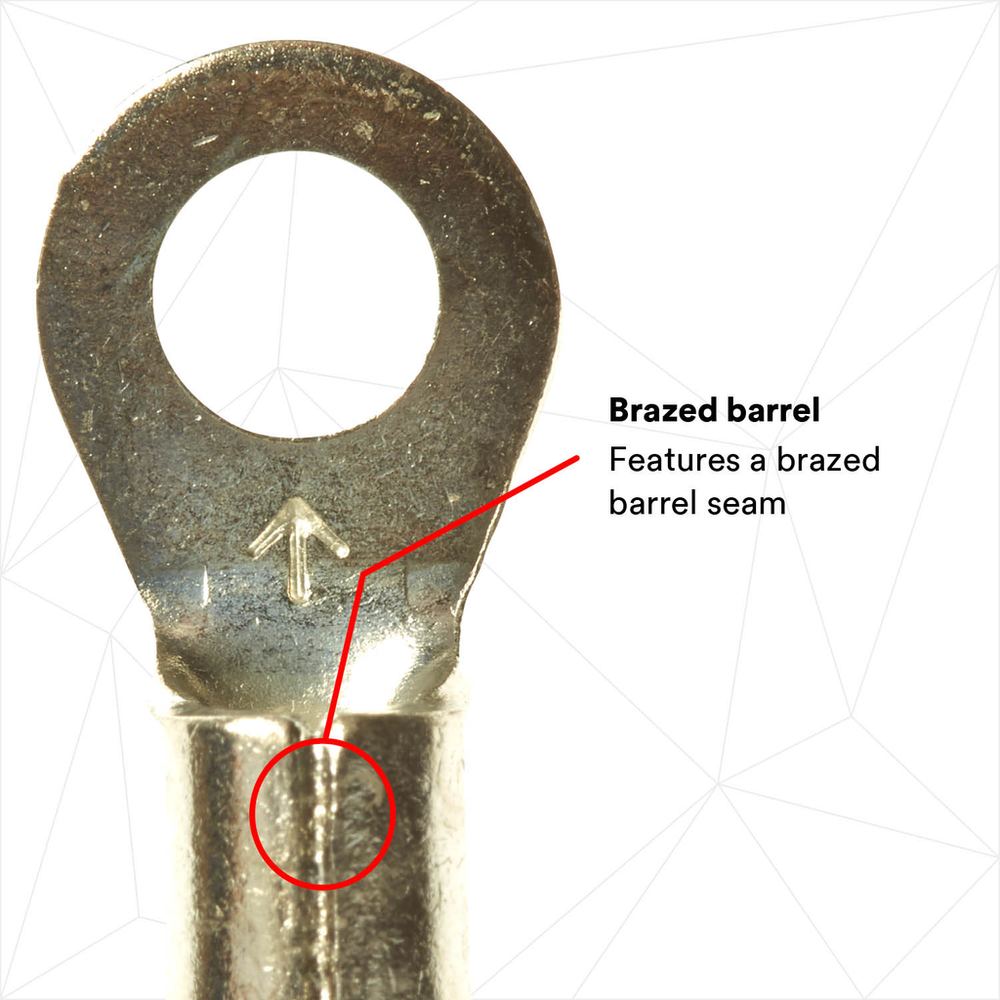

Barrel StyleBrazed
Ring TypeStandard
Overall Length (Metric) UOMmm
Minimum Stud Diameter (Metric) UOMmm
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Terminal TypeRing
Overall Width (Imperial)0.38
Overall Width (Imperial) UOMin
