3M Products & Supplies

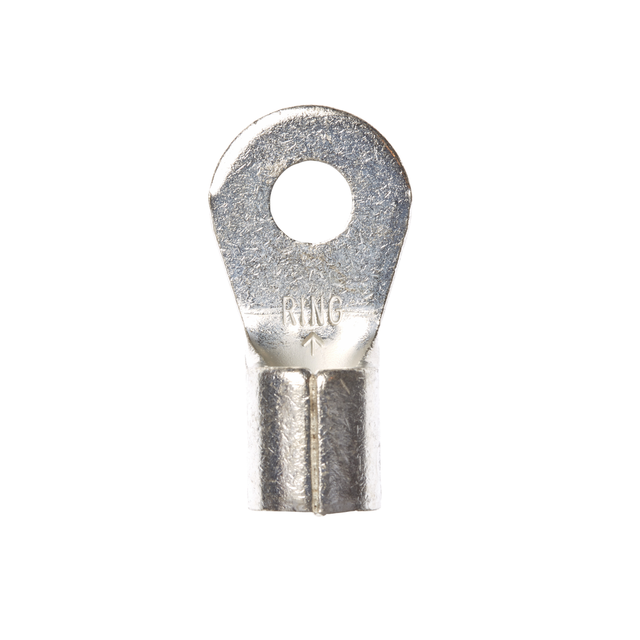

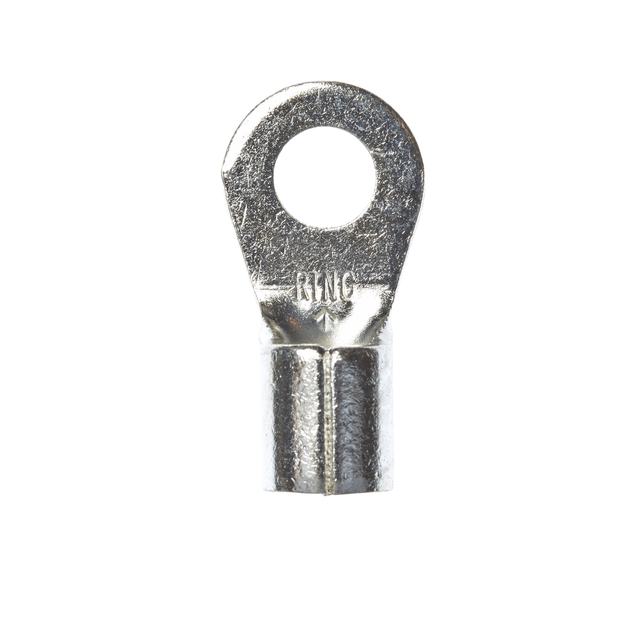

3M™ Scotchlok™ Ring Non-Insulated, 10/bottle, M4-10RX, standard-style ring tongue fits around the stud, 100/Case - 7100165322

Sold As: 100-Pack
SKU: 7100165322
MPN: 7100165322
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589922
3M ID: 80611466386
5 Digit UPC: 58992
$337.13 ($3.37 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.19
Maximum Operating Temperature (Celsius)175.0
Connection TypeCrimp
Connection Width (Metric)4.826
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)1.34
Minimum Conductor Size (Metric)21.2 mm²
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)4 AWG
Maximum Conductor Size (Metric)21.2
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.68
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Barrel StyleBrazed
UL File NumberE23438
Terminal StyleStandard
Ring TypeStandard
Maximum Conductor Size (Imperial)4 AWG
Overall Width (Imperial) UOMin
Terminal TypeRing
