3M Products & Supplies

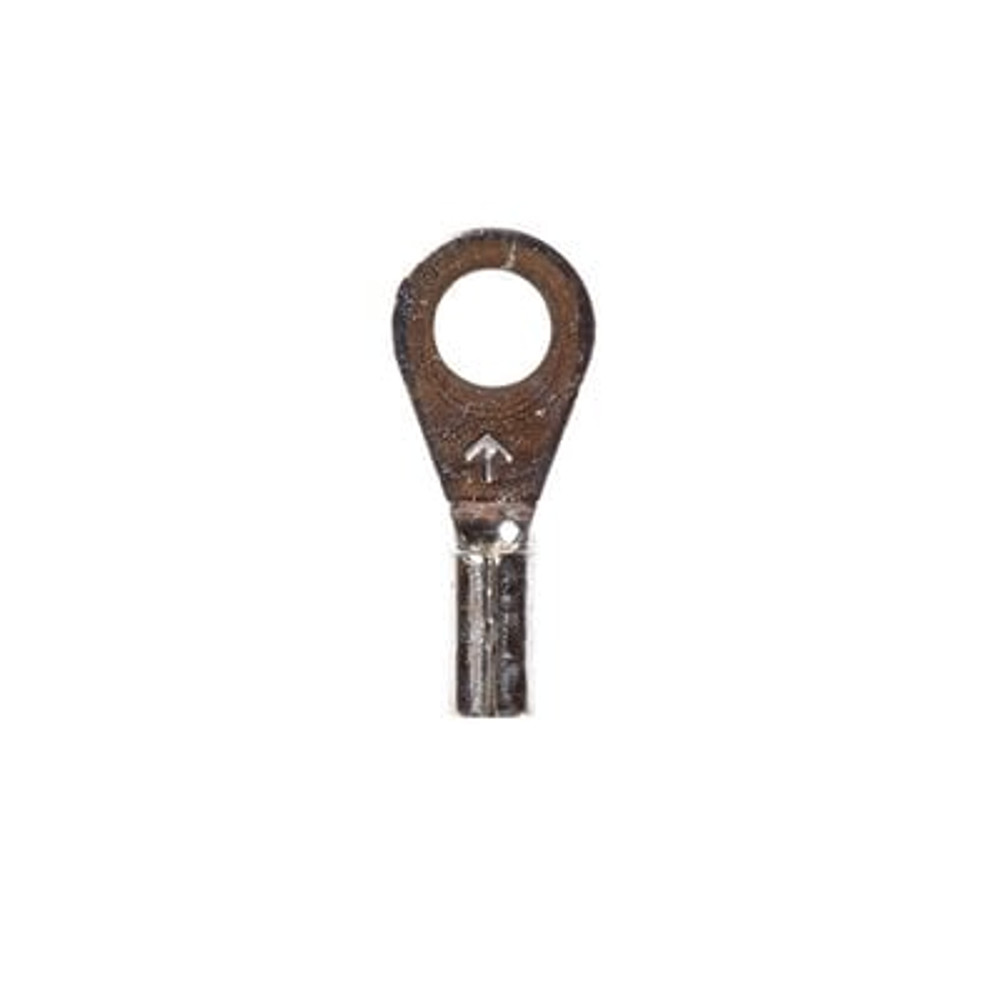

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, MU18-8RLX, standard-style ring tongue fits around the stud, 500/Case - 7010351316

Sold As: 500-Pack
SKU: 7010351316
MPN: 7010351316
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590376
3M ID: 80611466832
5 Digit UPC: 59037
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial)0.164
UL File NumberE23438
Connection Width (Metric)4.166
Terminal StyleStandard
Terminal TypeRing
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Overall Length (Imperial)0.74
Solution forWireless Network: Infrastructure Accessories
Maximum Operating Temperature (Celsius)105.0
Ring TypeStandard
Barrel StyleButted
Insulation MaterialNon-insulated
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)0.823
Overall Width (Imperial)0.31
