3M Products & Supplies

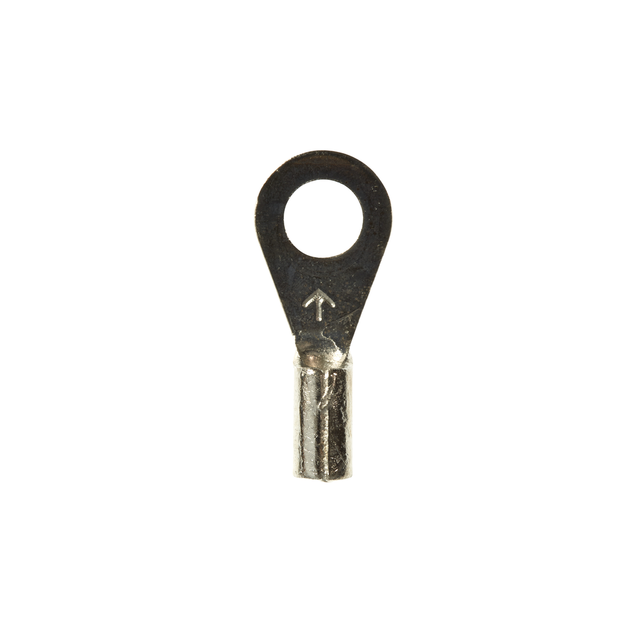

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, MU14-8RLX, standard-style ring tongue fits around the stud, 500/Case - 7010398241

Sold As: 500-Pack
SKU: 7010398241
MPN: 7010398241
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128590386
3M ID: 80611466840
5 Digit UPC: 59038
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.164
Connection Width (Metric) UOMmm
Terminal TypeRing
Maximum Conductor Size (Imperial)14 AWG
Ring TypeStandard
Connection Width (Metric)4.166
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Imperial)16 AWG
Insulation MaterialNon-insulated
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)0.74
Overall Width (Imperial)0.25
Connection Width (Imperial) UOMin
Overall Width (Imperial) UOMin
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Solution forWireless Network: Infrastructure Accessories
