3M Products & Supplies

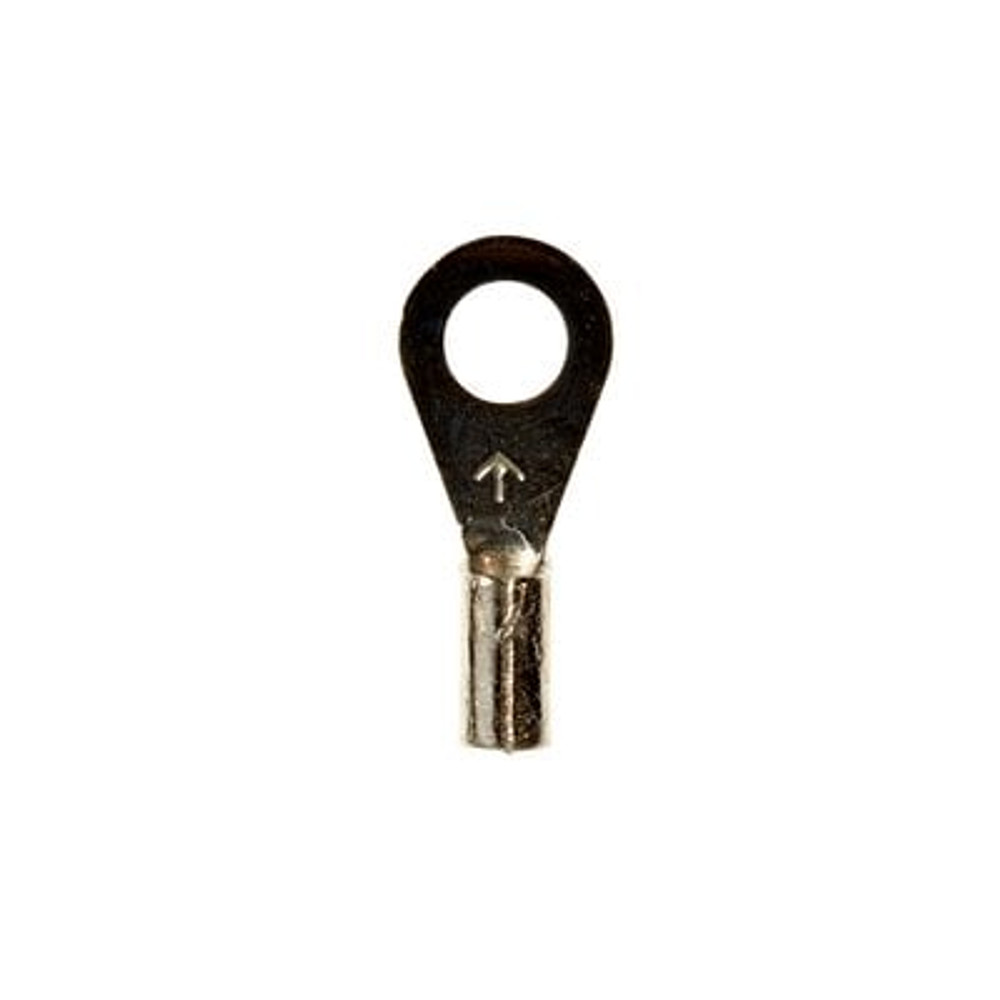

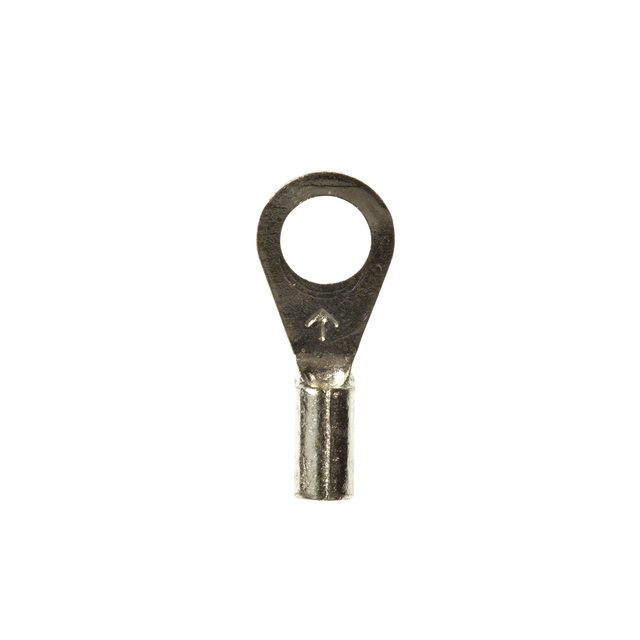

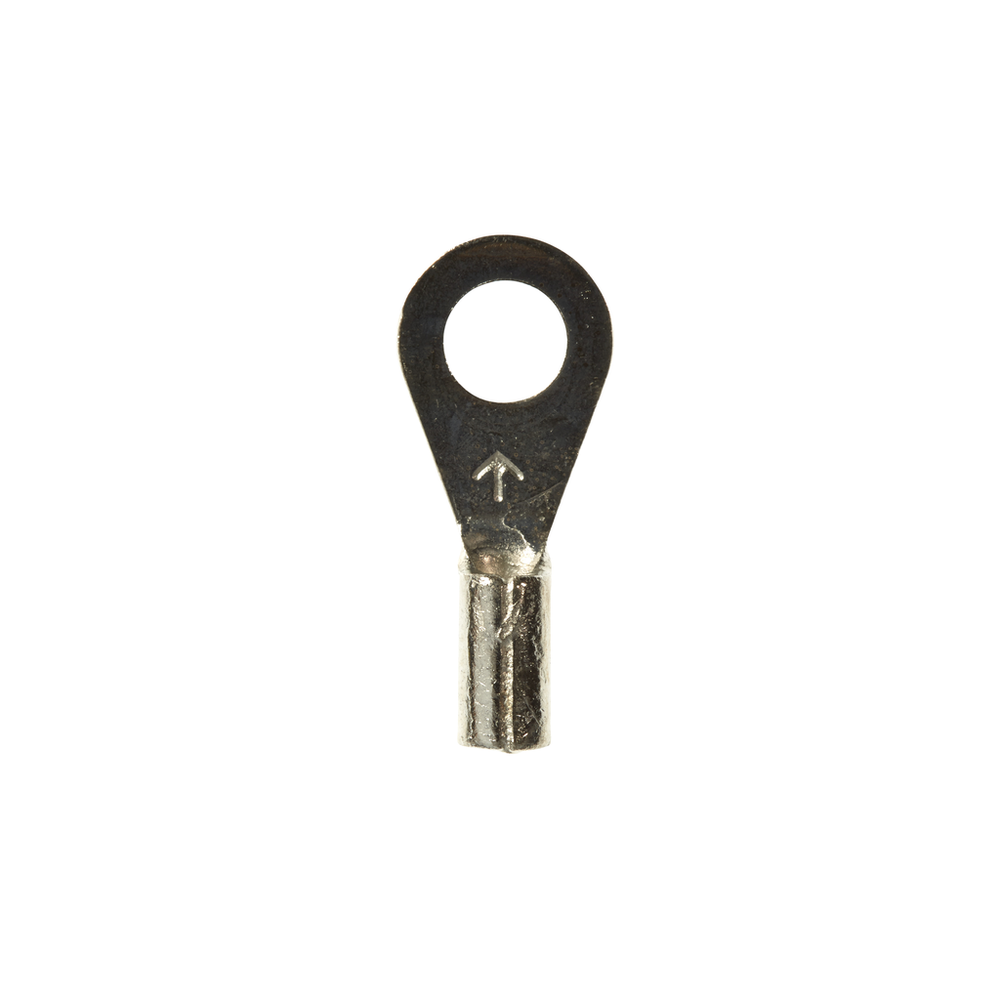

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, M18-8R/LX, standard-style ring tongue fits around the stud, 500/Case - 7100165232

Sold As: 500-Pack
SKU: 7100165232
MPN: 7100165232
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128586560
3M ID: 80611458011
5 Digit UPC: 58656
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Barrel StyleBrazed
Overall Width (Imperial)0.31
Ring TypeStandard
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Imperial)0.164
Barrel Length (Imperial)0.25 Inch
Connection TypeCrimp
Minimum Conductor Size (Metric)0.326 mm²
Maximum Conductor Size (Metric)0.823
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.74
Insulation MaterialNon-insulated
Terminal StyleStandard
Overall Length (Imperial) UOMin
Connection Width (Metric)4.166
Terminal TypeRing
UL File NumberE23438
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)175.0
Maximum Operating Temperature (Celsius) UOMDegree
