3M Products & Supplies

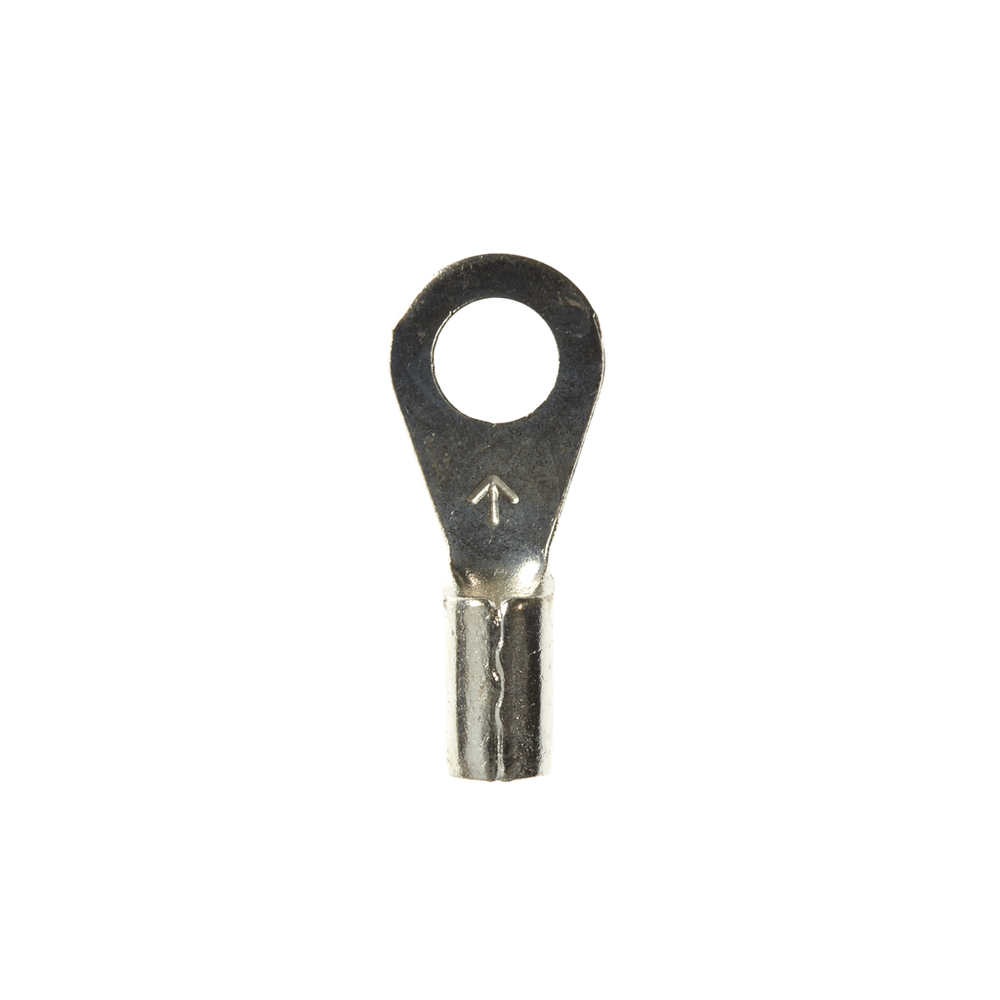

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, M14-8R/LX, standard-style ring tongue fits around the stud, 500/Case - 7100165243

Sold As: 500-Pack
SKU: 7100165243
MPN: 7100165243
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128587102
3M ID: 80611458557
5 Digit UPC: 58710
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Terminal StyleStandard
Maximum Operating Temperature (Celsius)175.0
Connection TypeCrimp
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.31 mm²
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial) UOMin
UL File NumberE23438
Connection Width (Metric)4.166
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial)0.74
Overall Width (Imperial)0.31
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Terminal TypeRing
Ring TypeStandard
Barrel StyleBrazed
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial)0.164
