3M Products & Supplies

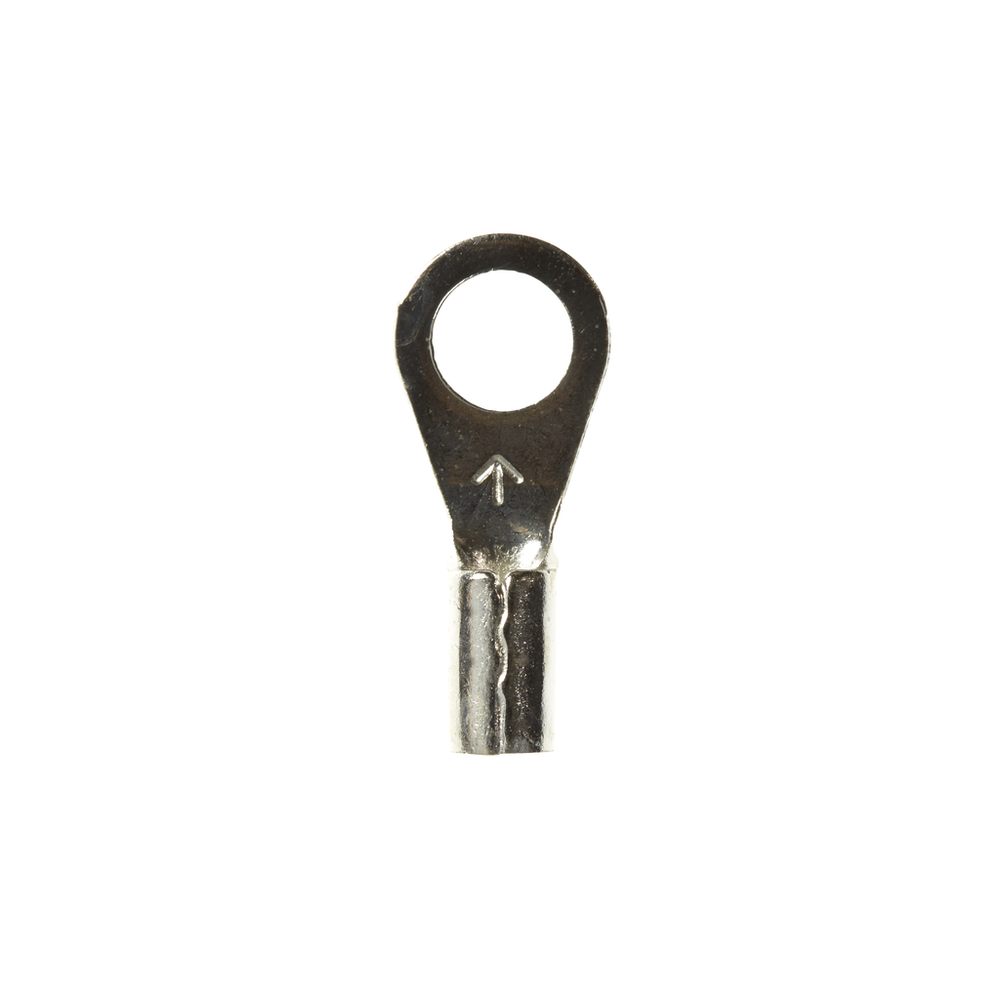

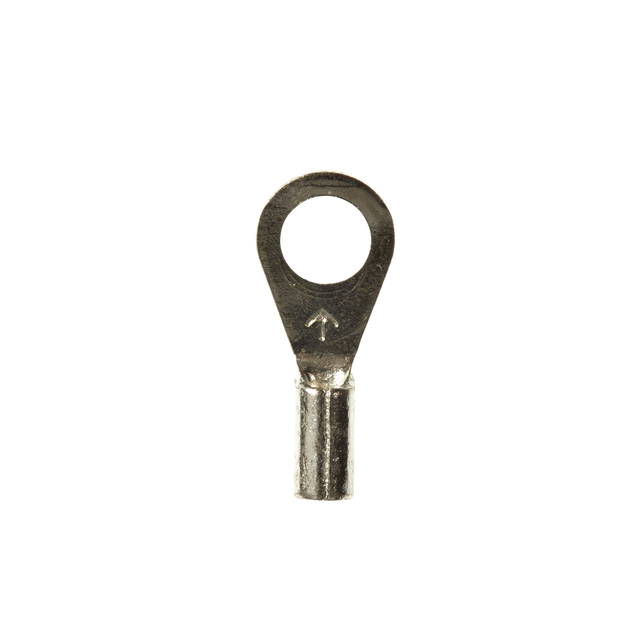

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, M14-10R/LX, standard-style ring tongue fits around the stud, 1/Case - 7100041137

Sold As: 100-Pack
SKU: 7100041137
MPN: 7100041137
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128586594
3M ID: 80611458045
5 Digit UPC: 58659
$57.09 ($0.57 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.31
Overall Length (Imperial)0.74
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)18.796
Overall Width (Imperial) UOMin
Terminal TypeRing
Insulation MaterialNon-insulated
Connection TypeCrimp
Terminal StyleStandard
Overall Width (Metric) UOMmm
Product ColorMetal
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Connection Width (Metric)4.826
Ring TypeStandard
UL File NumberE23438
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08
Minimum Conductor Size (Metric)1.31 mm²
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric) UOMmm
Barrel StyleBrazed
Overall Width (Metric)7.874
Connection Width (Imperial)0.19
Maximum Operating Temperature (Celsius)175.0
