3M Products & Supplies

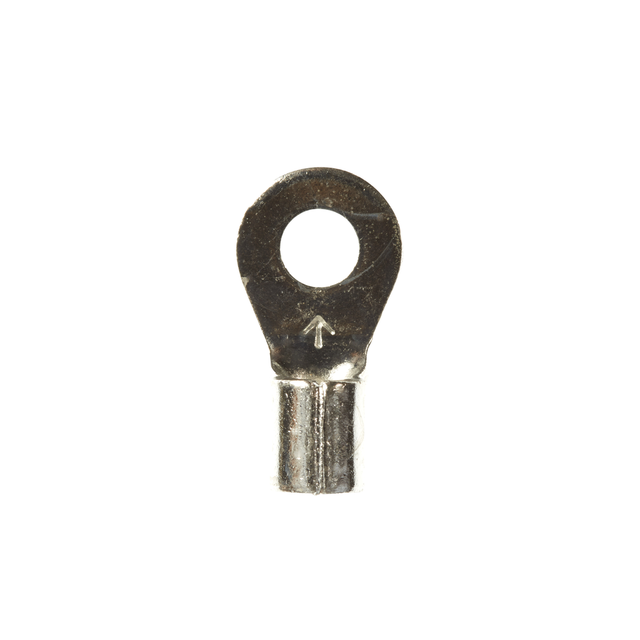

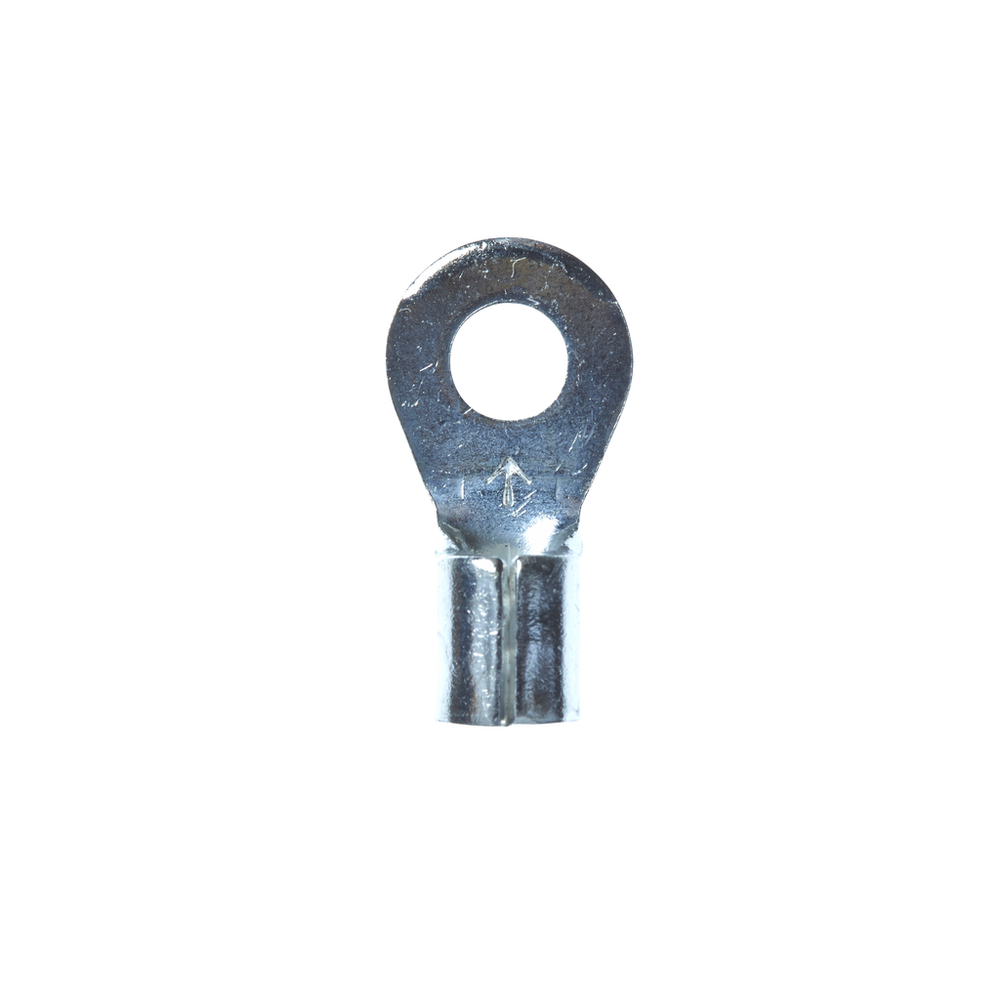

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, MU10-8RX, standard-style ring tongue fits around the stud, 500/Case - 7010320793

Sold As: 500-Pack
SKU: 7010320793
MPN: 7010320793
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590390
3M ID: 80611466857
5 Digit UPC: 59039
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Packaging100 per bottle
Stud Size#8
Solution forWireless Network: Infrastructure Accessories
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Stud Diameter (Imperial) UOMin
Dimension E0.54 Inch
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
Ring TypeStandard
Overall Width (Imperial)0.38
Maximum Conductor Size (Metric)5.26
Terminal StyleStandard
Minimum Conductor Size (Metric)3.31 mm²
Minimum Stud Diameter (Metric)4.0
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial) UOMin
Units per Case500.0
Clearance (C)0.29 Inch
Overall Length (Imperial) UOMin
UL File NumberE23438
Terminal TypeRing
Maximum Conductor Size (Imperial)10 AWG
Minimum Stud Diameter (Metric) UOMmm
Overall Length (Imperial)0.73
Insulation MaterialNon-insulated
