3M Products & Supplies

3M™ Scotchlok™ Ring Vinyl Insulated, 100/bottle, MVU14-10RX, standard-style ring tongue fits around the stud, 500/Case - 7000133366

Sold As: 100-Pack
SKU: 7000133366
MPN: 7000133366
For an accurate lead time please contact us
UPC: 00051128588192
3M ID: 80611464654
5 Digit UPC: 58819
$31.61 ($0.32 / Count)
Hurry up! Current stock:

Product Description

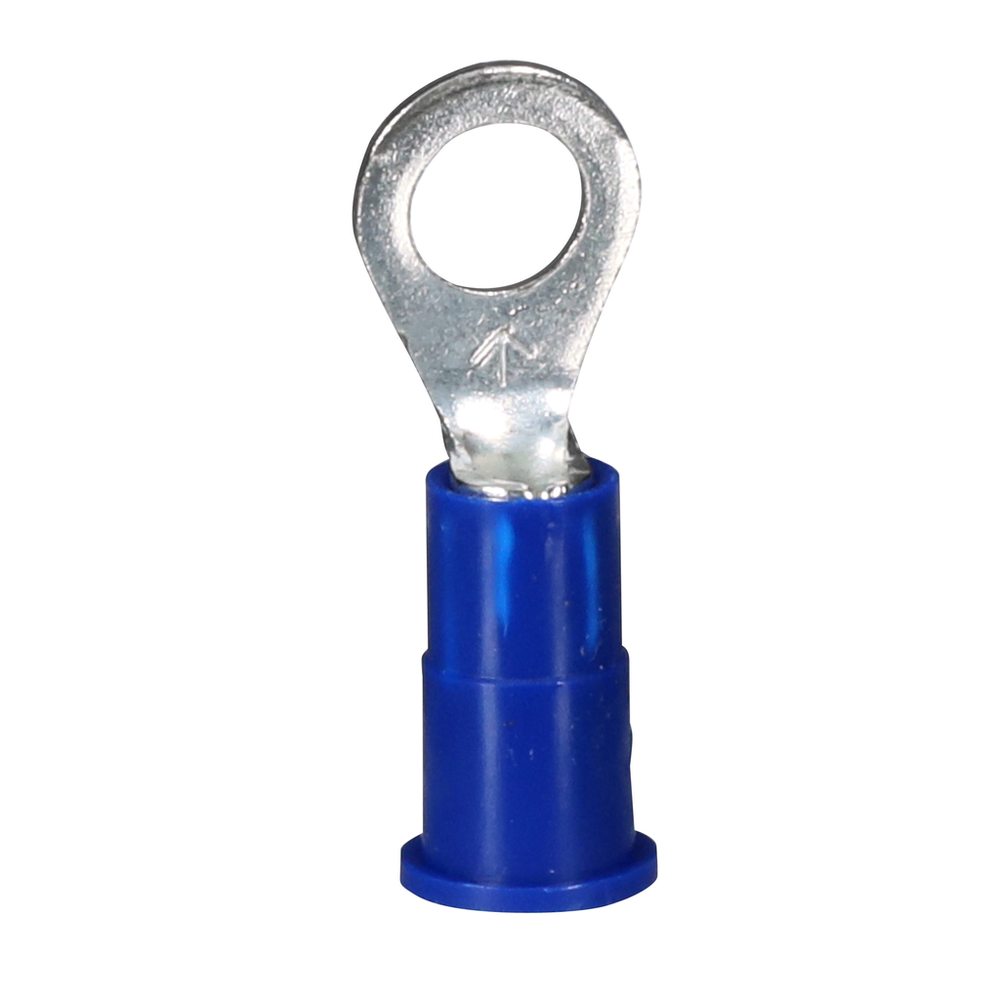

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

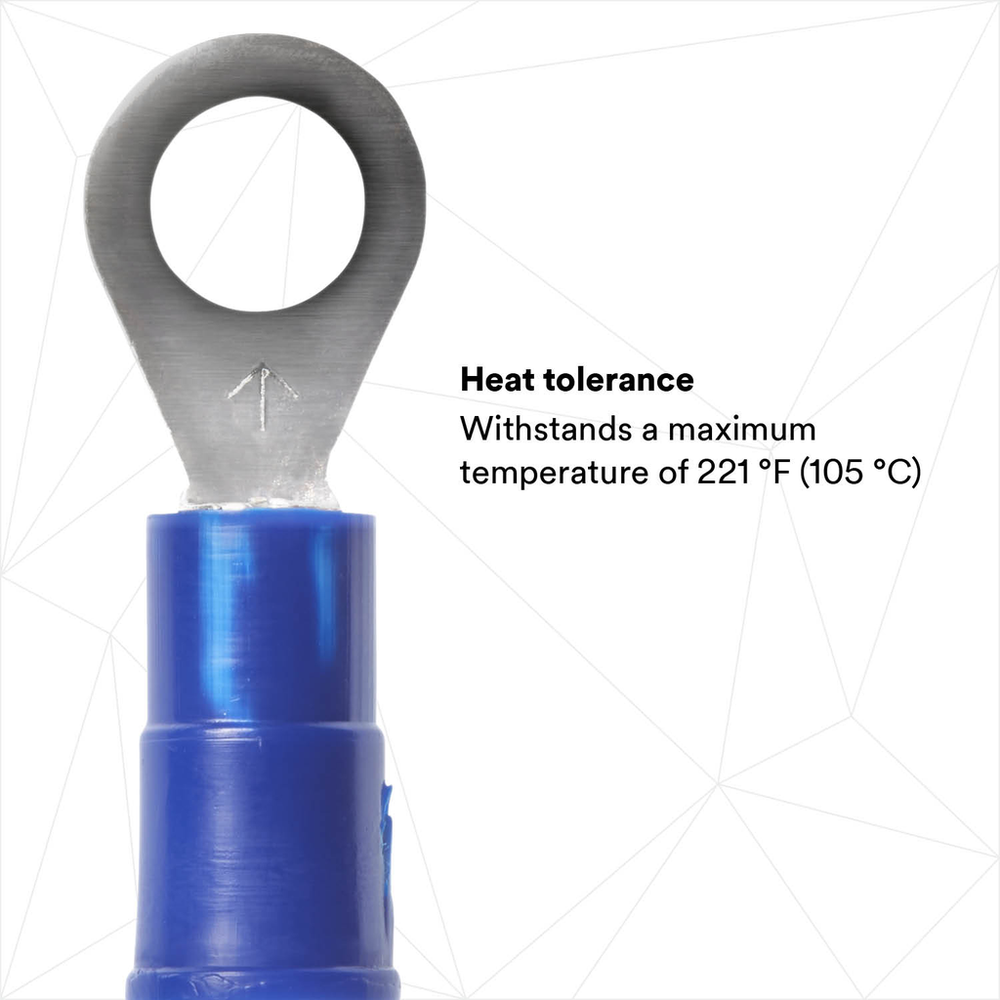

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States

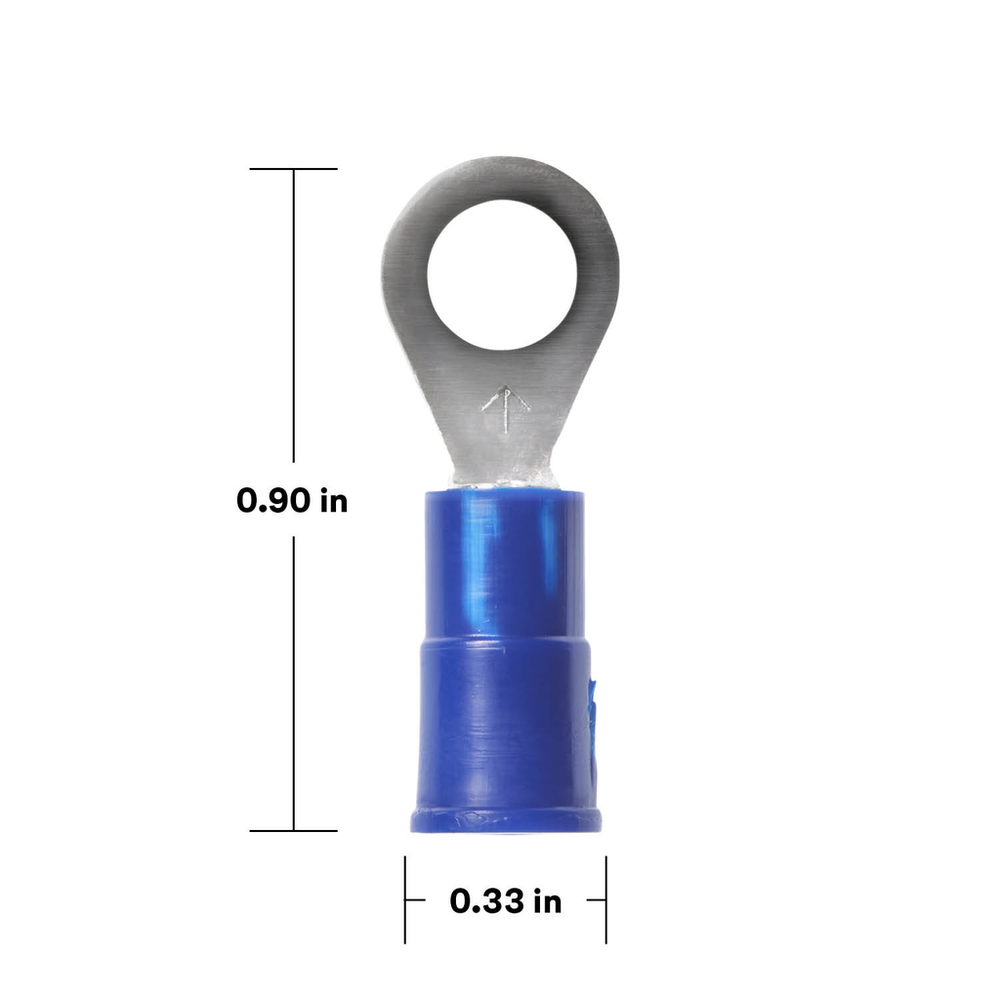

Overall Length (Imperial)0.9
Minimum Stud Diameter (Metric) UOMmm
Connection Width (Imperial)0.19
Connection Width (Imperial) UOMin
Connection Width (Metric)4.826
Stud Sizes#10
Overall Width (Imperial)0.33
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Overall Width (Metric)8.38
Terminal TypeRing
Connection Width (Metric) UOMmm
Overall Width (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
Connection TypeCrimp
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Metric)22.86
Product ColorBlue

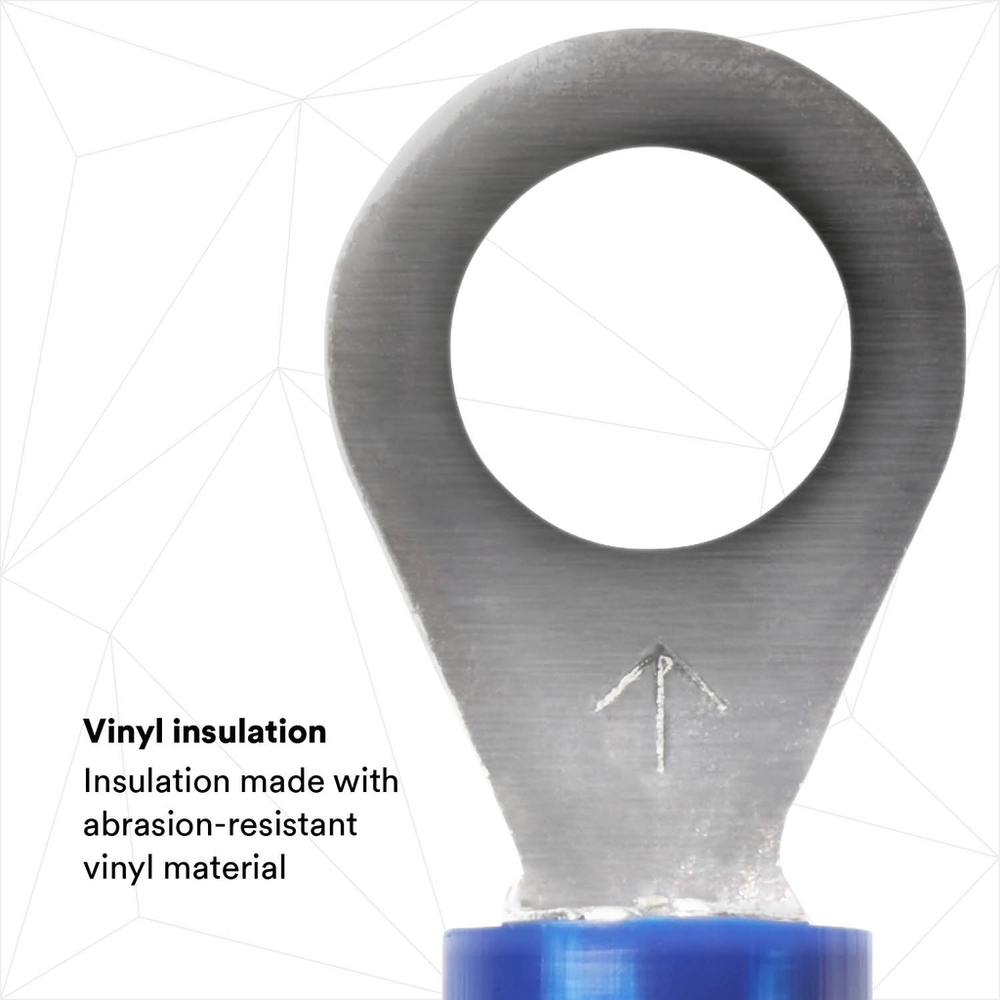

Insulation MaterialVinyl
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMmm
Minimum Stud Diameter (Metric)5.0
Overall Length (Imperial) UOMin
