3M Products & Supplies

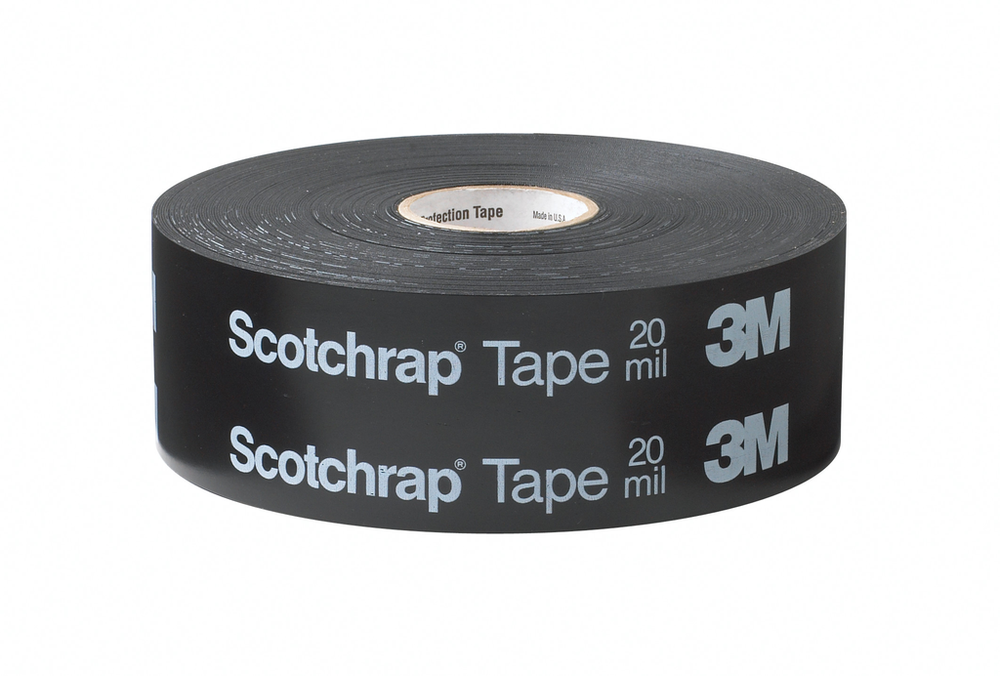

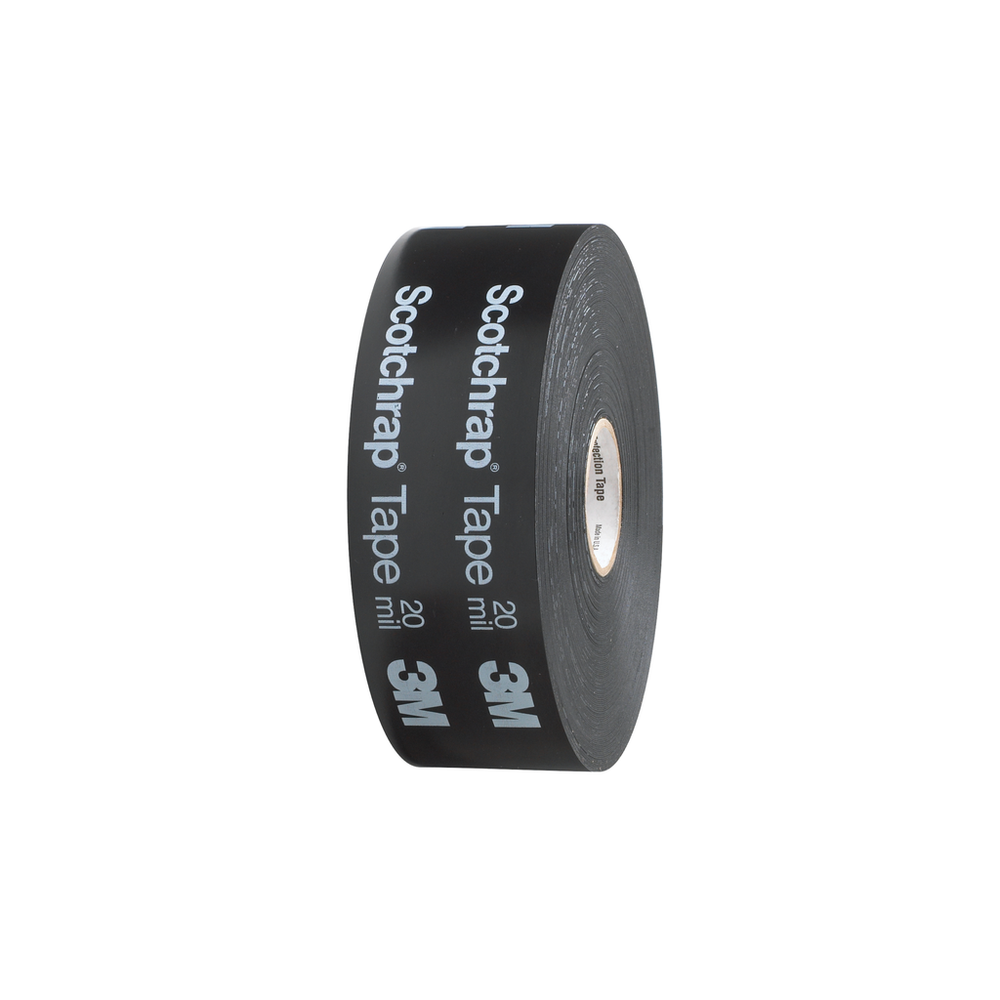

3M™ Scotchrap™ Vinyl Corrosion Protection Tape 51, 4 in x 100 ft, Printed, Black, 4 rolls/Case - 7000043017

Sold As: 4-Pack
SKU: 7000043017
MPN: 7000043017
For an accurate lead time please contact us
UPC: 00054007428046
3M ID: 80610927743
5 Digit UPC: 42804
$474.77 ($118.69 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchrap™ Tape 51 is a premium grade, 20 mil thick, all weather tape with PVC backing. It withstands temperatures of 55 to 176 °F ( 48 to 80 °C) and resists abrasion and punctures. This printed, high tack, adhesive tape is corrosion and impact resistant, making it suitable for use on metal piping systems, conduits and fittings both above and below ground.

Features

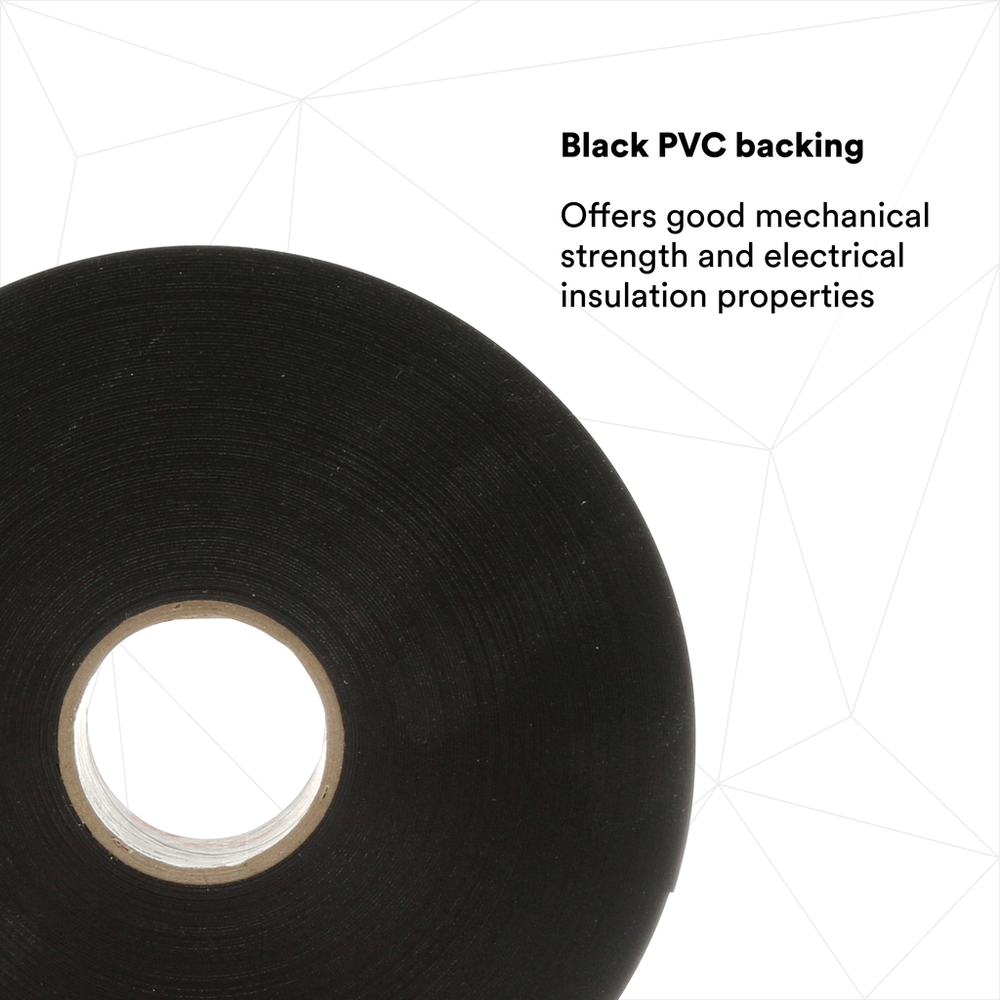

  • Black PVC backing offers good mechanical strength and electrical insulation properties
  • Pressure-sensitive, rubber adhesive provides optimized adherence

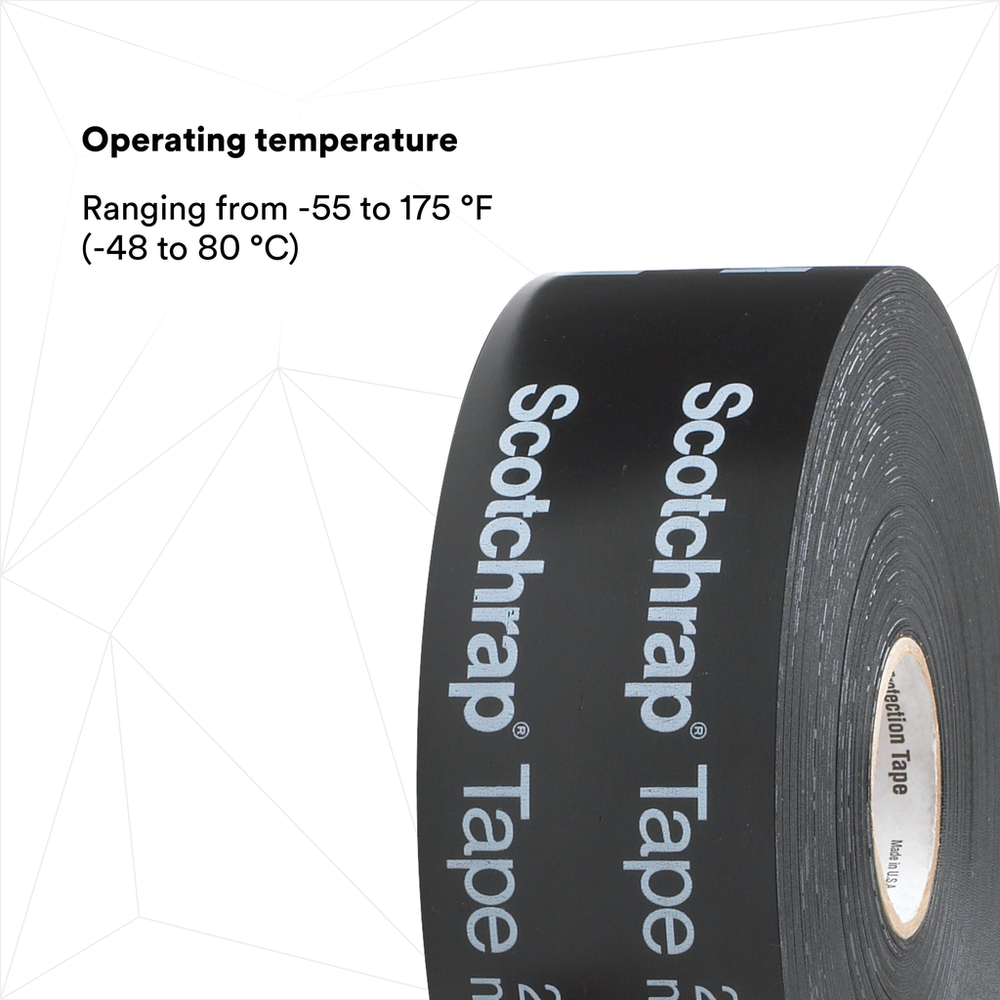

  • Withstands a wide temperature range of -55 to 176 °F (-48 to 80 °C)

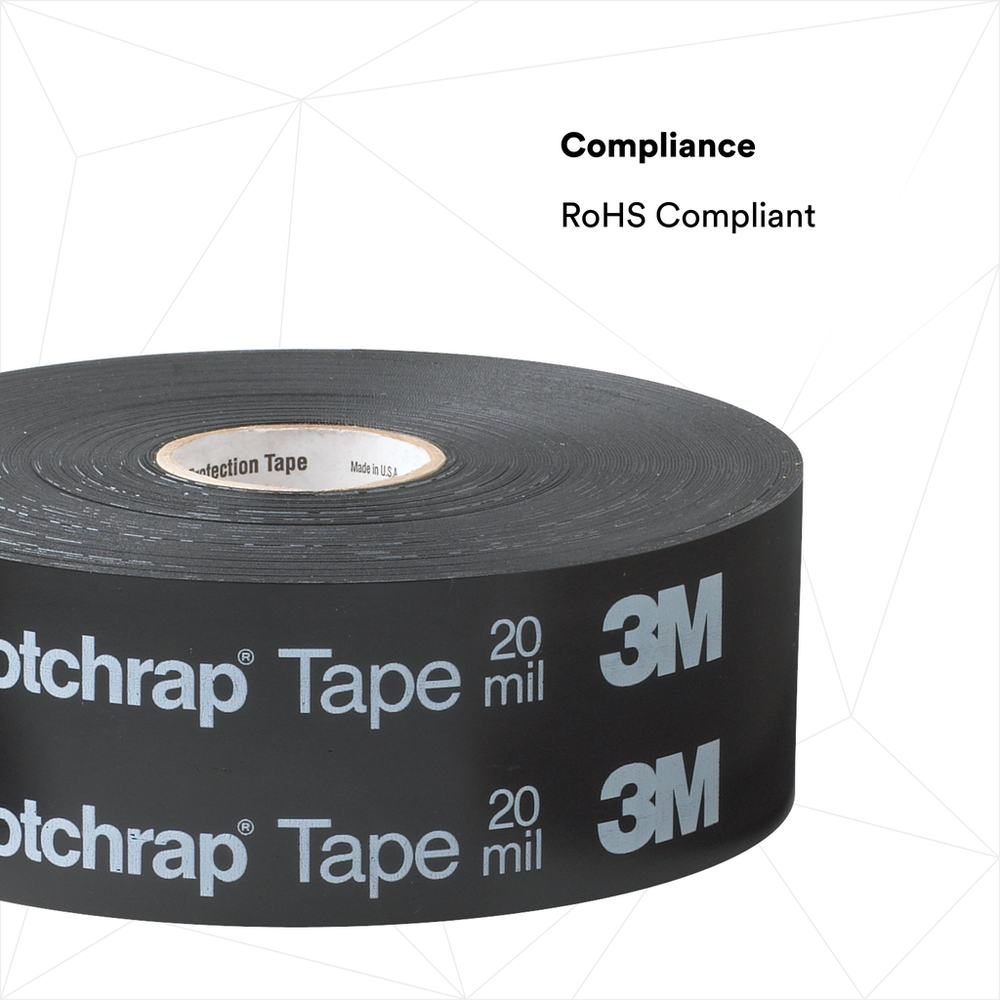

  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Electrolytic Corrosion Factor0.9
Backing Thickness (Metric) UOMmm
Overall Length (Imperial) UOMft
Maximum Installation Temperature (Celsius)65.6
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Chemical ResistantYes
UV ResistantYes
Overall Width (Metric)101.6
Performance LevelProfessional Grade
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)100.0
Backing Thickness (Imperial)19.7
Minimum Operating Temperature (Celsius)-48.0
Tape TypeCorrosion Protection
Product ColorBlack
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Installation Temperature (Fahrenheit)150.0
Specifications MetRoHS 2011/65/EU
Adhesion Strength (Metric)21.9
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength20.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)4.0
Total Tape Thickness without Liner (Metric)0.5
Shelf Life UOMYear
ApplicationCorrosion Protection
Overall Length (Metric)30.5
Backing Thickness (Metric)0.5
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-55.0
Adhesive TypeRubber
Overall Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)176.0
Overall Thickness (Metric)0.5
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)20.0
Maximum Installation Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)80.0
Maximum Installation Temperature (Celsius) UOMDegree
Overall Thickness (Imperial)0.02
Elongation at Break150 %
Overall Thickness (Imperial) UOMin
Backing Thickness (Imperial) UOMmil
