3M Products & Supplies

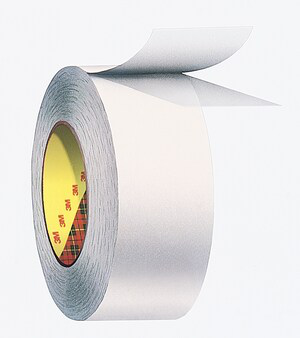

3M™ Silicone Acrylic Differential Double Coated Tape 9699, Clear, 36 in x 60 yd, 2 mil, 1 roll per case - 7010292819

SKU: 7010292819
MPN: 7010292819
Lead Time: 152 working days.
UPC: 051128995211
3M ID: 70006770914
5 Digit UPC: 99521
$1,716.33 each
Hurry up! Current stock:

Product Description

3M™ Differential Double Coated Silicone Tape 9699 features a firm, silicone pressure sensitive adhesive coated on one side of a polyester film (PET) carrier and a high performance acrylic pressure sensitive adhesive coated on the other side.

Features

  • Delivers initial tack and adhesion
  • Adheres without priming on silicone rubbers, foams and polypropylene
  • Double linered, 58# PCK on the acrylic side; 2 mil polyester on the silicone adhesive side
  • Provides dimensional stability and improved handling for ease of die-cutting and lamination
  • Holds with high shear and good peel strength

Downloads

Specifications

Face Side Adhesive Thickness (Metric)0.04 mm
Adhesive TypeAcrylic
Product FormRoll
Backing (Carrier) MaterialPET
Secondary Liner ColorTransparent
Back Side Adhesive Thickness (Metric)en-US: 0.05 mm
Product Number9699
Substrate 1Foam (Silicone) - Rubber (Silicone) - Silicone
Back Side Adhesive TypeSilicone
Product ColorTransparent
Primary Liner Thickness (Imperial)2 mil
Substrate 2Rubber (Silicone) - Foam (Silicone) - Silicone
Face Side Adhesive Type350 High Performance Acrylic
Overall Width (Metric)914.4 mm
Overall Width (Imperial)36 in
Secondary Liner Thickness (Metric)0.09 mm
Backing (Carrier) Thickness (Imperial)1 mil
Back Side Adhesive Thickness (Imperial)en-US: 2 mil
Secondary Liner Thickness (Imperial)3.5 none
Primary LinerPolycoated Kraft Paper
Overall Length (Imperial)60 yd
Backing MaterialPolyester Film (PET)
Primary Liner ColorWhite
Overall Length (Metric)54.86 m
Face Side Adhesive Thickness (Imperial)1.6 mil
Primary Liner Thickness (Metric)0.05 mm
Backing (Carrier) Thickness (Metric)0.025 mm
Color FamilyTransparent
