3M Products & Supplies

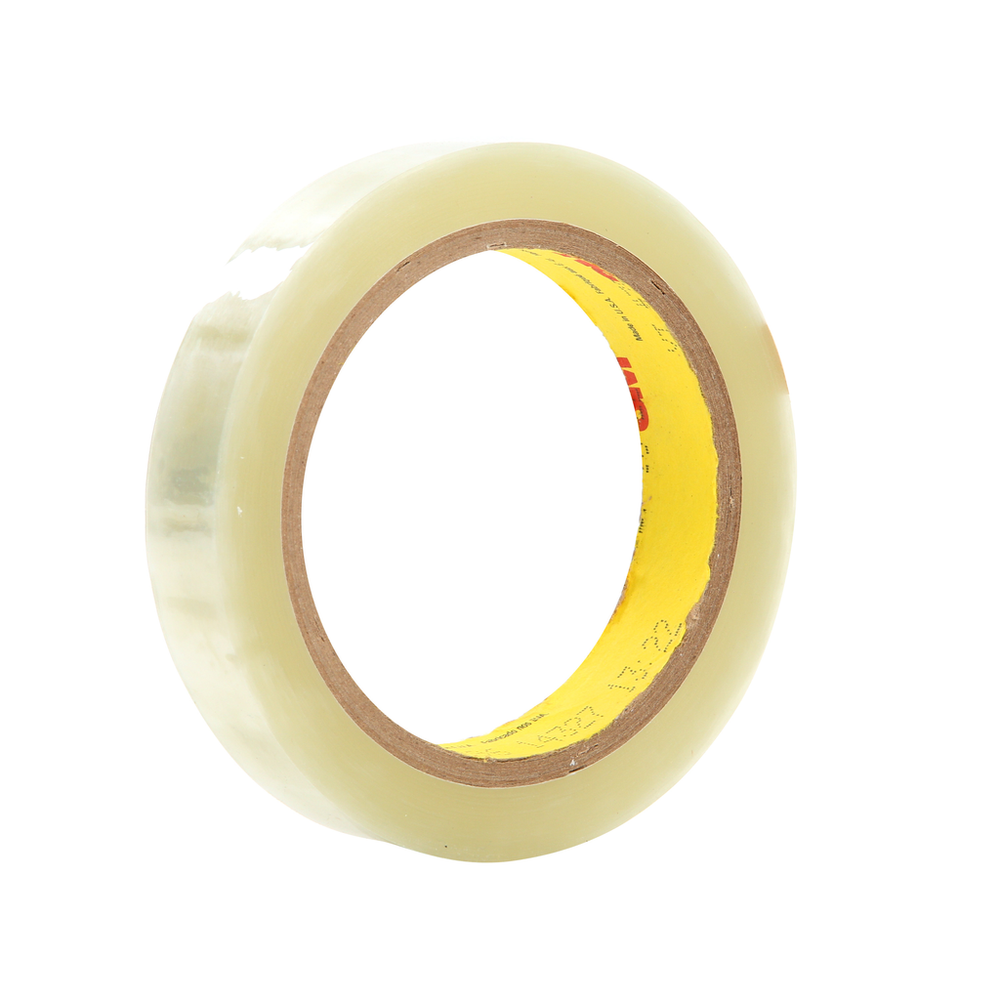

3M™ Super Bond™ Film Tape 396, Transparent, 1/2 in x 36 yd, 4.1 mil, 72 Roll/Case - 7000048788

Sold As: 72-Pack
SKU: 7000048788
MPN: 7000048788
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200393235
3M ID: 70006241239
5 Digit UPC: 39323
$937.95 ($13.03 / Count)
Hurry up! Current stock:

Product Description

3M™ Super Bond Film Tape 396 offers the thin caliper tensile strength of polyester and high immediate holding strength of rubber adhesive for creating butt splices on low surface energy materials such as polyethylene and other difficult-to-adhere-to surfaces. Often referred to as a single-sided adhesive splicing and core starting tape.

Features

  • Ideal for use on polyethylene and other low surface energy materials
  • Often used in butt splicing and core starting applications
  • Polyester backing offers abrasion, chemical and thermal resistance
  • Good temperature resistance from 40°F to 200°F
  • Rubber resin adhesive provides aggressive grab to irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric)153.0
Overall Width (Metric) UOMcm
Overall Height (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)40.0
Total Tape Thickness without Liner (Metric)0.1
Back Side Adhesive Thickness (Imperial) UOMmil
Backing Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyester
Product ColorTransparent
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Overall Width (Metric)1.3
Adhesion Strength (Imperial)140.0
Overall Thickness (Imperial) UOMmil
Units per Case72.0
Minimum Operating Temperature (Celsius)4.0
ApplicationGeneral Industrial
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Height (Metric)0.1
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial)43.0
Overall Thickness (Imperial)4.1
IndustriesAppliance, Automotive, General Industrial, Military and Government, Print, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Imperial)1.7
Overall Length (Metric)32.9
Shelf Life in Months (From Date of Manufacture)18.0
Adhesion Strength (Metric) UOMN/100mm
Adhesive TypeRubber
Back Side Adhesive Thickness (Imperial)2.4
Backing (Carrier) Thickness (Metric)0.04
Product TypeTape
Tensile Strength (Imperial) UOMlb/in
Liner ColorTransparent
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Imperial)1.7
Overall Height (Imperial) UOMmil
Elongation at Break1.4%
Backing Thickness (Metric)0.04
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)93.0
Units per Case UOMRoll
Product FormRoll
Total Tape Thickness without Liner (Imperial)4.1
Back Side Adhesive Thickness (Metric) UOMmm
Liner MaterialRubber Resin
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Number of Adhesive SidesSingle-sided
Back Side Adhesive Thickness (Metric)0.06
Tensile Strength (Metric)75.3
Maximum Operating Temperature (Fahrenheit)200.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Height (Imperial)4.1
Overall Length (Metric) UOMm
Backing Thickness (Metric) UOMmm
Overall Width (Imperial)0.5
