3M Products & Supplies

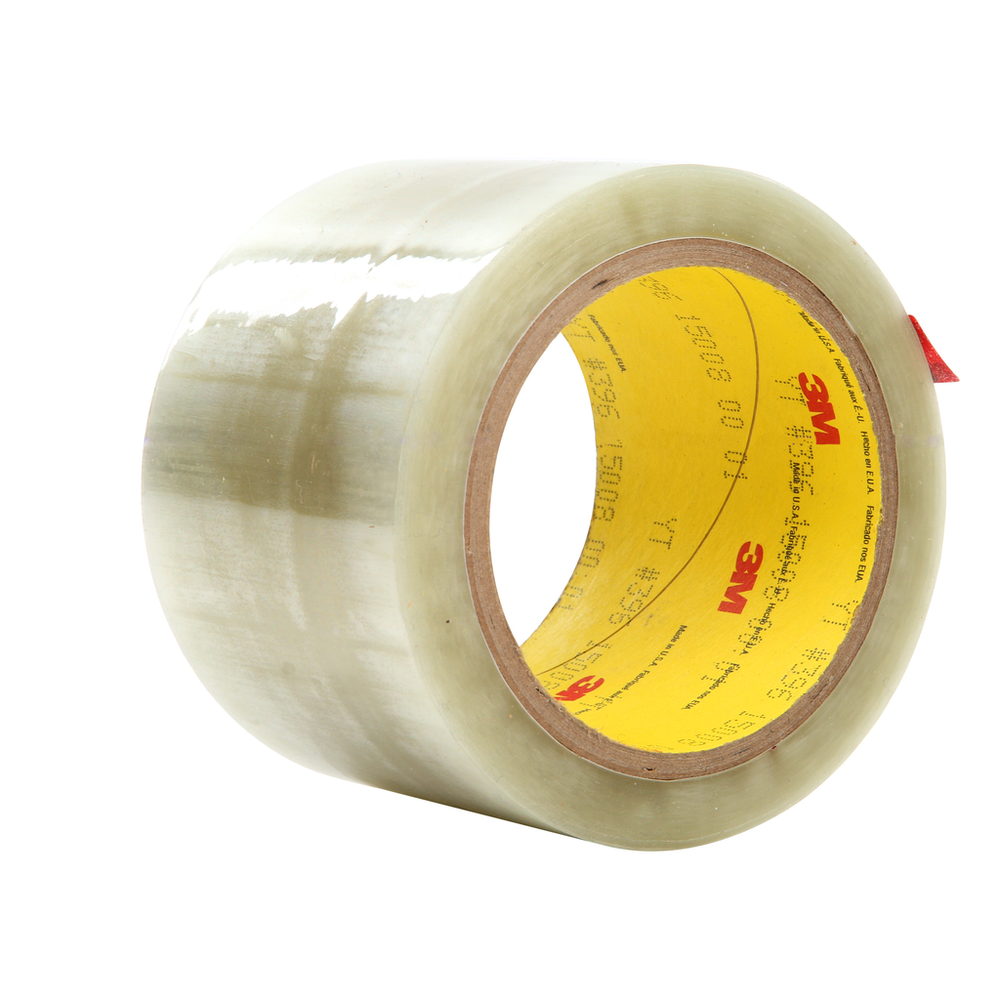

3M™ Super Bond™ Film Tape 396, Transparent, 4 in x 36 yd, 4.1 mil, 8 Roll/Case - 7000148368

Sold As: 8-Pack
SKU: 7000148368
MPN: 7000148368
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200190889
3M ID: 70006076585
5 Digit UPC: 19088
$648.79 ($81.10 / Count)
Hurry up! Current stock:

Product Description

3M™ Super Bond Film Tape 396 offers the thin caliper tensile strength of polyester and high immediate holding strength of rubber adhesive for creating butt splices on low surface energy materials such as polyethylene and other difficult-to-adhere-to surfaces. Often referred to as a single-sided adhesive splicing and core starting tape.

Features

  • Ideal for use on polyethylene and other low surface energy materials
  • Rubber resin adhesive provides aggressive grab to irregular surfaces
  • Good temperature resistance from 40°F to 200°F
  • Often used in butt splicing and core starting applications
  • Polyester backing offers abrasion, chemical and thermal resistance
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Units per Case8.0
Elongation at Break1.4%
IndustriesAppliance, Automotive, General Industrial, Military and Government, Print, Specialty Vehicles, Transportation
Product FormRoll
Overall Length (Metric)32.9
Total Tape Thickness without Liner (Imperial)4.1
Back Side Adhesive Thickness (Imperial)2.4
ApplicationGeneral Industrial
Overall Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)40.0
Number of Adhesive SidesSingle-sided
Liner MaterialRubber Resin
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Adhesion Strength (Metric)153.0
Overall Width (Imperial)4.0
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)93.0
Adhesive TypeRubber
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Product TypeTape
Maximum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial)4.1
Total Tape Thickness without Liner (Metric)0.1
Adhesion Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMcm
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Imperial)1.7
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Imperial) UOMmil
Tensile Strength (Imperial)43.0
Adhesion Strength (Imperial)140.0
Backing (Carrier) Thickness (Metric)0.04
Overall Height (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.7
Shelf Life in Months (From Date of Manufacture)18.0
Product ColorTransparent
Backing (Carrier) MaterialPolyester
Liner ColorTransparent
Overall Height (Metric)0.1
Tensile Strength (Metric)75.3
Back Side Adhesive Thickness (Metric)0.06
Units per Case UOMRoll
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)200.0
Overall Width (Metric)10.2
Backing Thickness (Imperial) UOMmil
Overall Height (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric) UOMmm
Backing Thickness (Metric)0.04
Minimum Operating Temperature (Celsius)4.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Overall Height (Imperial)4.1
