3M Products & Supplies

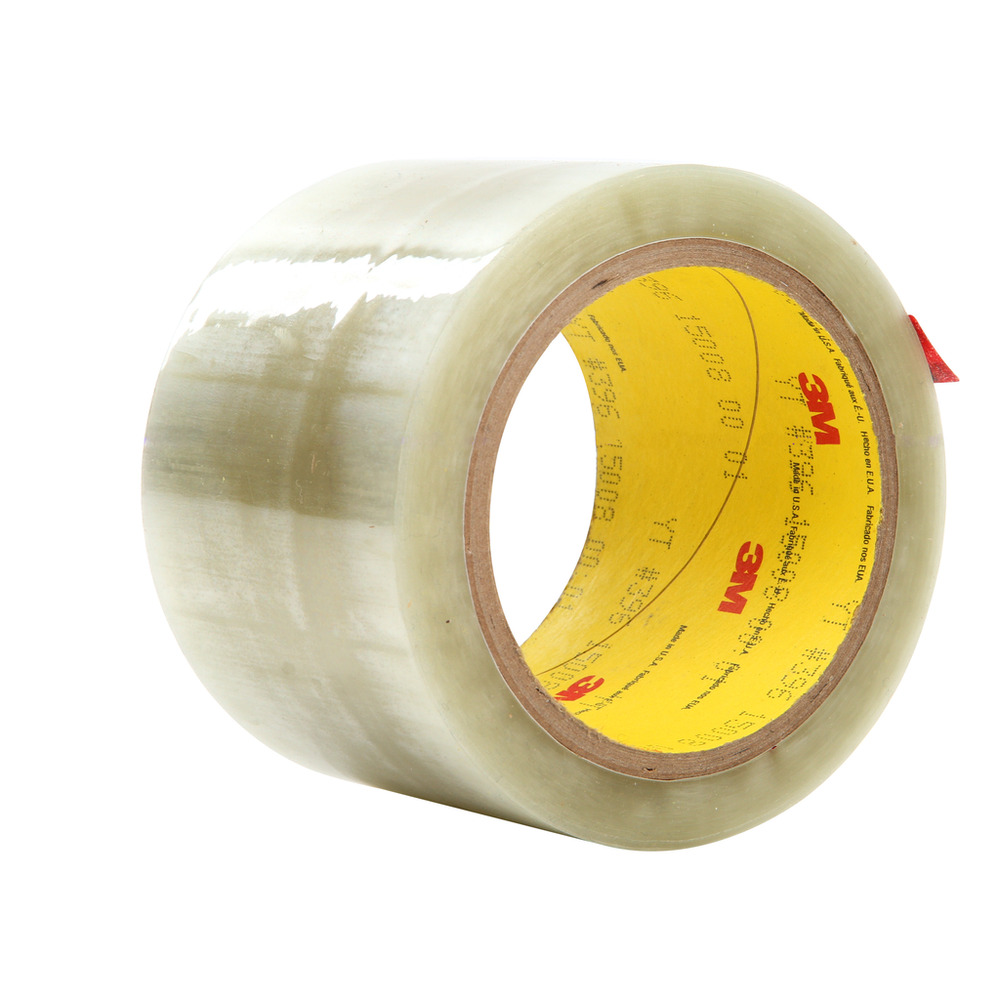

3M™ Super Bond™ Film Tape 396, Transparent, 3 in x 36 yd, 4.1 mil, 12 Roll/Case - 7010372169

Sold As: 12-Pack
SKU: 7010372169
MPN: 7010372169
For an accurate lead time please contact us
UPC: 00021200190872
3M ID: 70006076577
5 Digit UPC: 19087
$729.88 ($60.82 / Count)
Hurry up! Current stock:

Product Description

3M™ Super Bond Film Tape 396 offers the thin caliper tensile strength of polyester and high immediate holding strength of rubber adhesive for creating butt splices on low surface energy materials such as polyethylene and other difficult-to-adhere-to surfaces. Often referred to as a single-sided adhesive splicing and core starting tape.

Features

  • Good temperature resistance from 40°F to 200°F
  • Often used in butt splicing and core starting applications
  • Ideal for use on polyethylene and other low surface energy materials
  • Rubber resin adhesive provides aggressive grab to irregular surfaces
  • Polyester backing offers abrasion, chemical and thermal resistance
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.04
Shelf Life in Months (From Date of Manufacture) UOMMonths
Number of Adhesive SidesSingle-sided
IndustriesAppliance, Automotive, General Industrial, Military and Government, Print, Specialty Vehicles, Transportation
Maximum Operating Temperature (Celsius)93.0
Backing Thickness (Imperial)1.7
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Product FormRoll
Backing Thickness (Metric) UOMmm
Product TypeTape
Backing (Carrier) MaterialPolyester
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)200.0
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)4.1
Backing (Carrier) Thickness (Metric)0.04
Backing Thickness (Metric)0.04
Product ColorTransparent
Backing (Carrier) Thickness (Imperial)1.7
Tensile Strength (Metric)75.3
Minimum Operating Temperature (Celsius)4.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)3.0
Overall Length (Imperial)36.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Total Tape Thickness without Liner (Metric)0.1
ApplicationGeneral Industrial
Shelf Life in Months (From Date of Manufacture)18.0
Overall Thickness (Imperial)4.1
Liner MaterialRubber Resin
Adhesive TypeRubber
Adhesion Strength (Metric) UOMN/100mm
Adhesion Strength (Imperial)140.0
Overall Width (Metric)76.2
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric)32.91
Elongation at Break140%
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)40.0
Units per Case12.0
Adhesion Strength (Metric)153.0
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial)43.0
Liner ColorTransparent
Backing Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case UOMRoll
