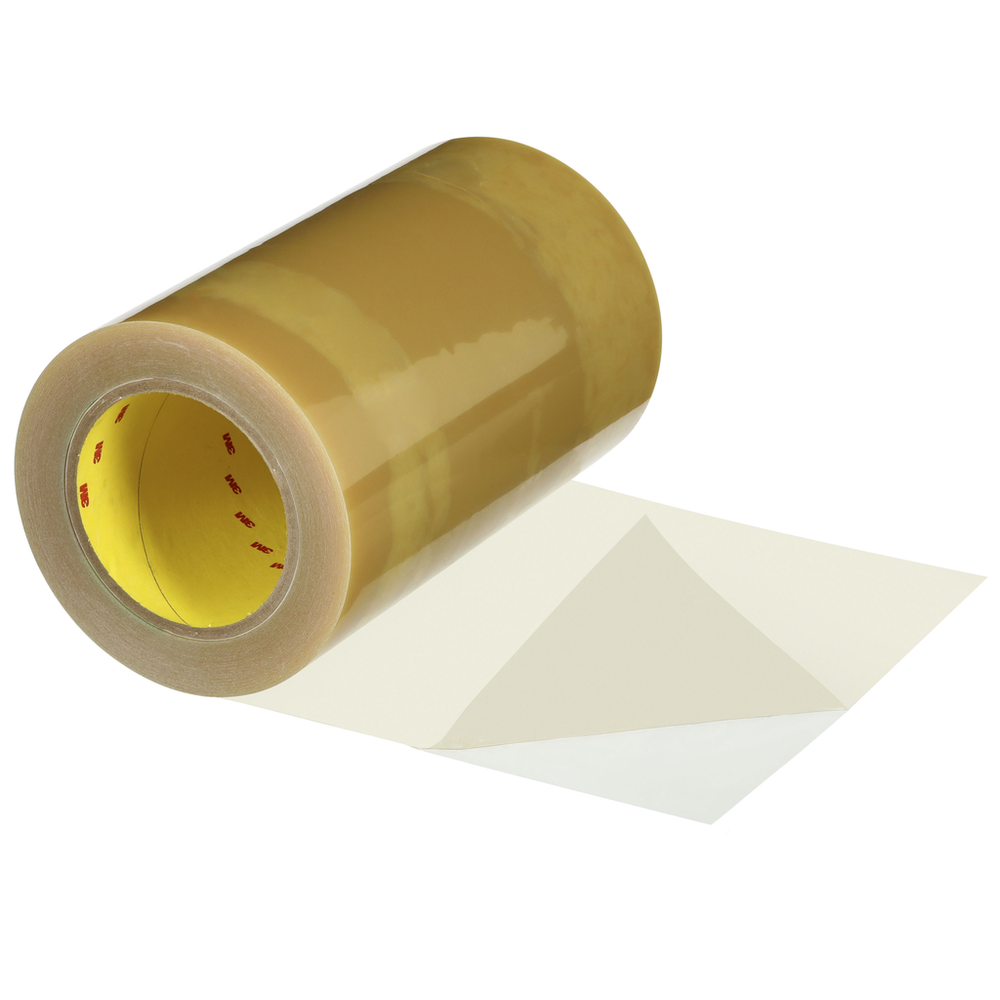

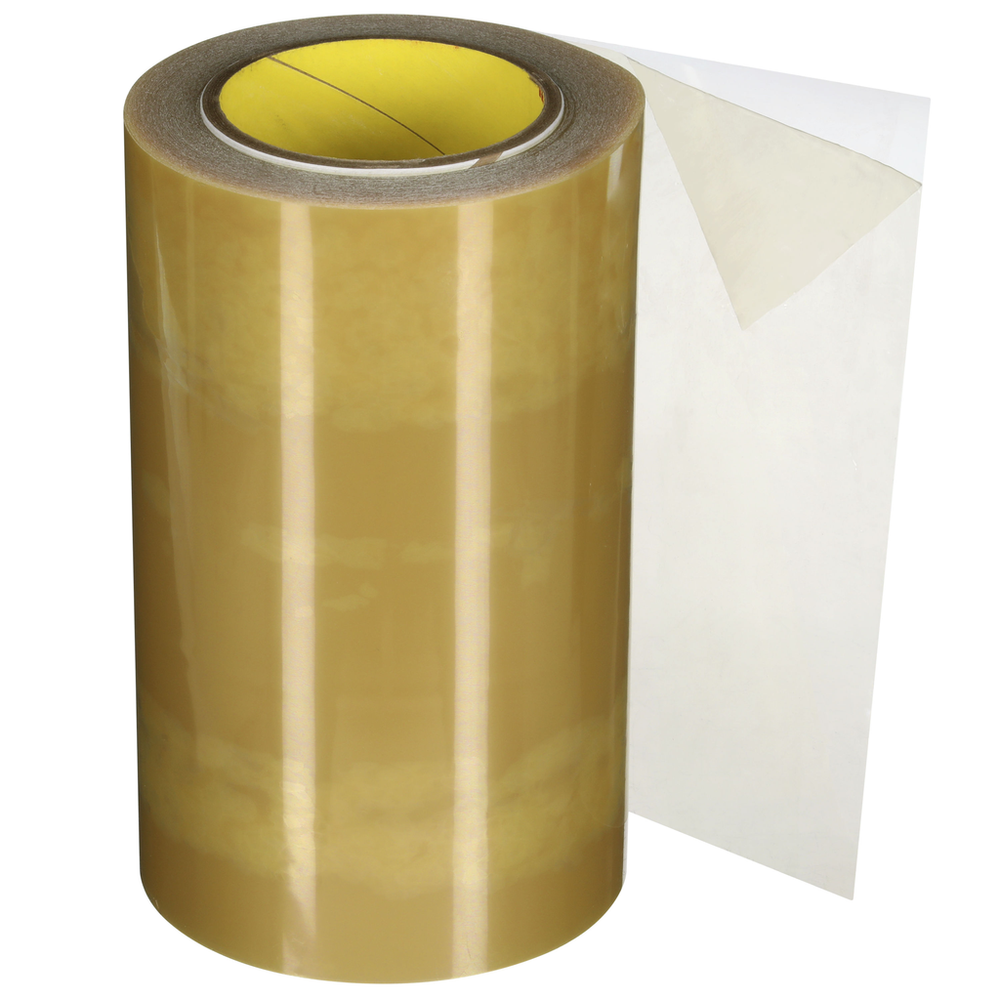

3M™ Thermal Bonding Film 583, 18 in x 60 yds, 1/Case, Bulk - 7000122496

SKU: 7000122496
MPN: 7000122496
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200131417
3M ID: 70002511353
5 Digit UPC: 13141
$508.09 each
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Heat or solvent activation
  • Lower temperature lamination of the nitrile phenolic film range
  • Slight surface tack
  • Flexible
  • Can be die-cut
  • Heat crosslinkable option
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Overall Width (Imperial) UOMin
Overall Width (Imperial)18.0
Backing Thickness (Metric)0.0
Shelf Life UOMMonth
Overall Thickness (Metric)5.0
Density0.0
Curing Temperature (Celsius) UOMDegree
Overall Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Nominal Adhesive Thickness (Metric)0.05
Maximum Operating Temperature (Celsius) UOMDegree
Shear Strength UOMpsi
Nominal Weight (Imperial)0.0
Overall Length (Metric)54.9
Maximum Cure Conditions (Fahrenheit)300.0
Minimum Cure Conditions (Fahrenheit)225.0
Minimum Operating Temperature (Fahrenheit)0.0
Overall Length (Imperial)60.0
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Cure Conditions (Celsius)150.0
IndustriesElectronics, General Industrial, Transportation
Maximum Operating Temperature (Celsius)150.0
Adhesive TypeNitrile Phenolic
Minimum Cure Conditions (Celsius)107.0
Nominal Weight (Metric)0.0
Curing Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Imperial)0.0
Nominal Adhesive Thickness (Imperial)2.0
Overall Width (Metric) UOMmm
ApplicationBonding; Sealing
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Product FormRoll
Product UsageElectronic Components
Overall Thickness (Imperial)0.127
Shear Strength14.0
Product ColorBrown
Overall Width (Metric)457.2
