3M Products & Supplies

3M™ Thermal Bonding Film 583, 9 in x 60 yds, 4/Case, Bulk - 7010334012

Sold As: 4-Pack
SKU: 7010334012
MPN: 7010334012
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200118807
3M ID: 70006043619
5 Digit UPC: 11880
$1,016.16 ($254.04 / Count)
Hurry up! Current stock:

Product Description

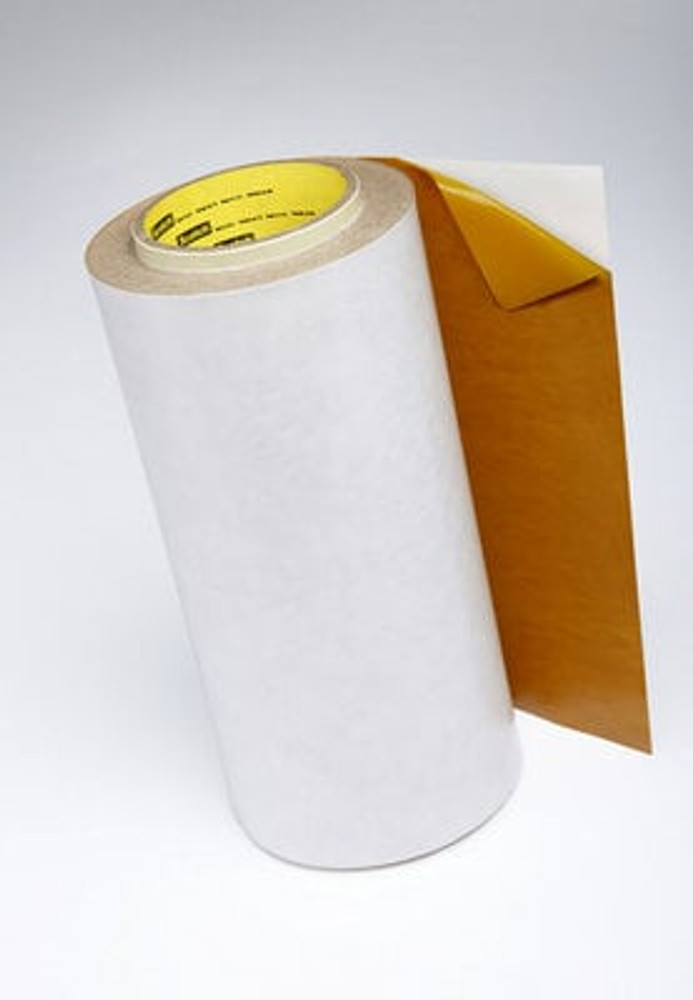

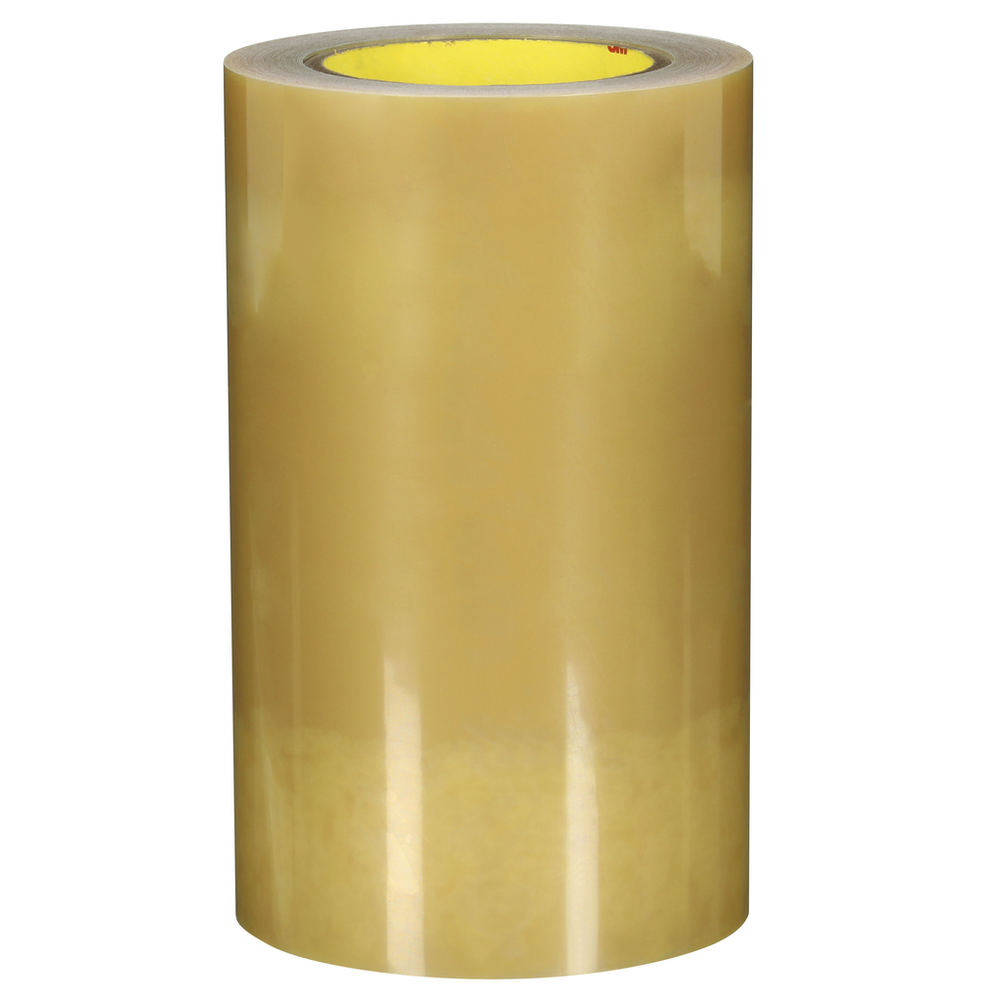

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Heat crosslinkable option
  • Lower temperature lamination of the nitrile phenolic film range
  • Can be die-cut
  • Slight surface tack
  • Flexible
  • Heat or solvent activation
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Overall Length (Imperial)60.0
Overall Thickness (Metric) UOMmm
ApplicationBonding; Sealing
Product ColorBrown
Minimum Cure Conditions (Celsius)107.0
Nominal Weight (Imperial)0.0
Overall Thickness (Imperial) UOMmil
Product UsageElectronic Components
Overall Width (Metric) UOMmm
Overall Thickness (Metric)5.0
Shear Strength UOMpsi
Shear Strength14.0
Adhesive TypeNitrile Phenolic
Maximum Operating Temperature (Celsius)150.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Overall Width (Metric)228.6
Overall Length (Metric) UOMm
Backing Thickness (Metric)0.0
Minimum Cure Conditions (Fahrenheit)225.0
Nominal Adhesive Thickness (Imperial)2.0
Overall Length (Metric)54.9
Maximum Cure Conditions (Fahrenheit)300.0
Maximum Operating Temperature (Fahrenheit)300.0
IndustriesElectronics, General Industrial, Transportation
Nominal Adhesive Thickness (Metric)0.05
Minimum Operating Temperature (Fahrenheit)0.0
Density0.0
Shelf Life UOMMonth
Overall Width (Imperial) UOMin
Nominal Weight (Metric)0.0
Minimum Operating Temperature (Celsius)0.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial)0.127
Overall Width (Imperial)9.0
Backing Thickness (Imperial)0.0
Curing Temperature (Fahrenheit) UOMDegree
Product FormRoll
Curing Temperature (Celsius) UOMDegree
Maximum Cure Conditions (Celsius)150.0
