3M Products & Supplies

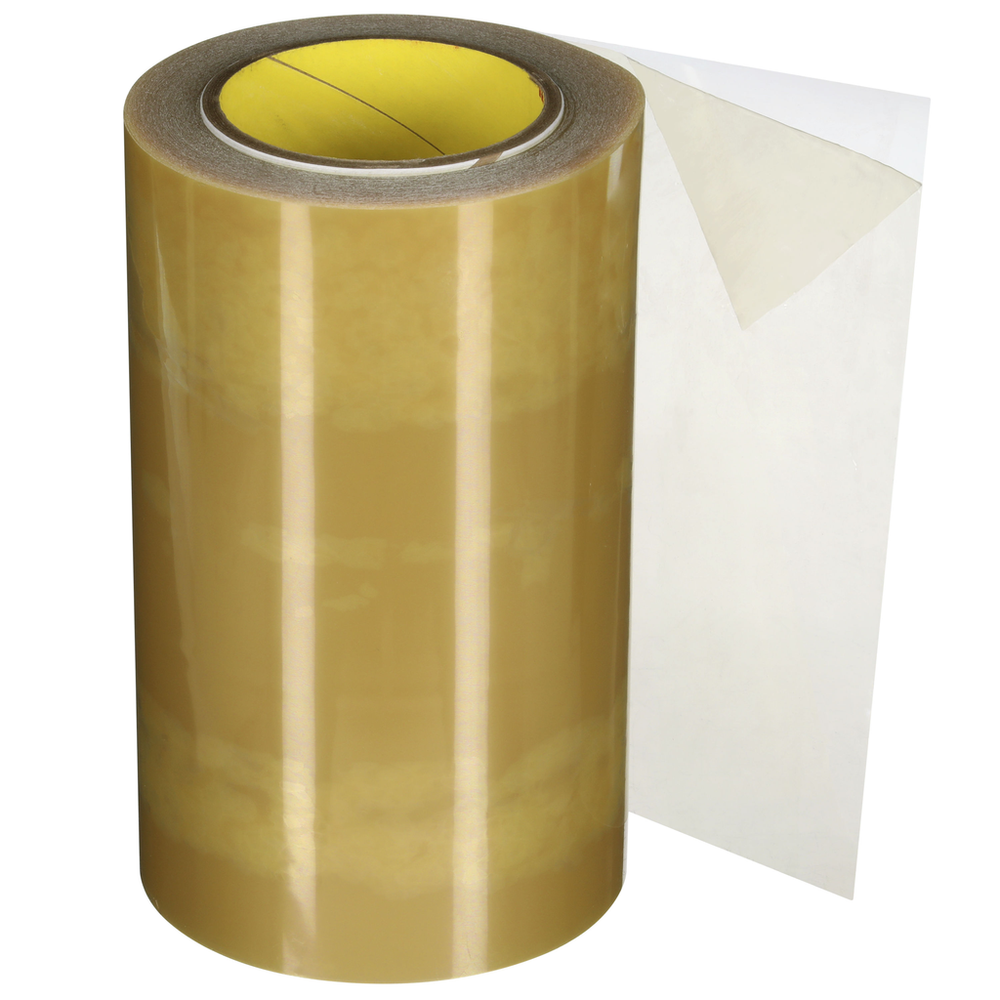

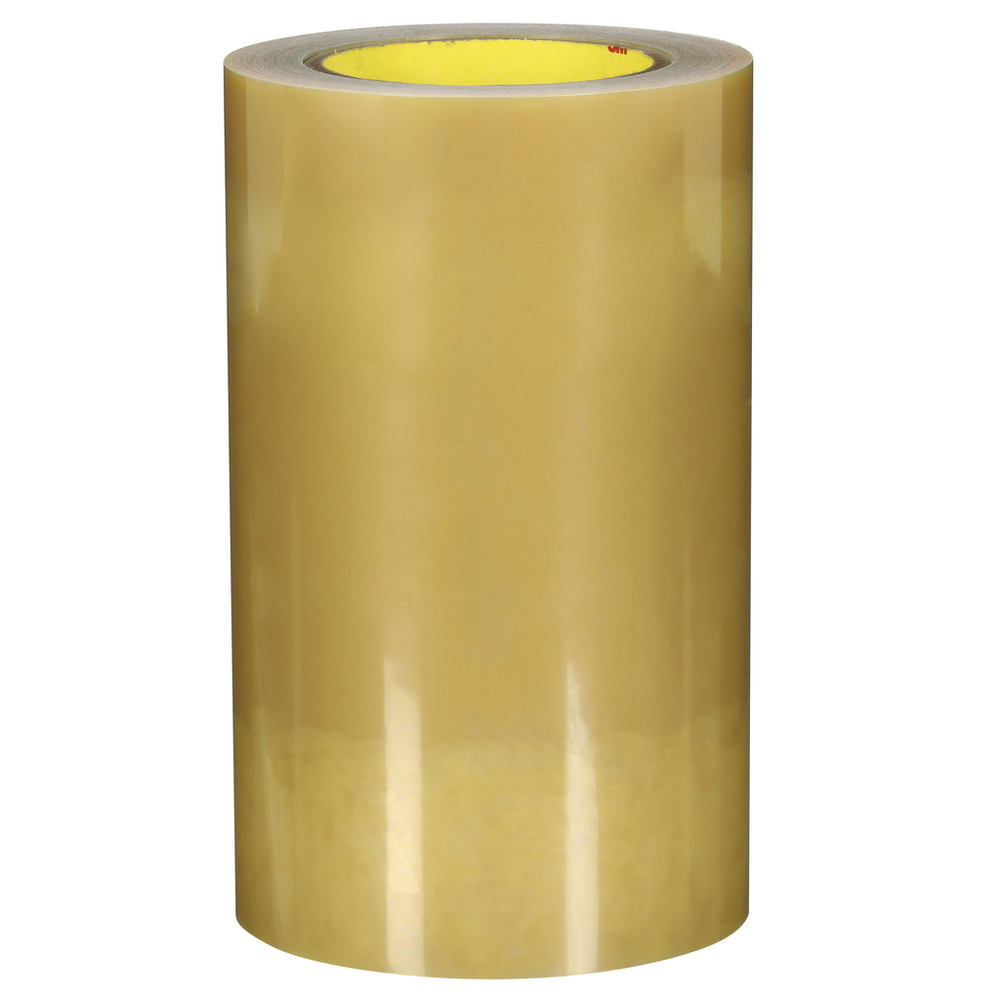

3M™ Thermal Bonding Film 583, 4 in x 60 yds, 8/Case, Bulk - 7000048381

Sold As: 8-Pack
SKU: 7000048381
MPN: 7000048381
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200038150
3M ID: 70006004181
5 Digit UPC: 3815
$885.58 ($110.70 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Slight surface tack
  • Can be die-cut
  • Flexible
  • Heat or solvent activation
  • Heat crosslinkable option
  • Lower temperature lamination of the nitrile phenolic film range
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)300.0
Curing Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)150.0
Minimum Cure Conditions (Fahrenheit)225.0
Product UsageElectronic Components
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.0
Backing Thickness (Metric)0.0
Backing Thickness (Imperial)0.0
Nominal Weight (Metric)0.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial)4.0
Shelf Life UOMMonth
Density0.0
Overall Thickness (Metric)5.0
Product ColorBrown
Overall Length (Metric)54.9
Product FormRoll
Minimum Operating Temperature (Fahrenheit)0.0
IndustriesElectronics, General Industrial, Transportation
Maximum Operating Temperature (Celsius) UOMDegree
Nominal Adhesive Thickness (Metric)0.05
Minimum Operating Temperature (Celsius)0.0
Overall Thickness (Metric) UOMmm
Adhesive TypeNitrile Phenolic
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
ApplicationBonding; Sealing
Minimum Cure Conditions (Celsius)107.0
Overall Thickness (Imperial)0.127
Shear Strength UOMpsi
Curing Temperature (Celsius) UOMDegree
Maximum Cure Conditions (Celsius)150.0
Nominal Adhesive Thickness (Imperial)2.0
Shear Strength14.0
Overall Width (Metric) UOMmm
Nominal Weight (Imperial)0.0
Overall Thickness (Imperial) UOMmil
Maximum Cure Conditions (Fahrenheit)300.0
