3M Products & Supplies

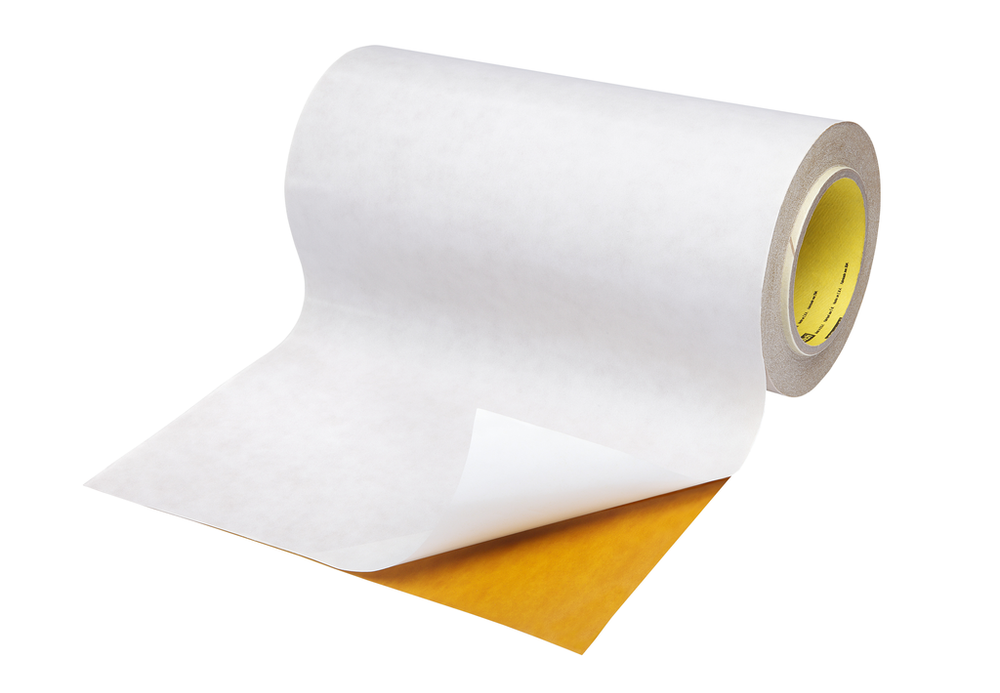

3M™ Thermal Bonding Film 583, 12 in x 60 yds, 4/Case, Bulk - 7000048454

Sold As: 4-Pack
SKU: 7000048454
MPN: 7000048454
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200118821
3M ID: 70006043635
5 Digit UPC: 11882
$1,328.35 ($332.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Slight surface tack
  • Heat crosslinkable option
  • Lower temperature lamination of the nitrile phenolic film range
  • Heat or solvent activation
  • Flexible
  • Can be die-cut
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Product UsageElectronic Components
Minimum Cure Conditions (Fahrenheit)225.0
Overall Thickness (Imperial) UOMmil
Curing Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Nominal Adhesive Thickness (Imperial)2.0
Minimum Cure Conditions (Celsius)107.0
Shelf Life UOMMonth
Overall Length (Imperial)60.0
Adhesive TypeNitrile Phenolic
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Maximum Cure Conditions (Celsius)150.0
Minimum Operating Temperature (Fahrenheit)0.0
Backing Thickness (Imperial)0.0
Overall Length (Metric)54.9
Nominal Adhesive Thickness (Metric)0.05
Product FormRoll
Shear Strength14.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)304.8
Curing Temperature (Celsius) UOMDegree
Nominal Weight (Imperial)0.0
Product ColorBrown
Nominal Weight (Metric)0.0
Overall Thickness (Metric)5.0
ApplicationBonding; Sealing
Maximum Cure Conditions (Fahrenheit)300.0
Overall Thickness (Imperial)0.127
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)300.0
IndustriesElectronics, General Industrial, Transportation
Shear Strength UOMpsi
Density0.0
Overall Width (Imperial)12.0
Backing Thickness (Metric)0.0
Overall Length (Metric) UOMm
Overall Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)150.0
