3M Products & Supplies

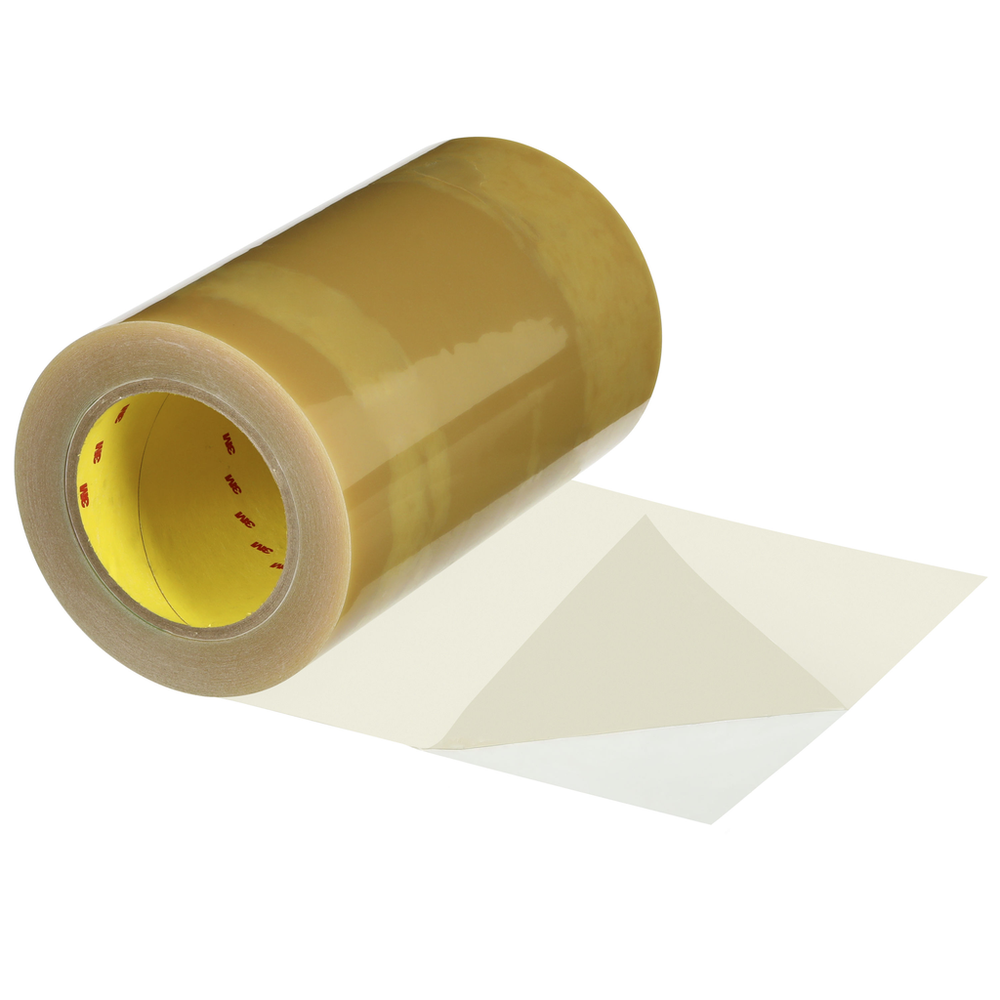

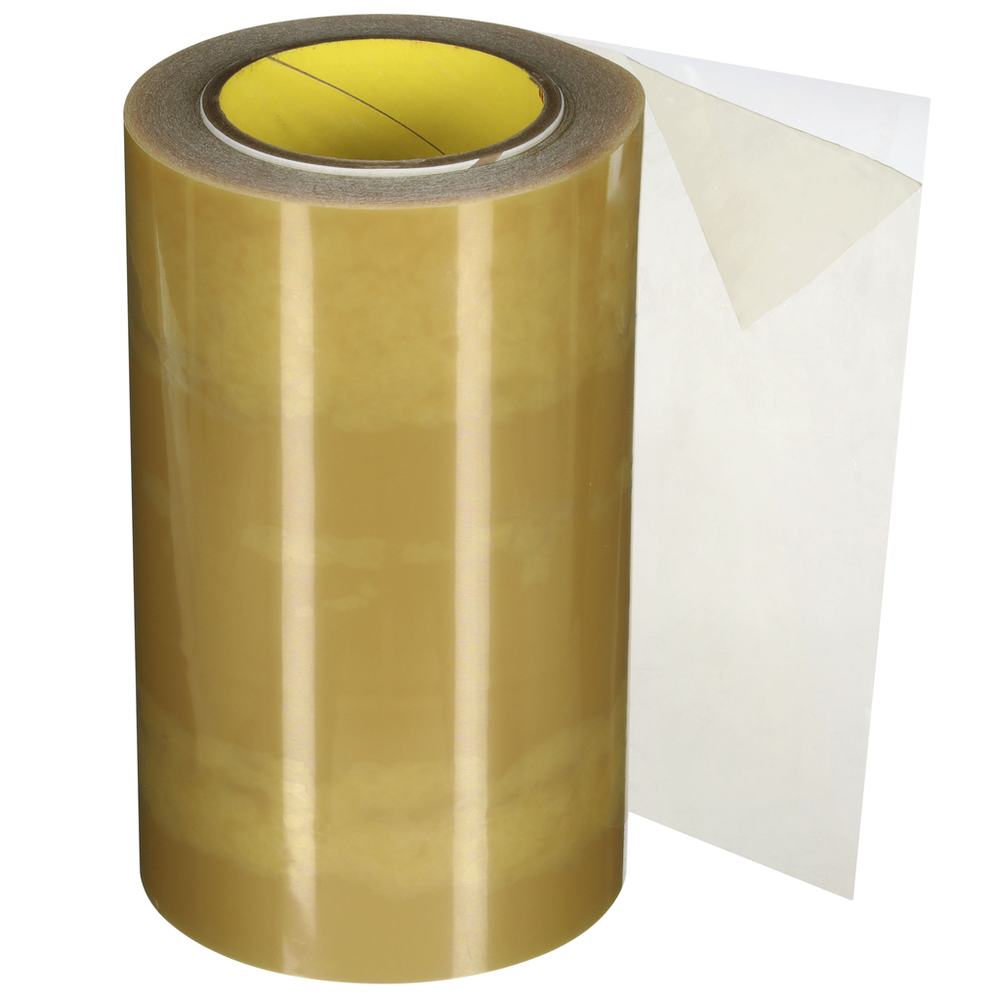

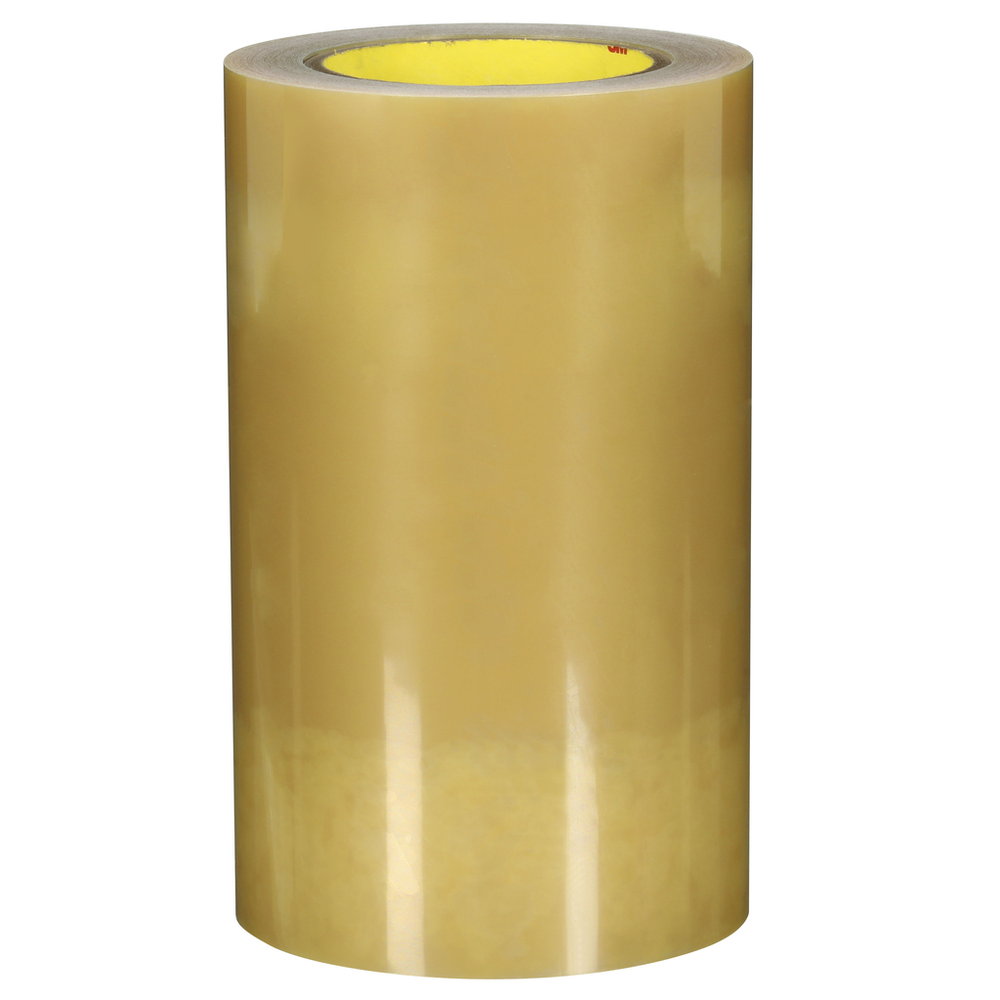

3M™ Thermal Bonding Film 583, 3/4 in x 60 yds, 48/Case, Bulk - 7000047509

Sold As: 48-Pack
SKU: 7000047509
MPN: 7000047509
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200034350
3M ID: 70002511114
5 Digit UPC: 3435
$1,052.15 ($21.92 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Flexible
  • Heat or solvent activation
  • Heat crosslinkable option
  • Slight surface tack
  • Lower temperature lamination of the nitrile phenolic film range
  • Can be die-cut
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Nominal Adhesive Thickness (Imperial)2.0
Overall Width (Metric) UOMmm
Nominal Weight (Metric)0.0
Product FormRoll
Product ColorBrown
Shear Strength UOMpsi
Curing Temperature (Fahrenheit) UOMDegree
Curing Temperature (Celsius) UOMDegree
Product UsageElectronic Components
Adhesive TypeNitrile Phenolic
Minimum Operating Temperature (Celsius)0.0
Overall Length (Metric) UOMm
Minimum Cure Conditions (Fahrenheit)225.0
Overall Width (Imperial) UOMin
Overall Thickness (Imperial) UOMmil
Backing Thickness (Imperial)0.0
Overall Thickness (Metric)5.0
Backing Thickness (Metric)0.0
Overall Length (Imperial)60.0
Minimum Operating Temperature (Fahrenheit)0.0
Maximum Cure Conditions (Fahrenheit)300.0
Maximum Operating Temperature (Celsius)150.0
Overall Width (Imperial)0.75
Overall Thickness (Imperial)0.127
Density0.0
Nominal Weight (Imperial)0.0
Minimum Cure Conditions (Celsius)107.0
Overall Width (Metric)19.05
IndustriesElectronics, General Industrial, Transportation
Maximum Cure Conditions (Celsius)150.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)54.9
Nominal Adhesive Thickness (Metric)0.05
Overall Length (Imperial) UOMyd
ApplicationBonding; Sealing
Shelf Life UOMMonth
Shear Strength14.0
Maximum Operating Temperature (Fahrenheit)300.0
Overall Thickness (Metric) UOMmm
