3M Products & Supplies

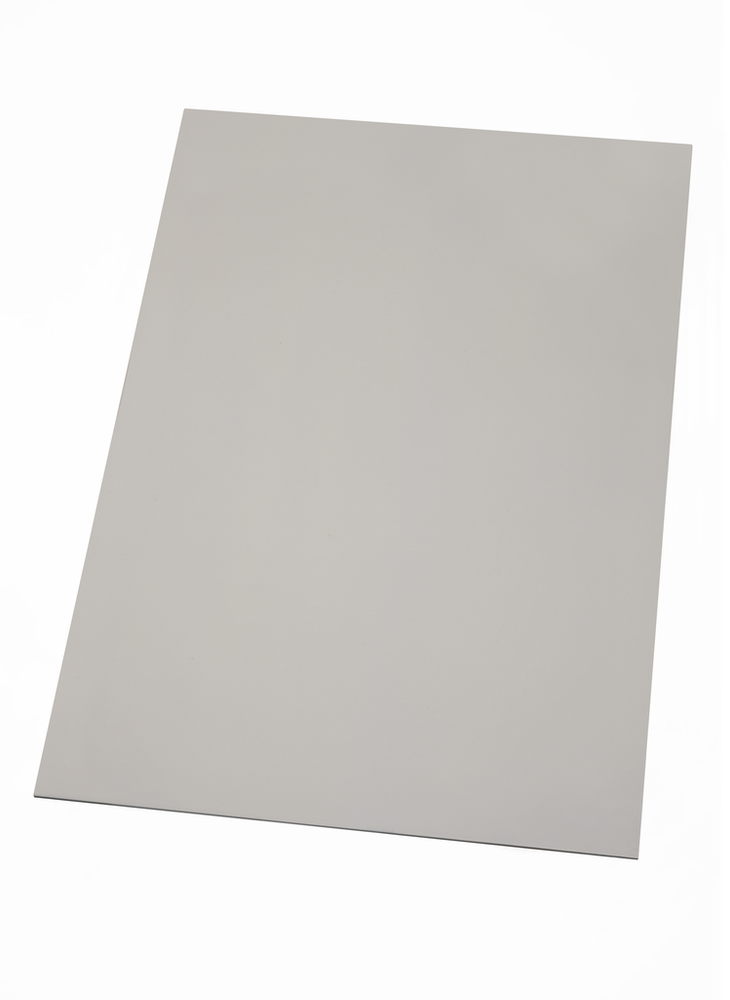

3M™ Thermally Conductive Acrylic Interface Pad 5571N-05, 300 mm x 20 m, 1/Case - 7100097880

Sold As: 32-Pack
SKU: 7100097880
MPN: 7100097880
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08806080063698
3M ID: WT600913360
5 Digit UPC: 6369
$13,349.31 ($417.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Acrylic Interface Pad 5571N is 0.5 mm thick and designated to provide a preferential heat transfer path between heat generating components like integrated circuit chip and heat spreaders as aluminum heat sink.

Features

  • Passes UL 94 V-2 flame retardance test
  • No siloxane outgassing or oil bleeding
  • Soft compliant material allows for pressure relaxation, preventing high pressure zones on components
  • Good softness and conformability even to non-flat IC surfaces and heat spreading blocks
  • High thermal conductivity, 2.0 W/m-K on plane direction
  • Good electrical insulation properties
Spec Sheet



Downloads

Specifications

Shelf Life0.0
Country of OriginSouth Korea
Adhesive TypeNon-adhesive
Overall Width (Imperial)11.81
Base MaterialAcrylic
Thermal Conductivity (X-Y Axis)0.0
Overall Width (Metric)300.0
Total Tape Thickness without Liner (Metric)0.5
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Thermal Conductivity (Z Axis)2.0 W/m-K
Units per Case1.0
ApplicationThermal Management
Overall Width (Imperial) UOMin
Product UsageHeat Sinks; Heat Spreaders; Integrated Circuit Chips
Total Tape Thickness without Liner (Imperial)19.685
Dielectric Strength13.0 kV/mm
Overall Length (Imperial)21.87
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)20.0
