3M Products & Supplies

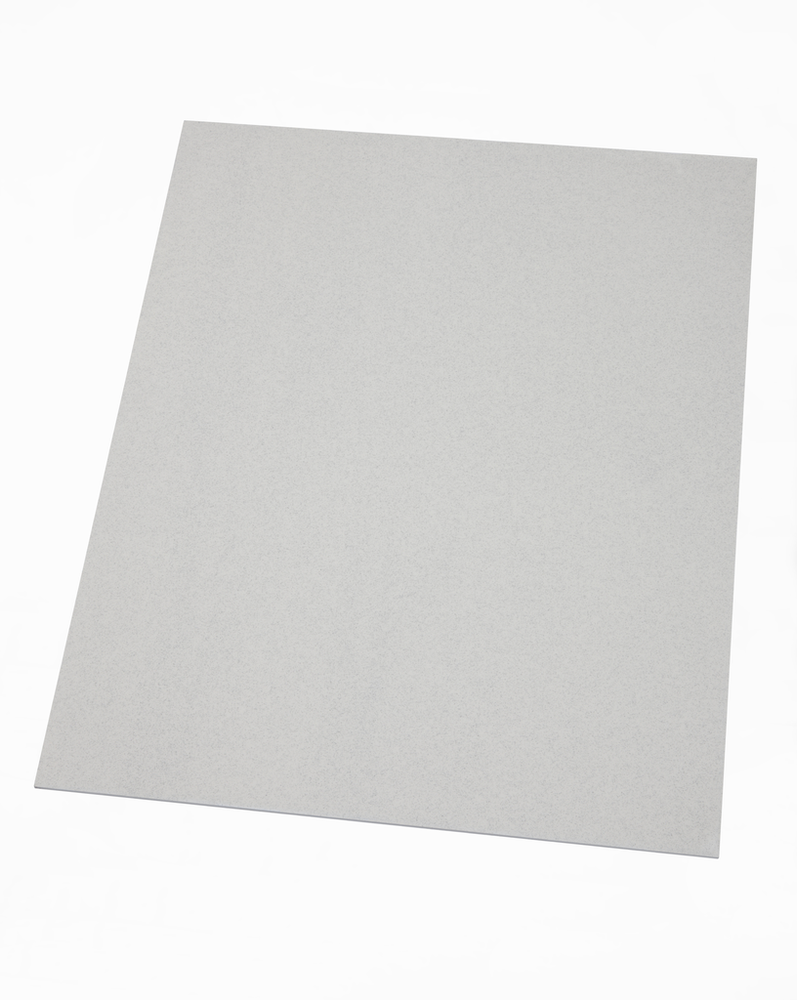

3M™ Thermally Conductive Acrylic Interface Pad 5589H-10, 220 mm x 220 mmx 1.0 mm, 30 Sheets/Case - 7010352548

Sold As: 30-Pack
SKU: 7010352548
MPN: 7010352548
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060825549
3M ID: JT940010211
5 Digit UPC: 82554
$522.15 ($17.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Acrylic Interface Pad 5589H is an acrylic elastomer based interface pad. It has high thermal conductivity, good electrical insulation properties and is ideally suited for applications that require non silicone properties.

Features

  • Good softness and conformability to non-flat surfaces
  • Excellent compressive stress relaxation
  • Good dielectric performance
  • Non-silicone acrylic elastomer
  • Good surface tack leads to low thermal resistance at surface
  • Thickness : 1.0 mm, 1.5 mm

Specifications

Shelf Life0.0
Country of OriginJapan
Overall Length (Imperial)8.66
Thermal Conductivity (Z Axis)2.0 W/m-K
Overall Length (Metric)220.0
Dielectric Strength21.0 kV/mm
Base MaterialAcrylic
Product ColorLight Gray, White
Overall Width (Imperial)8.66
ApplicationHeat Transfer, Thermal Management
Total Tape Thickness without Liner (Metric) UOMmm
Units per Case30.0
Total Tape Thickness without Liner (Metric)1.0
Total Tape Thickness without Liner (Imperial)39.37
Overall Length (Metric) UOMmm
Adhesive TypeNon-adhesive
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Product UsageHeat Spreaders; Integrated Circuit Chips
Overall Width (Metric)220.0
Thermal Conductivity (X-Y Axis)0.0
Specifications MetUL 94 V-0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
