3M Products & Supplies

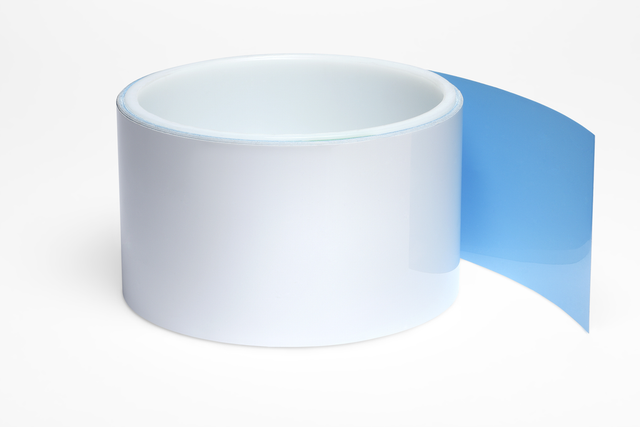

3M™ Thermally Conductive Heat Spreading Tape (TCoHST) 9876-08, 500 mm x 50 m - 7010411847

Sold As: 5-Pack
SKU: 7010411847
MPN: 7010411847
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 18806080064043
3M ID: WX300952677
5 Digit UPC: 6404
$24,549.26 ($4909.85 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive and Heat Spreading Tape Series 9876 provides excellent heat spreading performance on plane direction for stimulation of quick heat dissipation with a preferential heat transfer path between heat generating components.

Features

  • Excellent thermal conductivity on plane direction ( >210-250 W/m-K)
  • Easy workability and handling (easy die-cut)
  • High performance acrylic adhesive provides excellent adhesion to Aluminum and SUS
  • Selective thermal spreading path for uniform heat distribution
  • Excellent electrical insulation
  • Excellent flexibility

Specifications

Shelf Life24.0 Month
Country of OriginSouth Korea
Overall Width (Imperial)19.69
Overall Length (Metric) UOMm
ApplicationBonding, Heat Dissipation, Heat Transfer, Thermal Management
Overall Width (Metric) UOMmm
Thermal Conductivity (X-Y Axis)230.0 W/m-K
Overall Length (Metric)50.0
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
Overall Width (Metric)500.0
Total Tape Thickness without Liner (Metric)0.08
Units per Case0.0
Overall Length (Imperial) UOMyd
Dielectric Strength2.7 kV
Thermal Conductivity (Z Axis)1.4 W/m-K
Product UsageCOF Chips; Displays; Fans; Heat Pipes; Heat Sinks; Heat Spreaders; LED Lighting Systems; Metal Frames; Solar Panels
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial)54.68
Total Tape Thickness without Liner (Imperial)3.15
Base MaterialCopper
