3M Products & Supplies

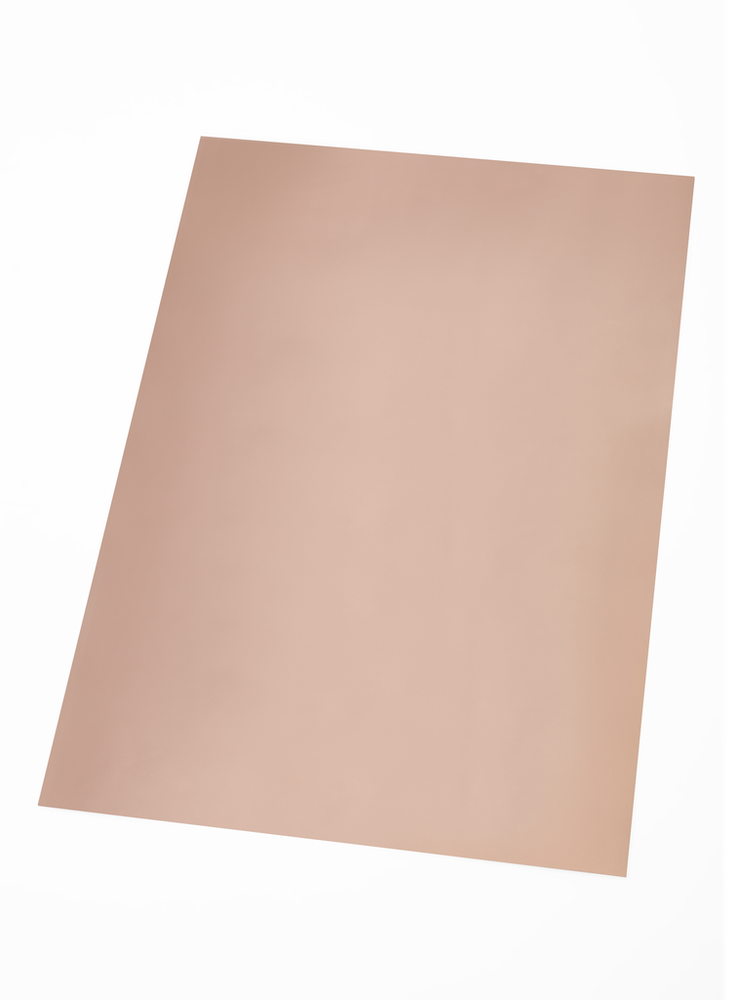

3M™ Thermally Conductive Heat Spreading Tape (TCoHST) 9876-15, 500 mm x 50 m - 7000008597

SKU: 7000008597
MPN: 7000008597
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115526510
3M ID: WX300918702
5 Digit UPC: 52651
$5,943.75 each
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive and Heat Spreading Tape Series 9876 provides excellent heat spreading performance on plane direction for stimulation of quick heat dissipation with a preferential heat transfer path between heat generating components.

Features

  • Excellent thermal conductivity on plane direction ( >210-250 W/m-K)
  • Easy workability and handling (easy die-cut)
  • Excellent flexibility
  • High performance acrylic adhesive provides excellent adhesion to Aluminum and SUS
  • Selective thermal spreading path for uniform heat distribution
  • Excellent electrical insulation
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginSouth Korea
Overall Width (Metric) UOMmm
Overall Length (Metric)50.0
Adhesive TypeAcrylic
Dielectric Strength3.6 kV
Units per Case0.0
Product ColorBrown
Overall Width (Imperial)19.69
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationBonding, Heat Dissipation, Heat Transfer, Thermal Management
Overall Length (Metric) UOMm
Product UsageCOF Chips; Displays; Fans; Heat Pipes; Heat Sinks; Heat Spreaders; LED Lighting Systems; Metal Frames; Solar Panels
Overall Width (Imperial) UOMin
Overall Length (Imperial)54.68
Overall Length (Imperial) UOMyd
Base MaterialCopper
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.906
Thermal Conductivity (Z Axis)0.8 W/m-K
Overall Width (Metric)500.0
Total Tape Thickness without Liner (Metric)0.15
Thermal Conductivity (X-Y Axis)270.0 W/m-K
