3M™ Transparent Conductor Film 3M23-MS, 450 mm x 450 mm, 5 Ea/Case - 7100329658

Sold As: 5-Pack
SKU: 7100329658
MPN: 7100329658
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08887862982116
3M ID: XN400514222
$1,077.61 ($215.52 / Count)
Hurry up! Current stock:

Product Description

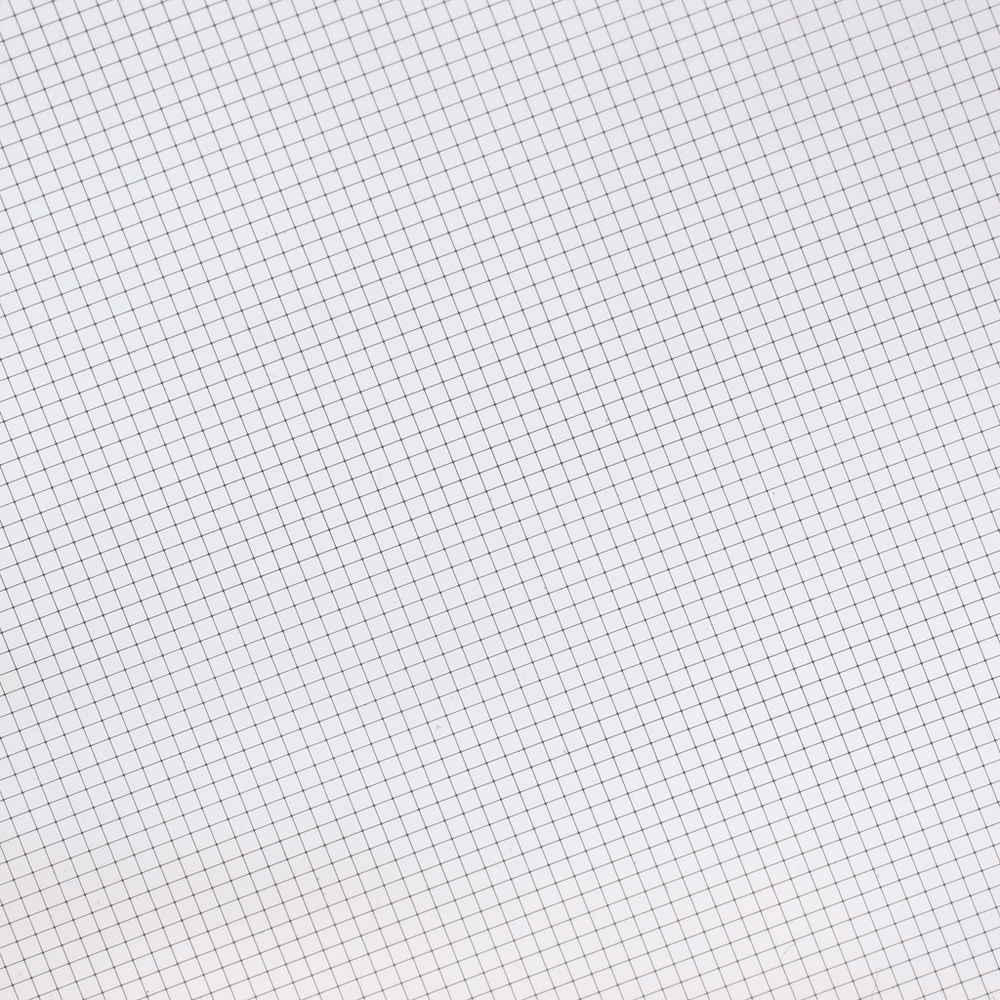

3M™ Transparent Conductor Film is a thin, transparent conductive film equipped with a copper grid as the conductive layer. With high light transmittance, low sheet resistance and excellent flexibility, this film has been demonstrated in inconspicuous sub-6GHz antenna products for indoor and outdoor use. This conductive transparent film from 3M helps enable high-power designs with low surface electrical resistance. Its flexible PET substrate allows for application over surfaces or lamination to a rigid support (e.g., a window). It is available as a post-patterned sheet format using customer-supplied antenna pattern design.

Features

  • High power capability (up to 50W)
  • Implemented in low-profile antennas achieving VSWR, PIM and gain requirements that are typical for non-transparent antennas
  • High transparency (>80% open area)
  • High efficiency (<0.05 ohms per square sheet resistance)
  • Proprietary copper grid conductive layer
  • Flexible PET substrate

Specifications

ApplicationCPE/Repeater Antennas; DAS; Fleet Management; Infrared Sensors; Inventory Management; Neutral Host; Public Safety; Small Cell
Overall Width (Metric)450.0
Country of OriginSouth Korea
Overall Width (Imperial) UOMin
Overall Length (Imperial)17.717
Product ColorTransparent
Overall Length (Metric)450.0
Application TypeIn-building Wireless; IoT; Outdoor Wireless
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMmm
Overall Width (Imperial)17.717
