3M™ UHMW Film Tape 5425, Transparent, 10 in x 36 yd, 5.1 mil, 1 Roll/Case - 7000048698

SKU: 7000048698
MPN: 7000048698
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200735851
3M ID: 70006197654
5 Digit UPC: 73585
$2,347.53 each
Hurry up! Current stock:

Product Description

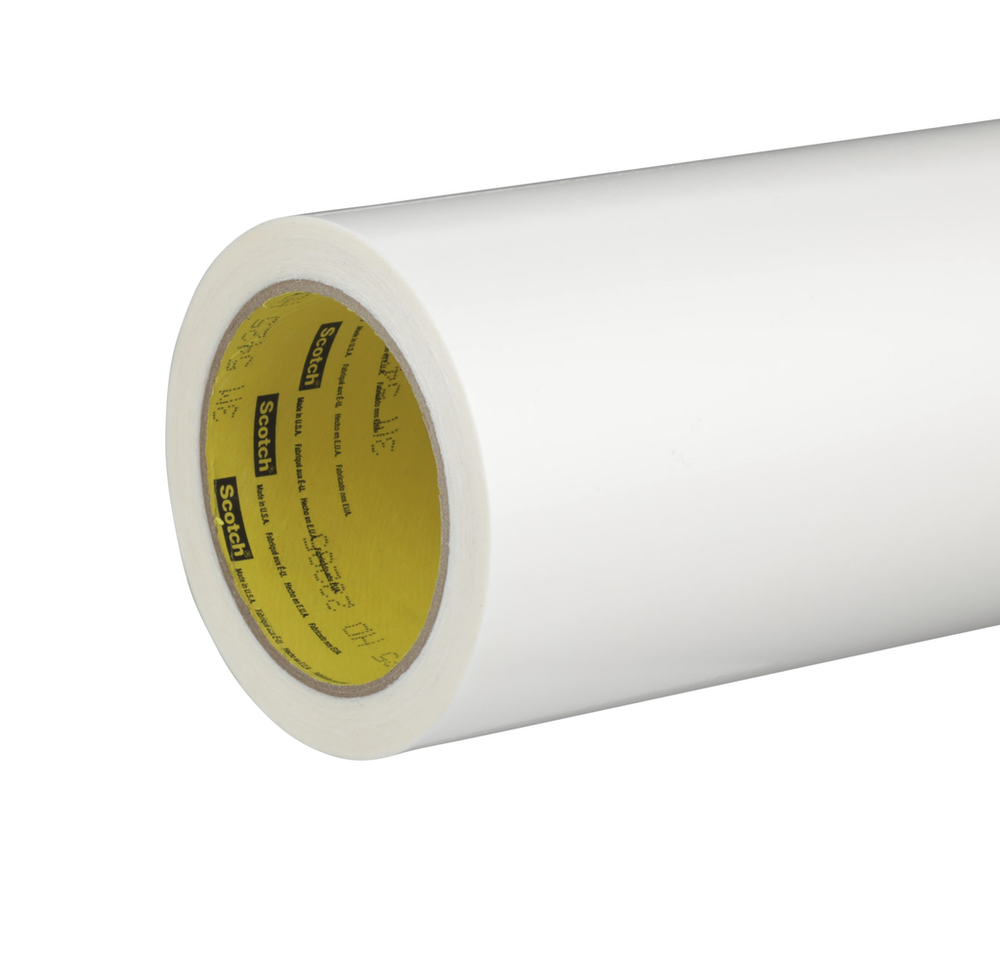

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

Features

  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Solvent and oil resistant adhesive provides high adhesion and chemical resistance in the most demanding applications
  • Used in applications where lubrication is not possible because of contamination
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)225.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric)0.13
Overall Width (Imperial)10.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.08
Tensile Strength (Metric)44.4
Units per Case1.0
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)254.0
Backing (Carrier) Thickness (Imperial)3.0
Elongation at Break345%
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Units per Case UOMRoll
Tensile Strength (Imperial)45.0
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorTransparent
Maximum Operating Temperature (Celsius)107.0
Minimum Operating Temperature (Fahrenheit)-30.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Backing (Carrier) MaterialPolyethylene
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Adhesion Strength30.0
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Overall Length (Metric)33.0
Overall Width (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Adhesion Strength (Metric)33.0
Minimum Operating Temperature (Celsius)-34.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric) UOMm
ApplicationVibration Damping
Total Tape Thickness without Liner (Imperial)5.1
