3M Products & Supplies

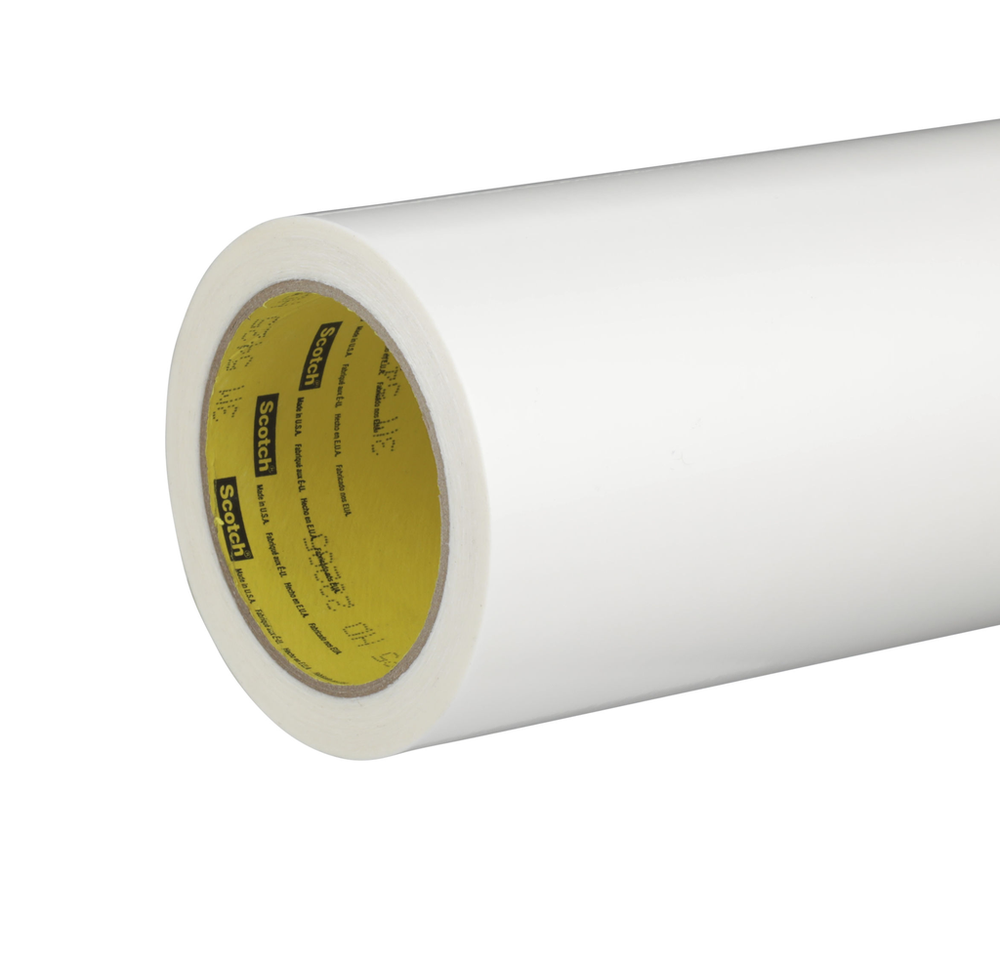

3M™ UHMW Film Tape 5425, Transparent, 12 in x 36 yd, 5.1 mil, 1 Roll/Case - 7000048700

Sold As: 2-Pack
SKU: 7000048700
MPN: 7000048700
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200268878
3M ID: 70006197787
5 Digit UPC: 26887
$5,634.07 ($2817.03 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

Features

  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Solvent and oil resistant adhesive provides high adhesion and chemical resistance in the most demanding applications
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Used in applications where lubrication is not possible because of contamination
  • Translucent, abrasion resistant backing helps protect surfaces from wear

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)12.0
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPolyethylene
Elongation at Break345%
Units per Case UOMRoll
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-30.0
Overall Length (Imperial) UOMyd
Units per Case1.0
ApplicationVibration Damping
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.13
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial)5.1
Overall Length (Imperial)36.0
Adhesion Strength (Metric)33.0
Backing (Carrier) Thickness (Metric)0.08
Overall Width (Metric)304.8
Tensile Strength (Metric)44.4
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit)225.0
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Imperial)3.0
Tensile Strength (Imperial)45.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)107.0
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesion Strength30.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorTransparent
