3M Products & Supplies

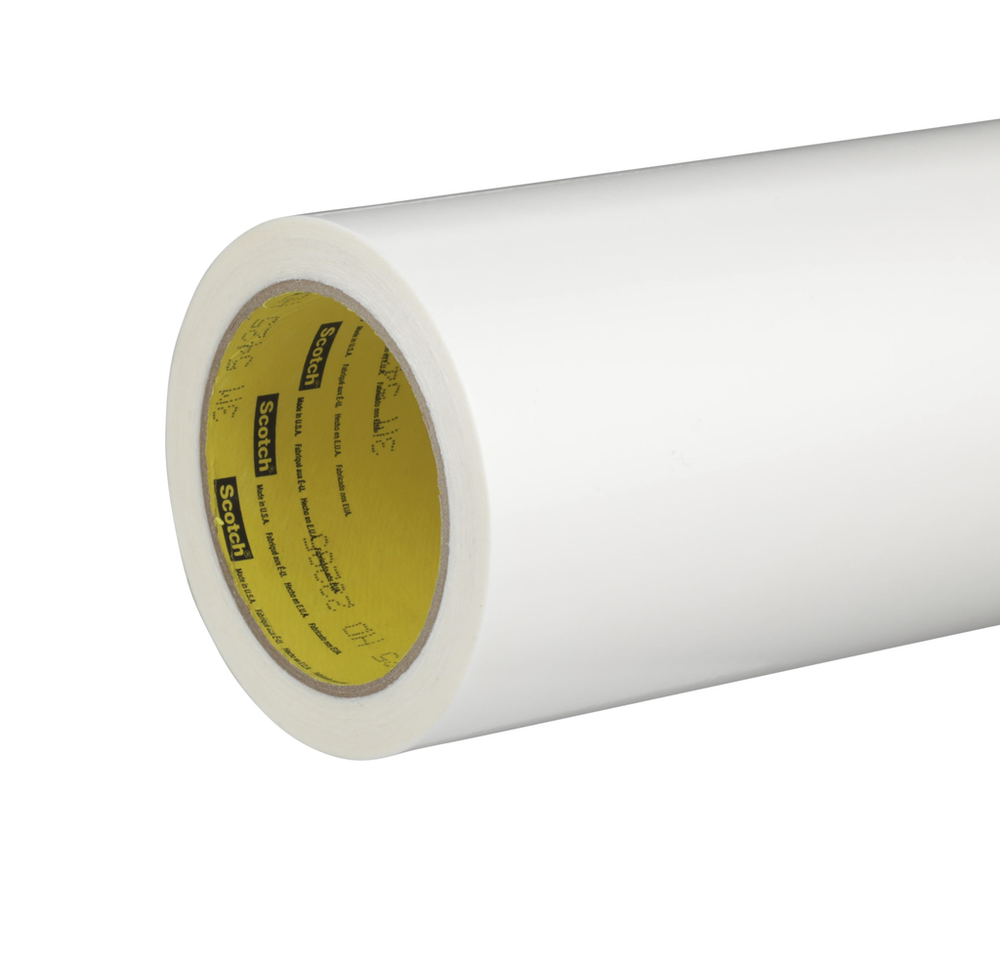

3M™ UHMW Film Tape 5425, Transparent, 11 in x 18 yd, 5.1 mil, 1 Roll/Case - 7010334144

Sold As: 4-Pack
SKU: 7010334144
MPN: 7010334144
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115057786
3M ID: 70006377439
5 Digit UPC: 5778
$5,164.56 ($1291.14 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

Features

  • Solvent and oil resistant adhesive provides high adhesion and chemical resistance in the most demanding applications
  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Used in applications where lubrication is not possible because of contamination
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric)279.4
Adhesion Strength (Metric)33.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break345%
Maximum Operating Temperature (Fahrenheit)225.0
Adhesion Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit)-30.0
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial)3.0
Maximum Operating Temperature (Celsius)107.0
Overall Length (Metric)16.45
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric)44.4
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Minimum Operating Temperature (Celsius) UOMDegree
Adhesion Strength30.0
Overall Width (Imperial)11.0
Tensile Strength (Imperial)45.0
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesive TypeAcrylic
Product ColorTransparent
ApplicationVibration Damping
Backing (Carrier) MaterialPolyethylene
Backing (Carrier) Thickness (Metric)0.08
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial)5.1
Total Tape Thickness without Liner (Metric)0.13
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)18.0
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial) UOMmil
