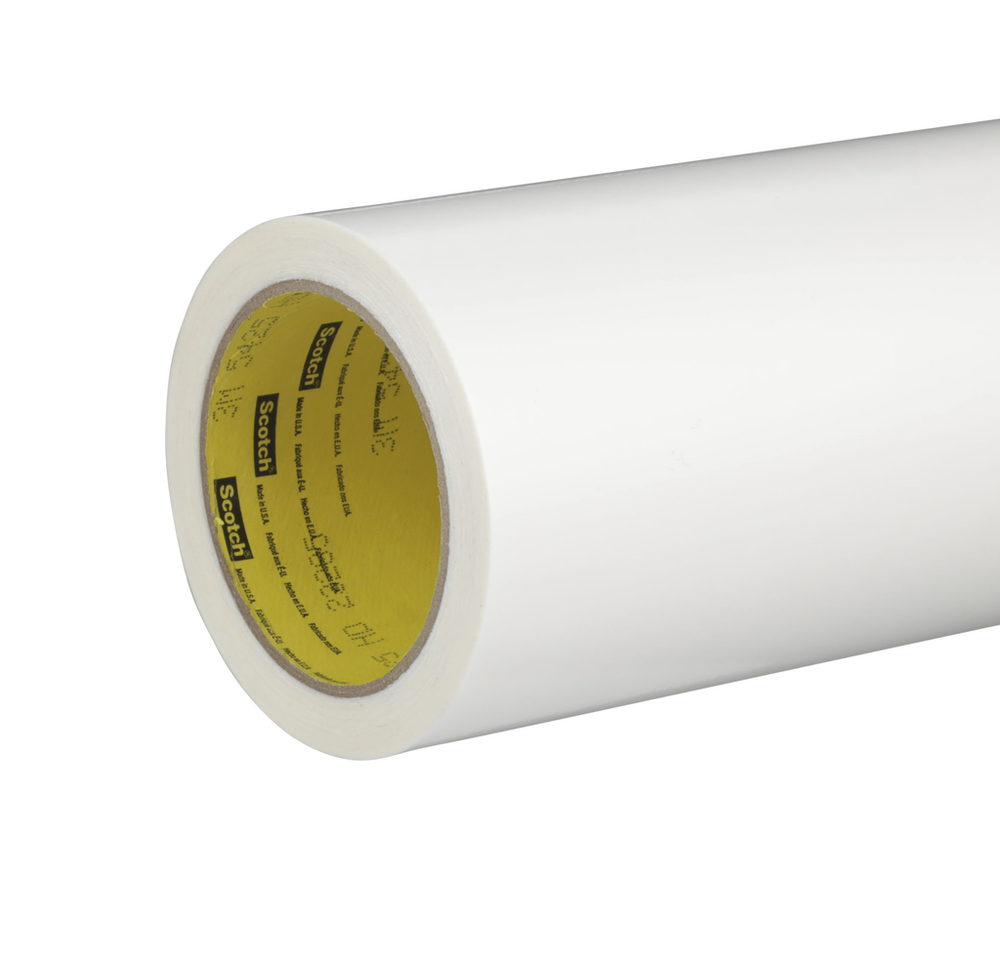

3M™ UHMW Film Tape 5425, Transparent, 24 in x 36 yd, 5.1 mil, 1 Roll/Case, Untrimmed Potted - 7010334812

SKU: 7010334812
MPN: 7010334812
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138963125
3M ID: 70006396736
5 Digit UPC: 96312
$5,633.86 each
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

Features

  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Solvent and oil resistant adhesive provides high adhesion and chemical resistance in the most demanding applications
  • Used in applications where lubrication is not possible because of contamination
  • Can help reduce squeaks, rattles and other noises that occur with movement
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.1
Overall Width (Imperial) UOMin
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorTransparent
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Overall Length (Imperial) UOMyd
Overall Width (Metric)609.6
Maximum Operating Temperature (Fahrenheit)225.0
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Imperial)3.0
ApplicationVibration Damping
Tensile Strength (Imperial)45.0
Overall Width (Imperial)24.0
Minimum Operating Temperature (Celsius)-34.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Backing (Carrier) MaterialPolyethylene
Adhesion Strength30.0
Minimum Operating Temperature (Fahrenheit)-30.0
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Metric)0.13
Adhesion Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric)0.08
Maximum Operating Temperature (Celsius)107.0
Overall Length (Metric) UOMm
Tensile Strength (Metric)44.4
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric)33.0
Elongation at Break345%
