3M™ VHB™ Tape 4941, Gray, 1.099 in x 36 yd, 45 mil, 7 Roll/Case - 7010334451

Name: 3M™ VHB™ Tape 4941, Gray, 1.099 in x 36 yd, 45 mil, 7 Roll/Case - 7010334451
Brand: 3M Products & Supplies
SKU: 7010334451
Price: 1226.94 USD
Availability: InStock

Sold As: 7-Pack

SKU: 7010334451

MPN: 7010334451

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00021200429996

3M ID: 70006278488

5 Digit UPC: 42999

$1,226.94 ($175.28 / Count)

Hurry up! Current stock:

Quantity:

Product Description

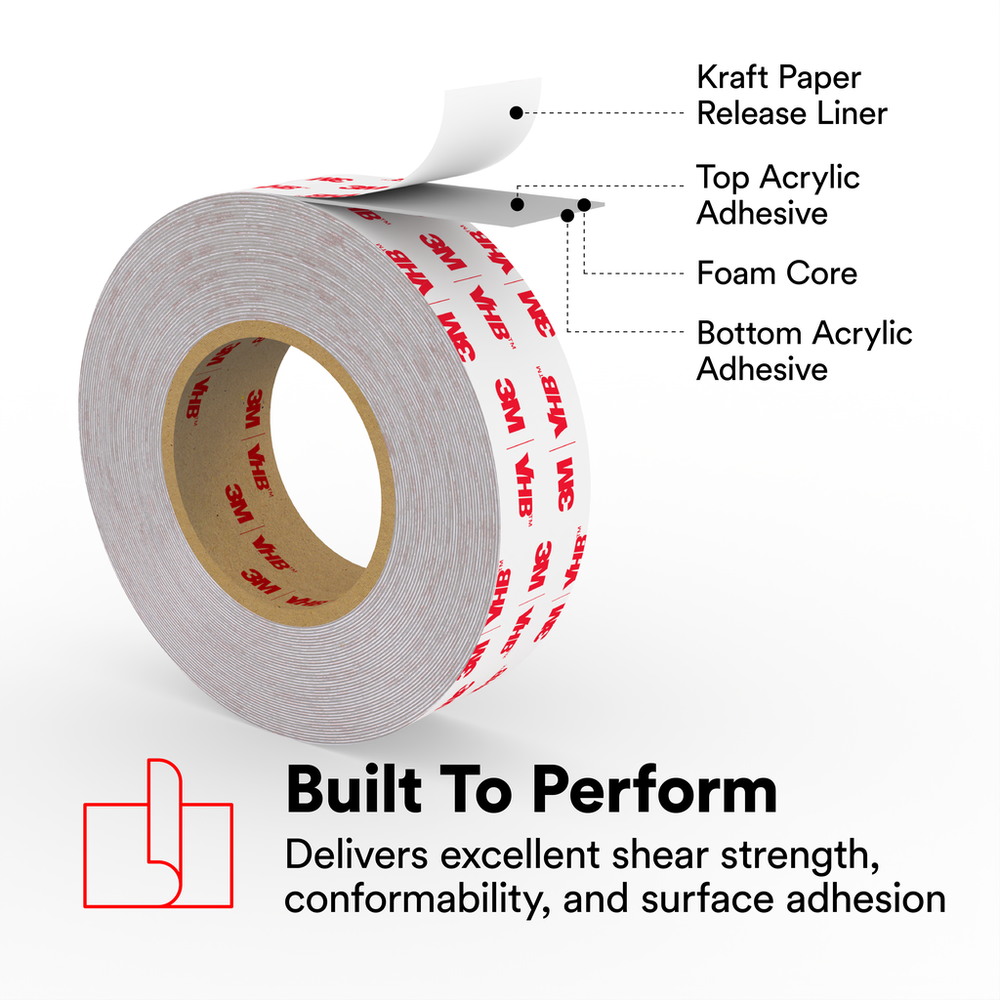

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Overall Length (Imperial) UOM	yd
Maximum Operating Temperature (Celsius)	149.0
Core Size (Metric) UOM	mm
Minimum Operating Temperature (Fahrenheit)	0.0
Shelf Life UOM	Month
Adhesive Type	Acrylic
Minimum Operating Temperature (Celsius)	0.0
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Width (Imperial) UOM	in
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Core Size (Imperial)	3.0
Elongation at Break UOM	Pertinent
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Metric) UOM	m
Indoor/Outdoor	Indoor/Outdoor
Overall Width (Metric)	27.91
Total Tape Thickness without Liner (Imperial)	45.0
Overall Length (Metric)	32.9
Units per Case	7.0
Total Tape Thickness without Liner (Metric)	1.1
Foam Type	Conformable
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Core Size (Metric)	76.2
Maximum Operating Temperature (Fahrenheit)	300.0
Core Size (Imperial) UOM	in
Total Tape Thickness without Liner (Imperial) UOM	mil
Overall Width (Imperial)	1.09
Overall Width (Metric) UOM	mm
Overall Length (Imperial)	36.0
Product Color	Gray
