3M Products & Supplies

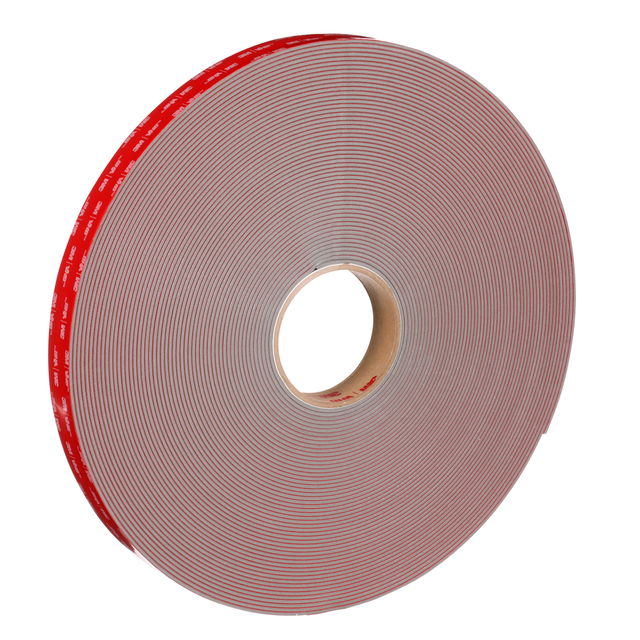

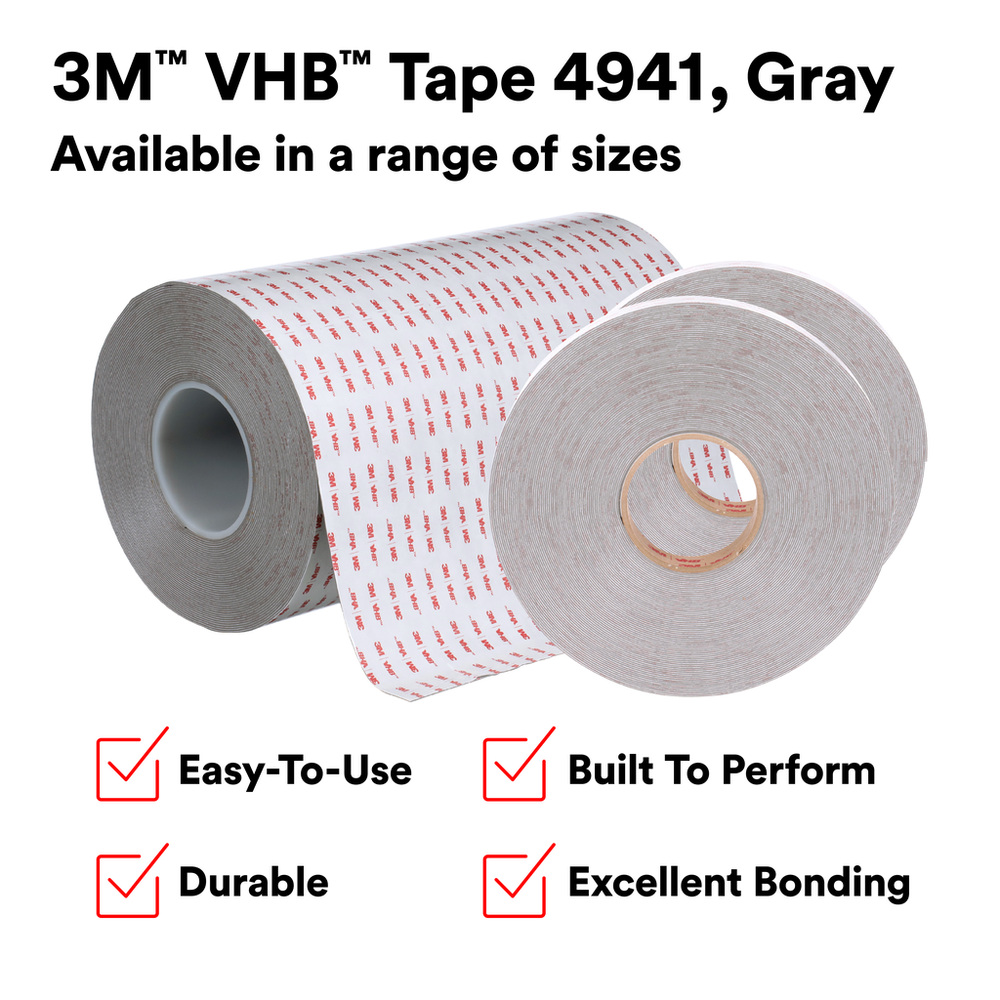

3M™ VHB™ Tape 4941, Gray, 1.099 in x 144 yd, 45 mil, 6 Roll/Case - 7010295799

Name: 3M™ VHB™ Tape 4941, Gray, 1.099 in x 144 yd, 45 mil, 6 Roll/Case - 7010295799
Brand: 3M Products & Supplies
SKU: 7010295799
Price: 33649.41 USD
Availability: InStock

Sold As: 48-Pack

SKU: 7010295799

MPN: 7010295799

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00048011587509

3M ID: 70006408275

5 Digit UPC: 58750

$33,649.41 ($701.03 / Count)

Hurry up! Current stock:

Quantity:

Product Description

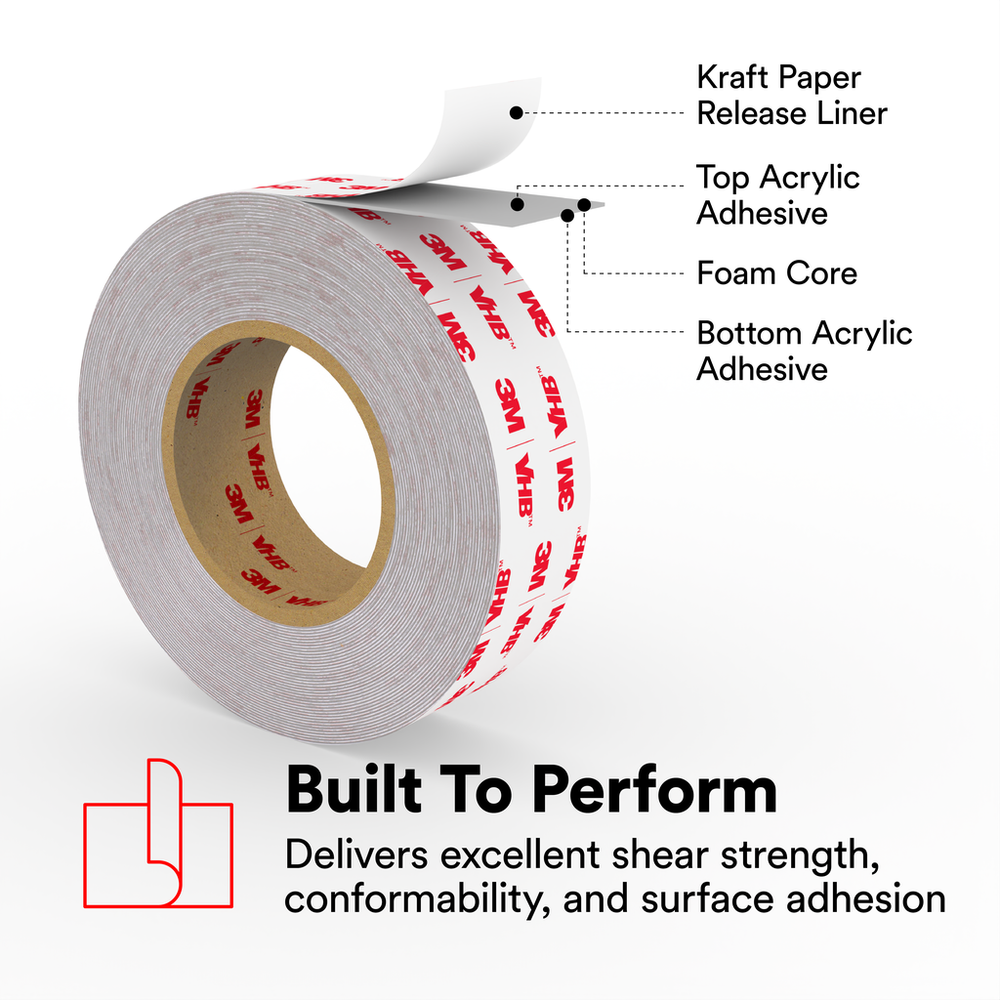

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Length (Metric)	131.7
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Total Tape Thickness without Liner (Metric)	1.1
Product Color	Gray
Units per Case	8.0
Overall Length (Metric) UOM	m
Total Tape Thickness without Liner (Imperial) UOM	mil
Core Size (Imperial)	3.0
Indoor/Outdoor	Indoor/Outdoor
Minimum Operating Temperature (Fahrenheit)	0.0
Overall Width (Imperial)	1.099
Overall Width (Imperial) UOM	in
Shelf Life UOM	Month
Foam Type	Conformable
Overall Length (Imperial) UOM	yd
Minimum Operating Temperature (Celsius)	0.0
Overall Length (Imperial)	144.0
Core Size (Metric) UOM	mm
Total Tape Thickness without Liner (Imperial)	45.0
Elongation at Break UOM	Pertinent
Adhesive Type	Acrylic
Core Size (Imperial) UOM	in
Overall Width (Metric)	27.91
Maximum Operating Temperature (Celsius) UOM	Degree
Core Size (Metric)	76.2
Maximum Operating Temperature (Celsius)	149.0
Overall Width (Metric) UOM	mm
Maximum Operating Temperature (Fahrenheit)	300.0
