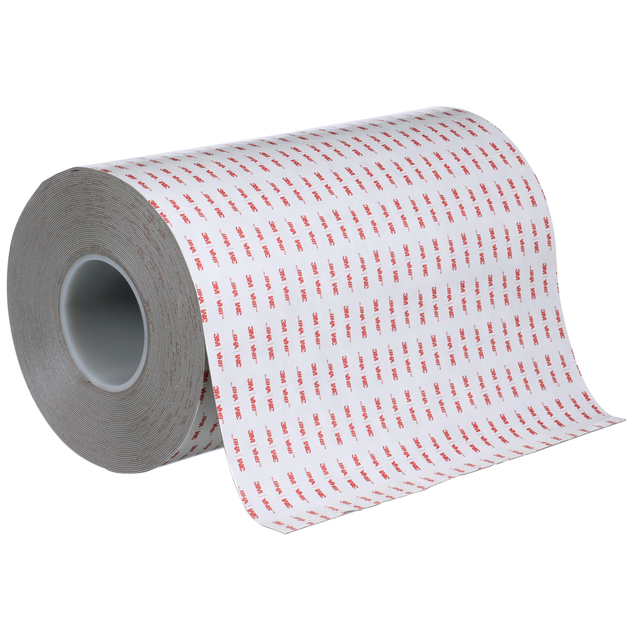

3M™ VHB™ Tape 4941, Gray, 40/47 in x 144 yd, 45 mil, 8 Roll/Case - 7010374643

Name: 3M™ VHB™ Tape 4941, Gray, 40/47 in x 144 yd, 45 mil, 8 Roll/Case - 7010374643
Brand: 3M Products & Supplies
SKU: 7010374643
Price: 32527.67 USD
Availability: InStock

Sold As: 56-Pack

SKU: 7010374643

MPN: 7010374643

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00048011587486

3M ID: 70006408259

5 Digit UPC: 58748

$32,527.67 ($580.85 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture

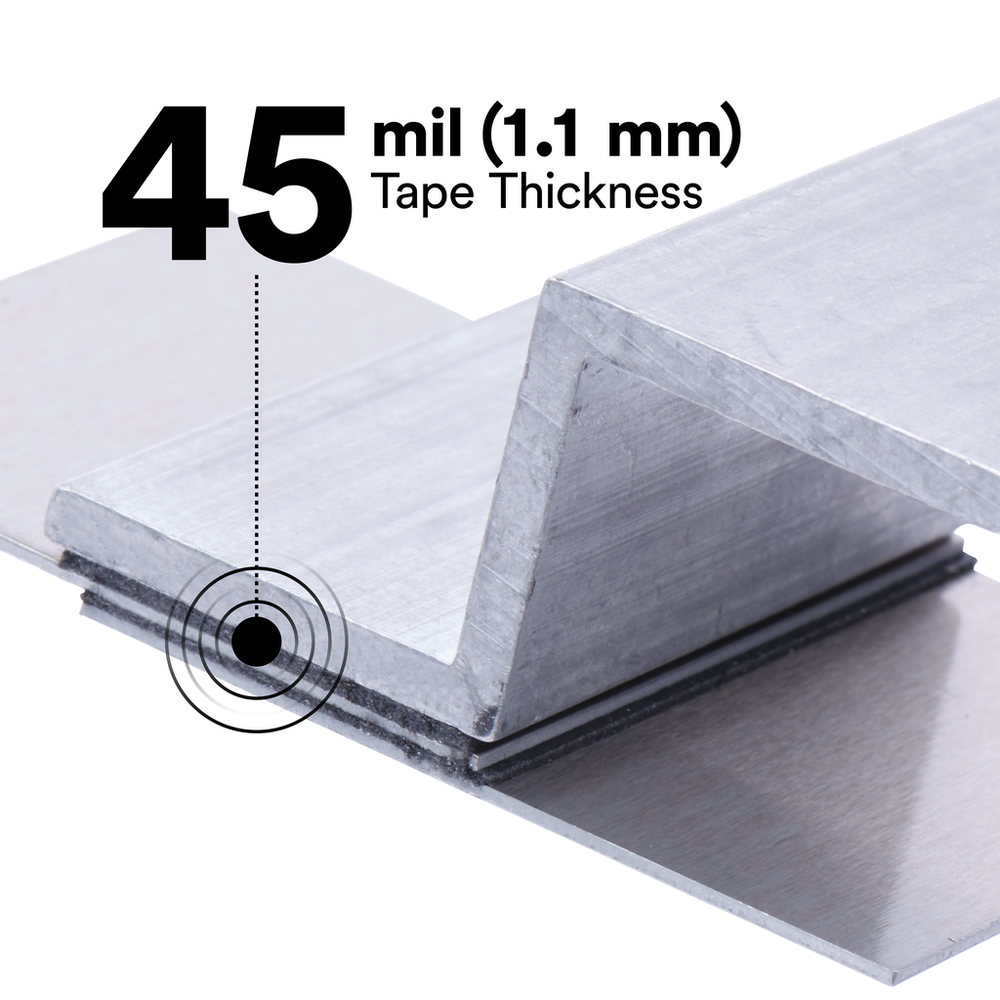

SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Core Size (Imperial)	3.0
Total Tape Thickness without Liner (Imperial)	45.0
Minimum Operating Temperature (Celsius)	0.0
Overall Length (Metric) UOM	m
Overall Length (Metric)	131.7
Overall Width (Metric) UOM	mm
Foam Type	Conformable
Shelf Life UOM	Month
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Operating Temperature (Fahrenheit)	300.0
Maximum Operating Temperature (Celsius) UOM	Degree
Elongation at Break UOM	Pertinent
Maximum Operating Temperature (Celsius)	149.0
Adhesive Type	Acrylic
Core Size (Metric)	76.2
Indoor/Outdoor	Indoor/Outdoor
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Width (Metric)	21.61
Overall Width (Imperial)	0.85
Overall Width (Imperial) UOM	in
Core Size (Metric) UOM	mm
Minimum Operating Temperature (Fahrenheit)	0.0
Overall Length (Imperial)	144.0
Total Tape Thickness without Liner (Metric)	1.1
Units per Case	8.0
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Overall Length (Imperial) UOM	yd
Total Tape Thickness without Liner (Imperial) UOM	mil
Product Color	Gray
Core Size (Imperial) UOM	in
