3M™ VHB™ Tape 4941, Gray, 1/2 in x 36 yd, 45 mil, 18 Roll/Case - 7000123502

Name: 3M™ VHB™ Tape 4941, Gray, 1/2 in x 36 yd, 45 mil, 18 Roll/Case - 7000123502
Brand: 3M Products & Supplies
SKU: 7000123502
Price: 1722.18 USD
Availability: InStock

Sold As: 18-Pack

SKU: 7000123502

MPN: 7000123502

For an accurate lead time please contact us

UPC: 00021200648861

3M ID: 70006149820

5 Digit UPC: 64886

$1,722.18 ($95.68 / Count)

Hurry up! Current stock:

Quantity:

Product Description

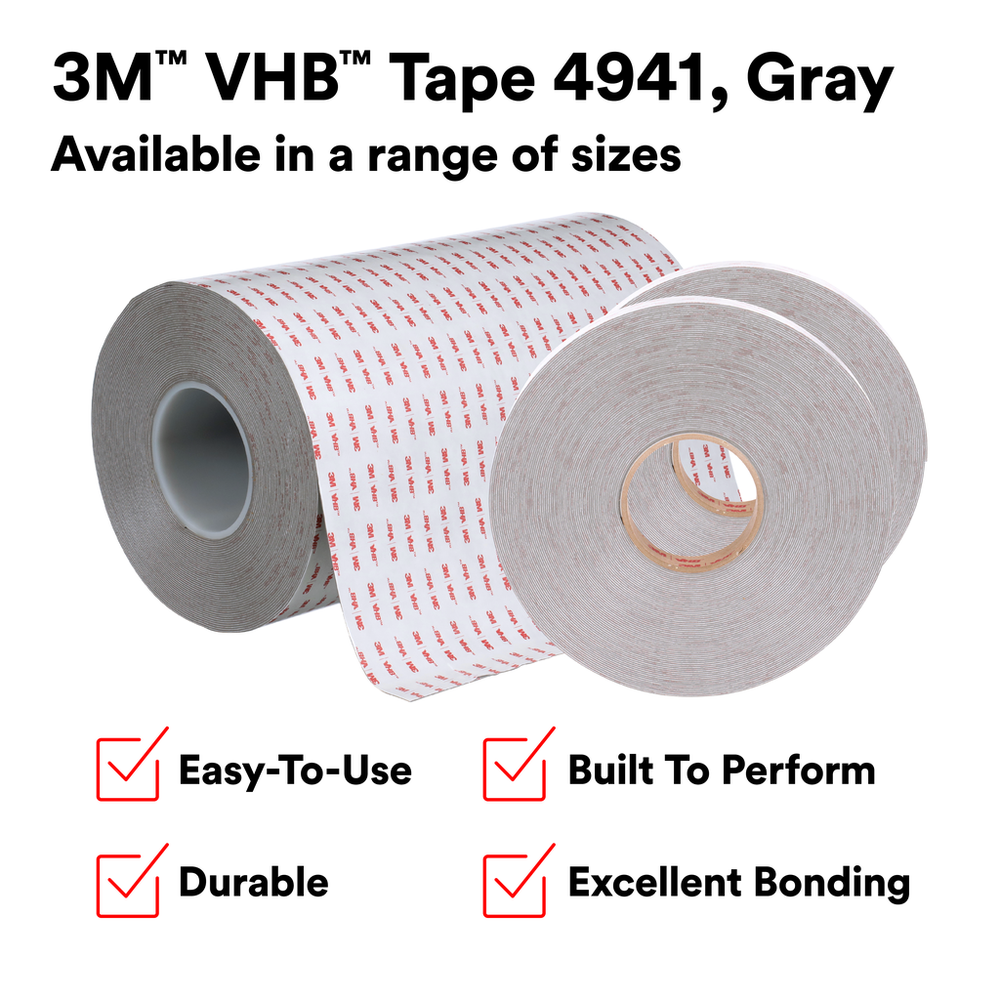

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Core Size (Imperial)	3.0
Indoor/Outdoor	Indoor/Outdoor
Overall Width (Imperial)	0.5
Overall Width (Imperial) UOM	in
Maximum Operating Temperature (Fahrenheit)	300.0
Overall Width (Metric)	12.7
Minimum Operating Temperature (Fahrenheit)	0.0
Elongation at Break UOM	Pertinent
Core Size (Metric)	76.2
Total Tape Thickness without Liner (Imperial) UOM	mil
Foam Type	Conformable
Overall Length (Imperial) UOM	yd
Maximum Operating Temperature (Celsius) UOM	Degree
Product Color	Gray
Total Tape Thickness without Liner (Metric)	1.1
Overall Width (Metric) UOM	mm
Overall Length (Metric) UOM	m
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Maximum Operating Temperature (Celsius)	149.0
Total Tape Thickness without Liner (Metric) UOM	mm
Adhesive Type	Acrylic
Total Tape Thickness without Liner (Imperial)	45.0
Units per Case	18.0
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Minimum Operating Temperature (Celsius)	0.0
Overall Length (Imperial)	36.0
Core Size (Imperial) UOM	in
Overall Length (Metric)	32.92
Shelf Life UOM	Month
Core Size (Metric) UOM	mm
