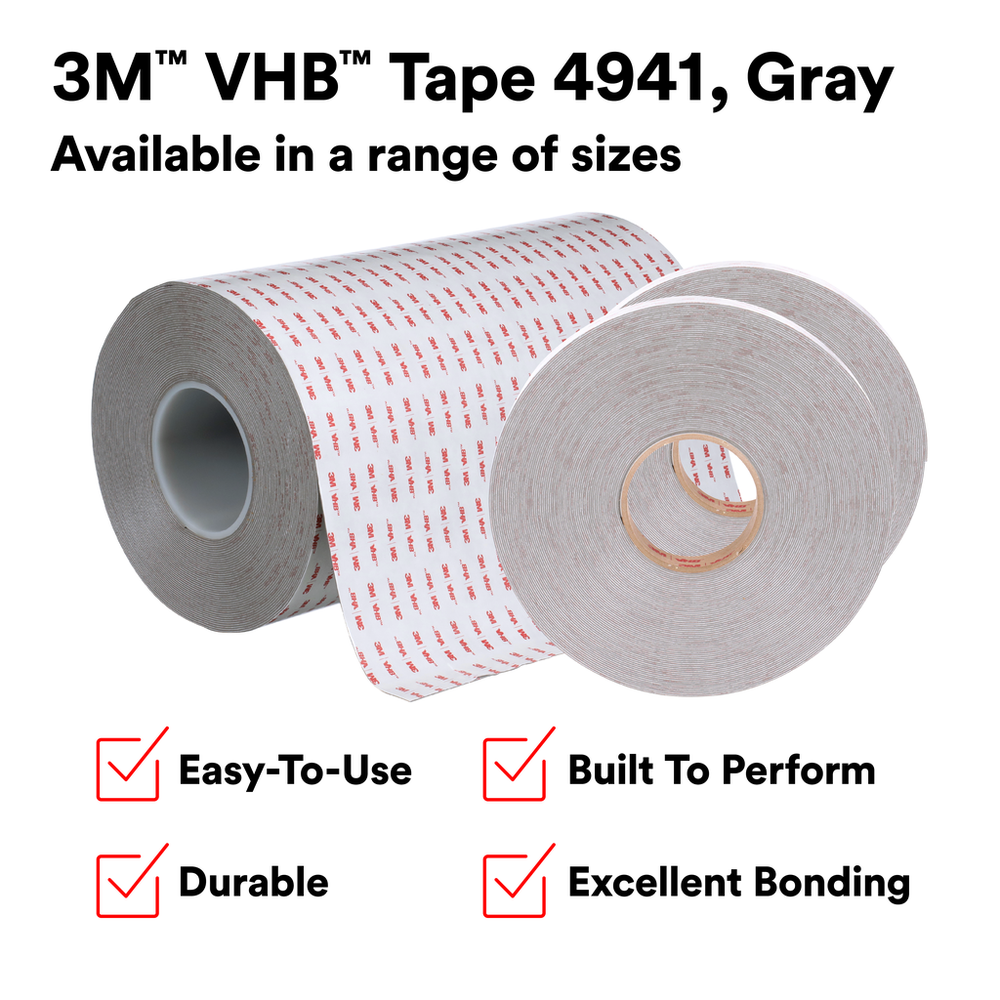

3M™ VHB™ Tape 4941, Gray, 1 3/8 in x 36 yd, 45 mil, 6 Roll/Case - 7010302229

Name: 3M™ VHB™ Tape 4941, Gray, 1 3/8 in x 36 yd, 45 mil, 6 Roll/Case - 7010302229
Brand: 3M Products & Supplies
SKU: 7010302229
Price: 1315.58 USD
Availability: InStock

Sold As: 6-Pack

SKU: 7010302229

MPN: 7010302229

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 00048011585444

3M ID: 70006406915

5 Digit UPC: 58544

$1,315.58 ($219.26 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ VHB™ Tape 4941 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941.

Features

MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture
FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives

Spec Sheet

Downloads

Specifications

Shelf Life	730
Country of Origin	United States
Minimum Operating Temperature (Celsius)	0.0
Total Tape Thickness without Liner (Imperial)	45.0
Core Size (Imperial)	3.0
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Width (Imperial)	1.37
Core Size (Metric)	76.2
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Imperial)	36.0
Overall Length (Imperial) UOM	yd
Maximum Operating Temperature (Celsius)	149.0
Industries	Appliance, Consumer Goods, Converter Solutions, General Industrial, MRO, Metalworking, Signage, Transportation
Core Size (Imperial) UOM	in
Maximum Operating Temperature (Fahrenheit)	300.0
Total Tape Thickness without Liner (Metric)	1.1
Indoor/Outdoor	Indoor/Outdoor
Total Tape Thickness without Liner (Imperial) UOM	mil
Shelf Life UOM	Month
Minimum Operating Temperature (Fahrenheit)	0.0
Overall Width (Metric) UOM	mm
Core Size (Metric) UOM	mm
Units per Case	6.0
Elongation at Break UOM	Pertinent
Adhesive Type	Acrylic
Foam Type	Conformable
Overall Width (Metric)	34.9
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Length (Metric)	32.9
Overall Width (Imperial) UOM	in
Overall Length (Metric) UOM	m
Product Color	Gray
