3M Products & Supplies

3M™ VHB™ Tape 4941F, Gray, 1/2 in x 36 yd, 45 mil, Film Liner, Small Pack, 4 rolls per case - 7000028909

Sold As: 4-Pack
SKU: 7000028909
MPN: 7000028909
Lead Time: 10 working days.
UPC: 021200261978
3M ID: 70006196508
5 Digit UPC: 26197
$423.26 ($105.81 / Count)
Hurry up! Current stock:

Product Description

Dream, Design, Deliver with 3M™ VHB™ Tape 4941. It is a gray, 0.045 in (1.1 mm), multi-purpose acrylic adhesive with a conformable, foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond to a variety of surfaces.

Features

  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Allows the use of thinner, lighter weight and dissimilar materials
  • Gray, 0.045 in (1.1 mm), multi-purpose adhesive and conformable acrylic foam core offers a good balance of strength and conformability
  • Creates a permanent seal against water, moisture and more
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • UL GREENGUARD and UL GREENGUARD Gold Certified, contributing to LEED Credit
  • Virtually invisible fastening keeps surfaces smooth
  • Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives
  • Eliminate drilling, grinding, refinishing, screwing, welding and associated clean-up

Downloads

Specifications

Core Size (Imperial)3 in
Overall Length (Imperial)36 yd
Overall Thickness (Metric)1.1 mm
Product ColorGray

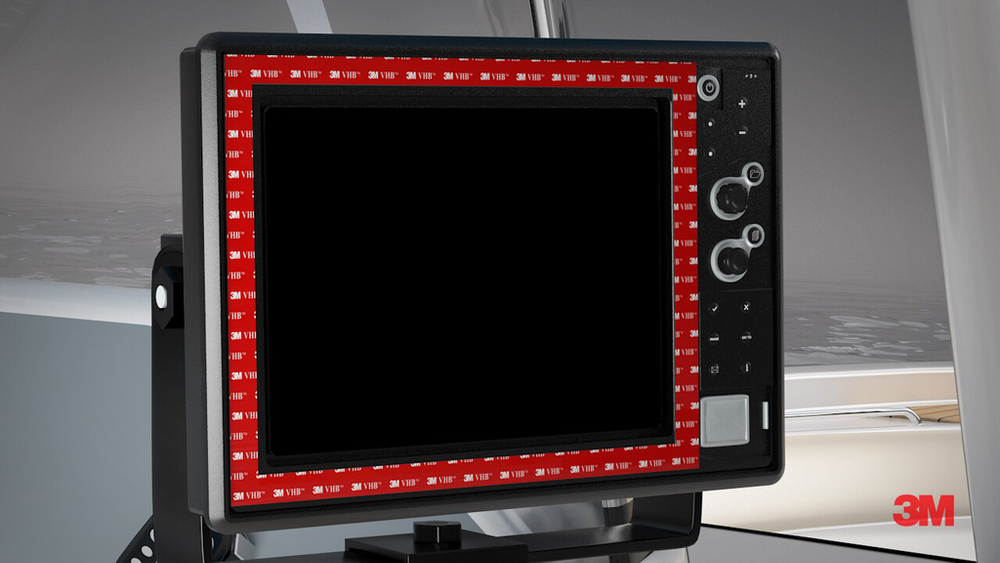

Assembly TypeMounting and Trim Attachment - Panel to Frame / Stiffener to Panel
Foam TypeConformable
ApplicationPanel to Frame/Stiffner to Panel Assembly - Mounting and Trim Attachment - Bonding Panels to Metal Frames - Gasket Assembly
Backing (Carrier) Thickness (Imperial)5 mil
Maximum Operating Temperature (Celsius)149 Degree Celsius
Overall Width (Imperial)0.5 in
Indoor/OutdoorIndoor/Outdoor
Temperature Resistance - Initial300 Degree Fahrenheit
Overall Width (Metric)12.7 mm
SubstrateMetal - Medium Surface Energy, (38-39 Dynes/cm) - HSE Plastics and Glass - Glass - Plastics (Flexible Vinyl) - High Surface Energy, (400-1100 Dynes/cm) - Paint - Medium-High Surface Energy, (42-50 Dynes/cm)
Backing Thickness (Imperial)5 mil
Primary LinerPolyethylene (PE) Film
Foam ConformabilityConformable
Application Temperature-Environment (Metric)16 Degree Celsius
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)300 Degree Fahrenheit
Product Number4941
Overall Length (Metric)32.9 m
Product FormRoll
Substrate 1High Surface Energy Plastic - Metal - Plasticized Vinyl - Sealed Wood - Glass - Paint
Overall Thickness (Imperial)45 mil
Application Temperature-Environment60 Degrees Fahrenheit
Primary Liner Thickness (Imperial)5 mil
Substrate 2Metal - High Surface Energy Plastic - Glass - Plasticized Vinyl - Paint - Sealed Wood
