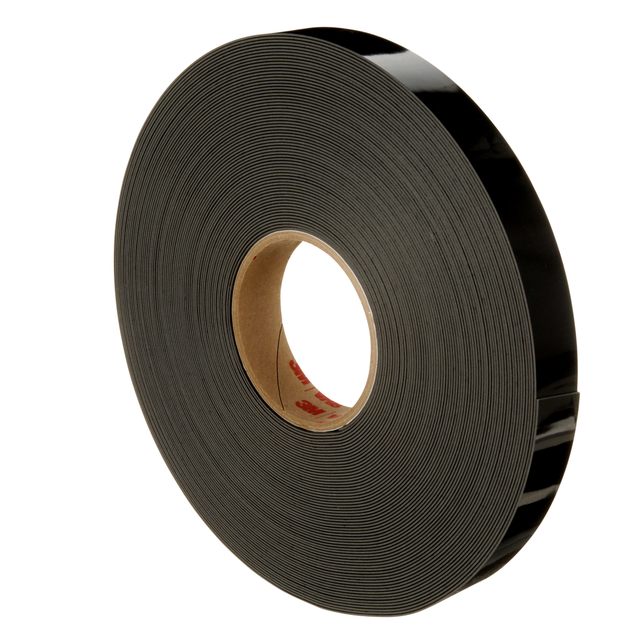

3M™ VHB™ Tape 4949, Black, 1 in x 36 yd, 45 mil, Small Pack, 2 rolls per case - 7000142866

Sold As: 2-Pack
SKU: 7000142866
MPN: 7000142866
Lead Time: 10 working days.
UPC: 021200646454
3M ID: 70006147642
5 Digit UPC: 64645
$430.46 ($215.23 / Count)
Hurry up! Current stock:

Product Description

Dream, Design, Deliver with our 3M™ VHB™ Tape 4949. It is a black, 0.045 in (1.1 mm), general purpose acrylic adhesive with a firm foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond to a variety of surfaces.

Features

  • Allows the use of thinner, lighter weight and dissimilar materials
  • Virtually invisible fastening keeps surfaces smooth
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives
  • Black, 0.045 in (1.1 mm), general purpose adhesive and firm acrylic foam core
  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Creates a permanent seal against water, moisture and more
  • Eliminate drilling, grinding, refinishing, screwing, welding and associated clean-up

Downloads

Specifications

Substrate 2Metal - Bare Metal - Rough Surfaces - Painted Surface, Easy-to-Bond (HSE) - Glass - HSE Plastics and Glass - Plastic, Easy-to-Bond (HSE) - Paint - Sealed Wood
Primary Liner Thickness (Imperial)2 mil
Overall Height (Imperial)45 mil
Product FormRoll
Carrier MaterialAcrylic Foam
ApplicationBonding Window Shade Side Channels
Primary LinerPolyester Film - Clear
Backing Thickness (Imperial)2 mil
Overall Length (Metric)32.92 m
Application Temperature-Environment (Metric)10 Degree Celsius
Core Size (Imperial)3 in
Foam ConformabilityFirm
Net Weight (Metric)0.97 kg
Overall Thickness (Metric)1.1 mm
Net Weight (Imperial)2.13 lb
Product ColorBlack
Temperature Resistance - Initial300 Degree Fahrenheit
Foam TypeFirm
Overall Width (Imperial)1 in
Design ChallengesImpact & Shock Absorption - Noise Vibration & Harshness Control NVH
Maximum Operating Temperature (Fahrenheit)300 Degree Fahrenheit
Product Number4949
Adhesive TypeAcrylic
Backing (Carrier) MaterialAcrylic Foam
Set Time
Maximum Operating Temperature (Celsius)149 Degree Celsius
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial)36 yd
Substrate 1Metal - Glass - Sealed Wood
SubstrateMetal - Glass - Paint - Rough Surfaces - HSE Plastics and Glass - High Surface Energy, (400-1100 Dynes/cm) - Medium-High Surface Energy, (42-50 Dynes/cm)
Backing (Carrier) Thickness (Imperial)2 mil
Overall Width (Metric)25.4 mm
Application Temperature-Environment50 Degrees Fahrenheit
Overall Height (Metric)1.14 mm
Backing MaterialFoam
Overall Thickness (Imperial)45 mil
