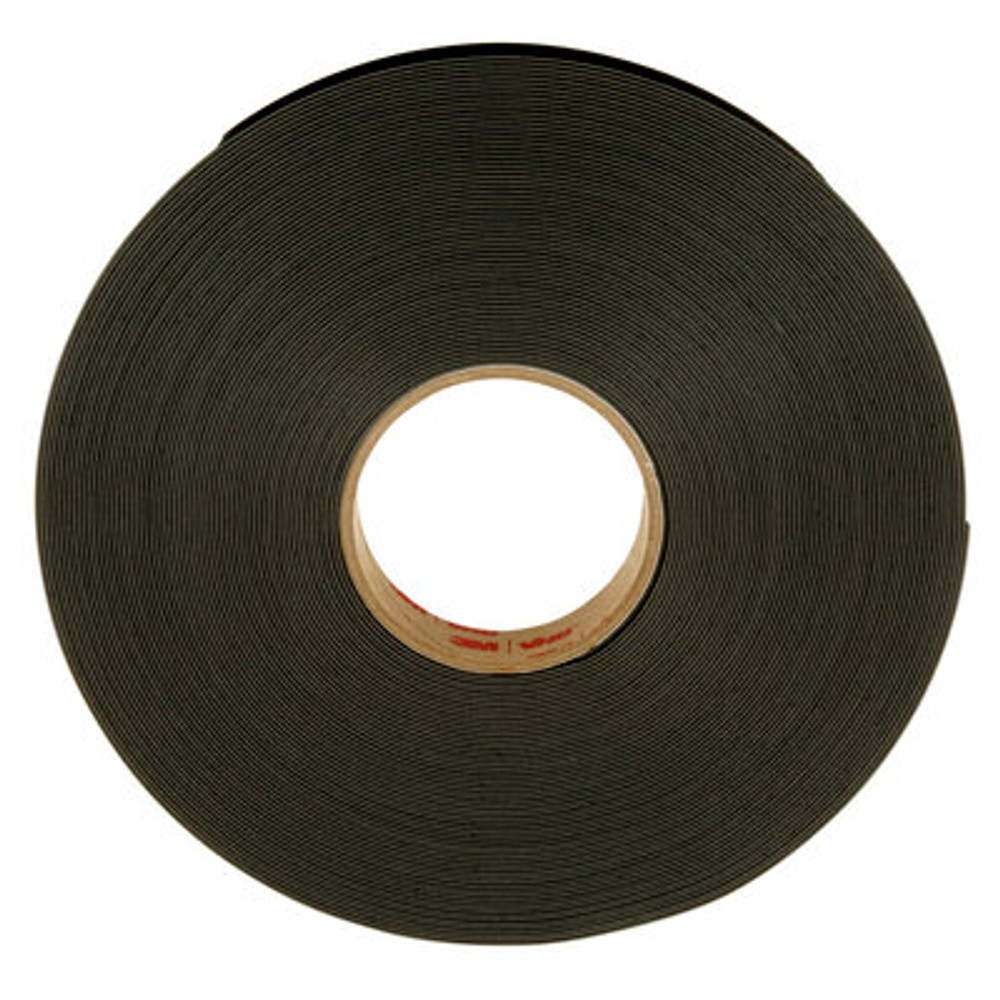

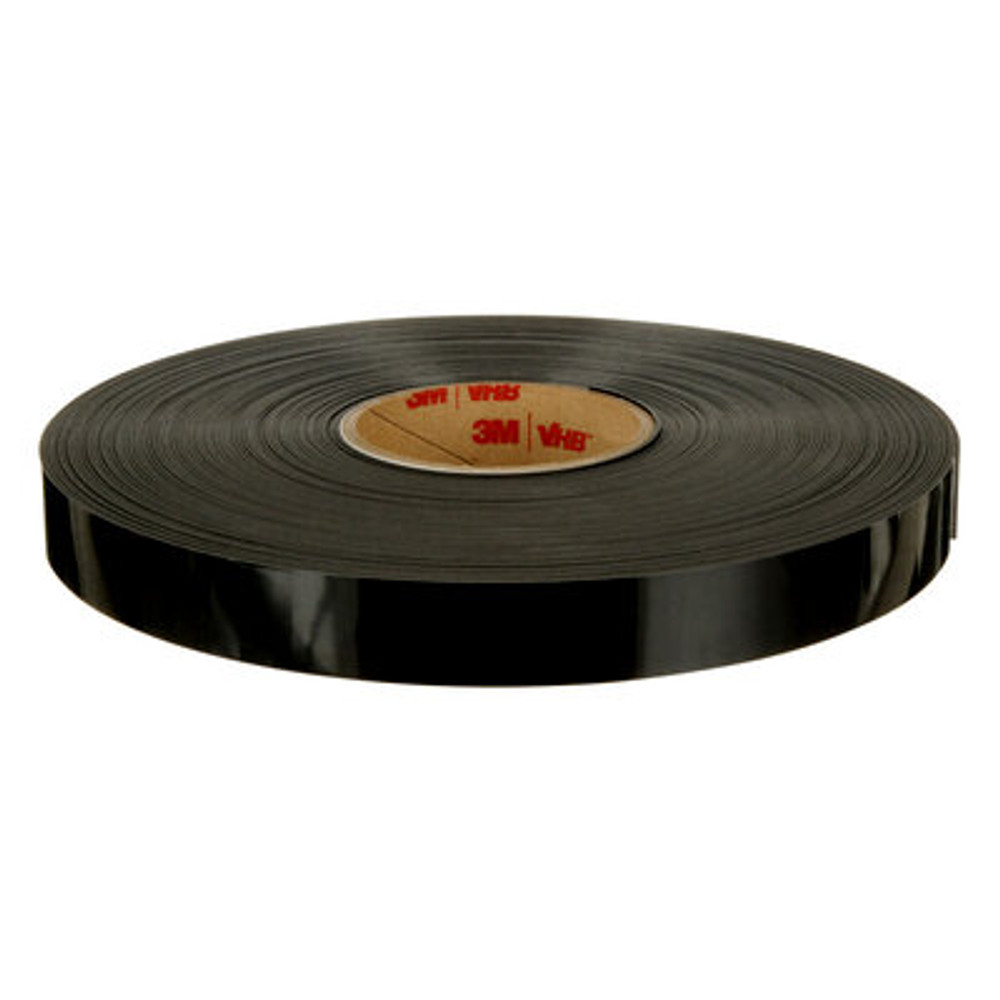

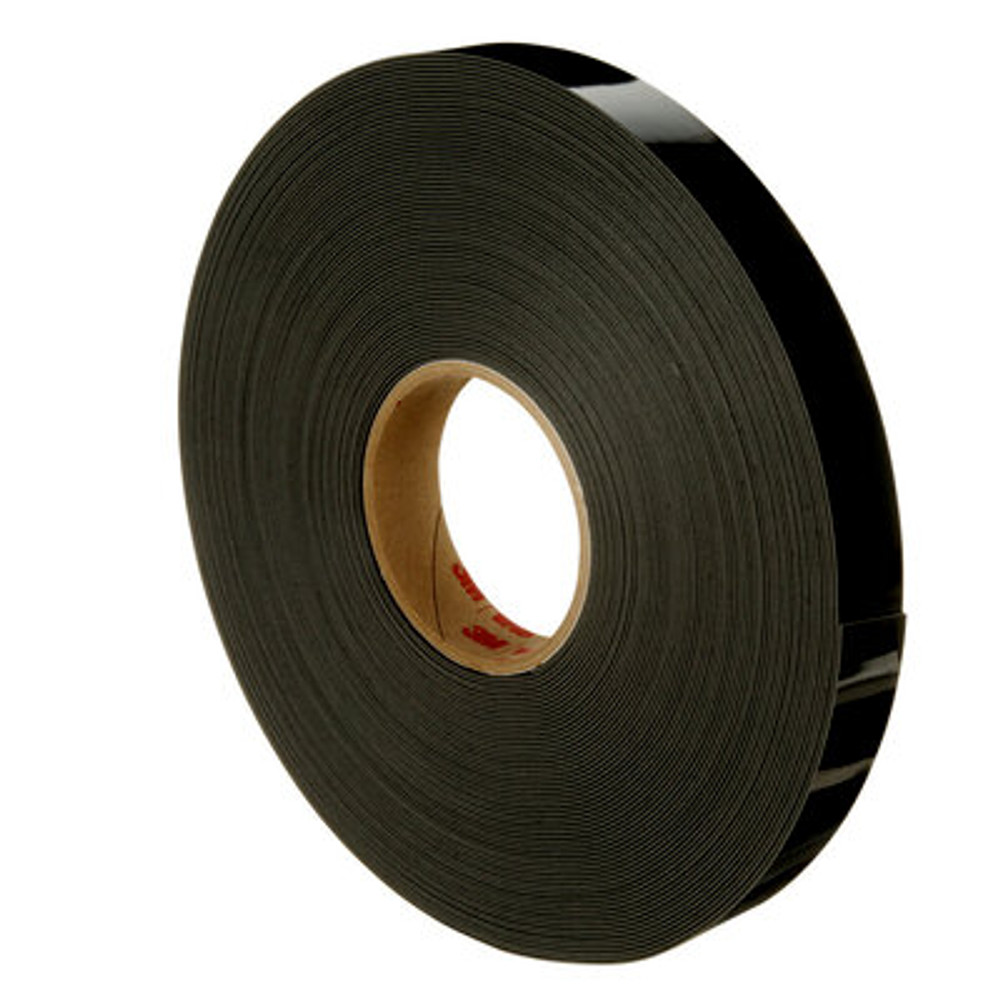

3M VHB Tape 4949, Black, 1 in x 36 yd, 45 mil

3M™ VHB™ Tape 4949, Black, 3/4 in x 36 yd, 45 mil, Small Pack, 3 rolls per case - 7000123495

Previous Next

3M Products & Supplies

3M™ VHB™ Tape 4949, Black, 3/4 in x 36 yd, 45 mil, Small Pack, 3 rolls per case - 7000123495

Name: 3M™ VHB™ Tape 4949, Black, 3/4 in x 36 yd, 45 mil, Small Pack, 3 rolls per case - 7000123495
Brand: 3M Products & Supplies
SKU: 7000123495
Price: 518.16 USD
Availability: InStock

Sold As: 3-Pack

SKU: 7000123495

MPN: 7000123495

Lead Time: 10 working days.

UPC: 021200646447

3M ID: 70006147634

5 Digit UPC: 64644

$518.16 ($172.72 / Count)

Hurry up! Current stock:

Quantity:

Product Description

Dream, Design, Deliver with our 3M™ VHB™ Tape 4949. It is a black, 0.045 in (1.1 mm), general purpose acrylic adhesive with a firm foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond to a variety of surfaces.

Features

Black, 0.045 in (1.1 mm), general purpose adhesive and firm acrylic foam core
Pressure sensitive adhesive bonds on contact to provide immediate handling strength
Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives
Virtually invisible fastening keeps surfaces smooth
Eliminate drilling, grinding, refinishing, screwing, welding and associated clean-up
Allows the use of thinner, lighter weight and dissimilar materials
Creates a permanent seal against water, moisture and more
Fast and easy-to-use permanent bonding method provides high strength and long-term durability

Downloads

Document 2

Document 1

Specifications

Primary Liner Thickness (Imperial)	2 mil
Design Challenges	Impact & Shock Absorption - Noise Vibration & Harshness Control NVH
Substrate 1	Metal - Glass - Sealed Wood
Product Color	Black
Product Form	Roll
Backing (Carrier) Material	Acrylic Foam
Overall Width (Imperial)	0.75 in
Application Temperature-Environment	50 Degrees Fahrenheit
Overall Length (Imperial)	36 yd
Backing Thickness (Imperial)	2 mil
Backing Material	Foam
Substrate 2	Rough Surfaces - HSE Plastics and Glass - Metal - Paint - Glass - Bare Metal - Plastic, Easy-to-Bond (HSE) - Painted Surface, Easy-to-Bond (HSE) - Sealed Wood
Foam Type	Firm
Core Size (Imperial)	3 in
Set Time
Foam Conformability	Firm
Maximum Operating Temperature (Celsius)	149 Degree Celsius
Overall Thickness (Imperial)	45 mil
Backing (Carrier) Thickness (Imperial)	2 mil
Adhesive Type	Acrylic
Application	Bonding Window Shade Side Channels
Maximum Operating Temperature (Fahrenheit)	300 Degree Fahrenheit
Substrate	Paint - Glass - Rough Surfaces - HSE Plastics and Glass - Metal - High Surface Energy, (400-1100 Dynes/cm) - Medium-High Surface Energy, (42-50 Dynes/cm)
Overall Thickness (Metric)	1.1 mm
Overall Height (Metric)	1.14 mm
Primary Liner	Polyester Film - Clear
Overall Length (Metric)	32.92 m
Carrier Material	Acrylic Foam
Net Weight (Metric)	2.12 kg
Application Temperature-Environment (Metric)	10 Degree Celsius
Overall Width (Metric)	19.05 mm
Temperature Resistance - Initial	300 Degree Fahrenheit
Product Number	4949
Net Weight (Imperial)	4.67 lb
Overall Height (Imperial)	45 mil
Indoor/Outdoor	Indoor/Outdoor
