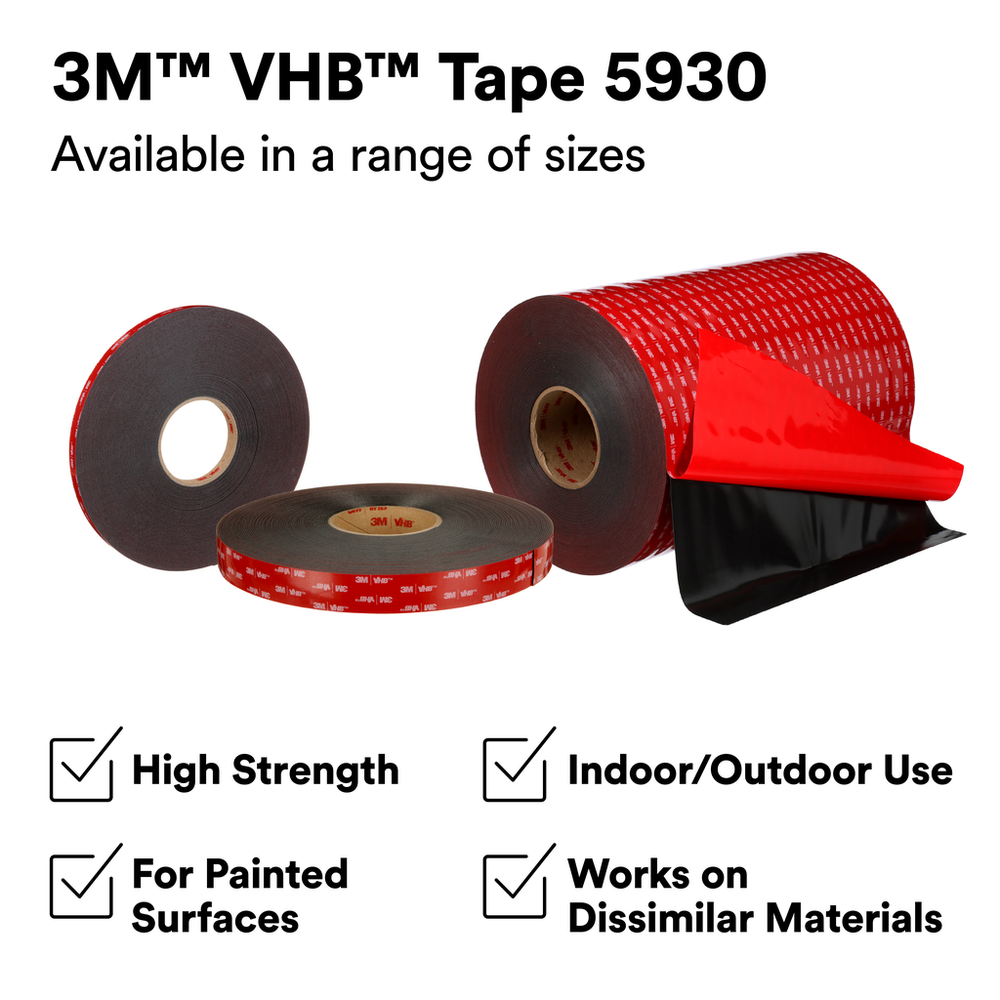

3M™ VHB™ Tape 5930, Black, 20 1/2 in x 72 yd, 32 mil - 7010535735

Name: 3M™ VHB™ Tape 5930, Black, 20 1/2 in x 72 yd, 32 mil - 7010535735
Brand: 3M Products & Supplies
SKU: 7010535735
Price: 5515.1 USD
Availability: InStock

SKU: 7010535735

MPN: 7010535735

Made to Order: For a lead time estimate, please send your request to [email protected]

3M ID: CY998784961

5 Digit UPC: #VALUE!

$5,515.10 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ VHB™ Tape 5930 is a double-sided tape comprised of a multi-purpose modified acrylic adhesive with a conformable, foam core that delivers a total thickness of 32 mil (0.8 mm) when applied and requires no curing time. The advanced closed-cell acrylic technology offers secure bonding that performs on many painted and powder coated surfaces. Engineered to be strong, it can replace rivets, welds, and screws while providing faster production by eliminating the need for drilling, welding, grinding, and project cleanup. Offering seamless joining and minimal surface preparation, this easy-to-use bonding method keeps surfaces smooth and aesthetically pleasing resulting in a professional application on thin, lightweight, and dissimilar materials. It performs in applications for short-term use (up to four hours) at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C). This tape balances strength, viscoelasticity, conformability, and adhesion to various surfaces, such as stainless steel. These attributes make 3M™ VHB™ Tape 5930 a reliable choice to take on a variety of bonding and sealing applications in transportation, appliance, electronics, construction, signage, and general industrial. Discover the many ways to apply the powerful bonding potential of 3M™ VHB™ Tape 5930.

Features

MULTI-SURFACE: Adheres to various materials, such as stainless steel, and works with minimal surface preparation
A GO-TO SOLUTION: Excels across a variety of markets, such as transportation, appliance, electronics, construction, signage, metalworking, and general industrial

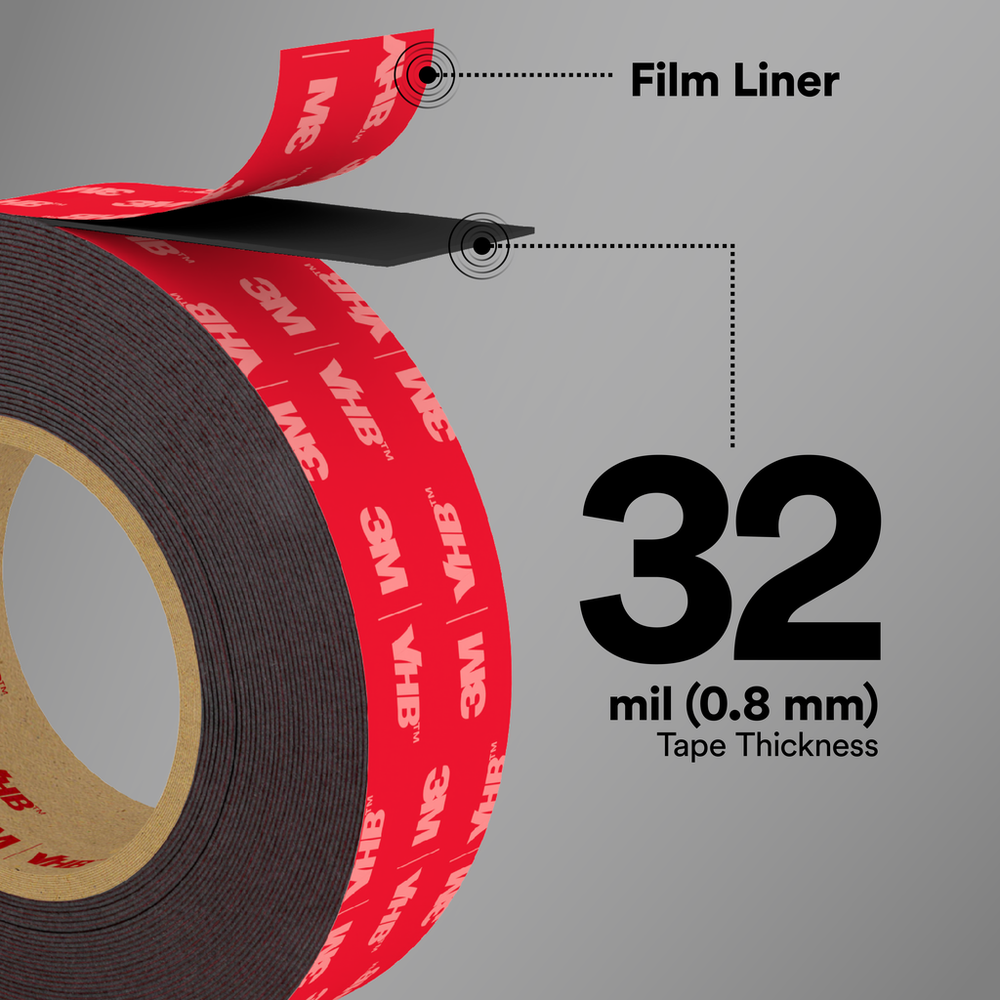

SMOOTH AND SEAMLESS: With a thickness of 32 mil (0.8 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
BUILT TO PERFORM: Delivers high shear strength, conformability, and surface adhesion due to an acrylic foam core and multi-purpose adhesive
RELIABLE AND TOUGH: Offers excellent indoor and outdoor durability and performance, withstanding long-term use at a temperature up to 200 °F (93 °C)
FOR POWDER COATED SURFACES: Provides a quick and easy all-acrylic bonding method on many painted and powder coated surfaces with immediate handling strength—no curing time needed

Spec Sheet

Downloads

Document Brochure 2

Document Brochure 1

Spec Sheet

Specifications

Shelf Life	730
Country of Origin	United States
Foam Type	Very Conformable
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Metric) UOM	m
Overall Width (Metric) UOM	mm
Adhesive Type	Modified Acrylic
Overall Width (Metric)	520.7
Overall Width (Imperial)	12.5
Total Tape Thickness without Liner (Imperial)	32.0
Industries	Metalworking
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Overall Width (Imperial) UOM	in
Maximum Operating Temperature (Fahrenheit)	300.0
Indoor/Outdoor	Indoor/Outdoor
Product Color	Black
Overall Length (Imperial)	72.0
Overall Length (Imperial) UOM	yd
Overall Length (Metric)	65.84
Total Tape Thickness without Liner (Imperial) UOM	mil
Maximum Operating Temperature (Celsius)	149.0
Core Size (Imperial)	3.0
Total Tape Thickness without Liner (Metric)	0.813
Total Tape Thickness without Liner (Metric) UOM	mm
Core Size (Imperial) UOM	in
