3M™ VHB™ Tape 5930, Black, 20 in x 144 yd, 32 mil - 7010535800

Name: 3M™ VHB™ Tape 5930, Black, 20 in x 144 yd, 32 mil - 7010535800
Brand: 3M Products & Supplies
SKU: 7010535800
Price: 10761.16 USD
Availability: InStock

SKU: 7010535800

MPN: 7010535800

Made to Order: For a lead time estimate, please send your request to [email protected]

3M ID: CY998785612

5 Digit UPC: #VALUE!

$10,761.16 each

Hurry up! Current stock:

Quantity:

Product Description

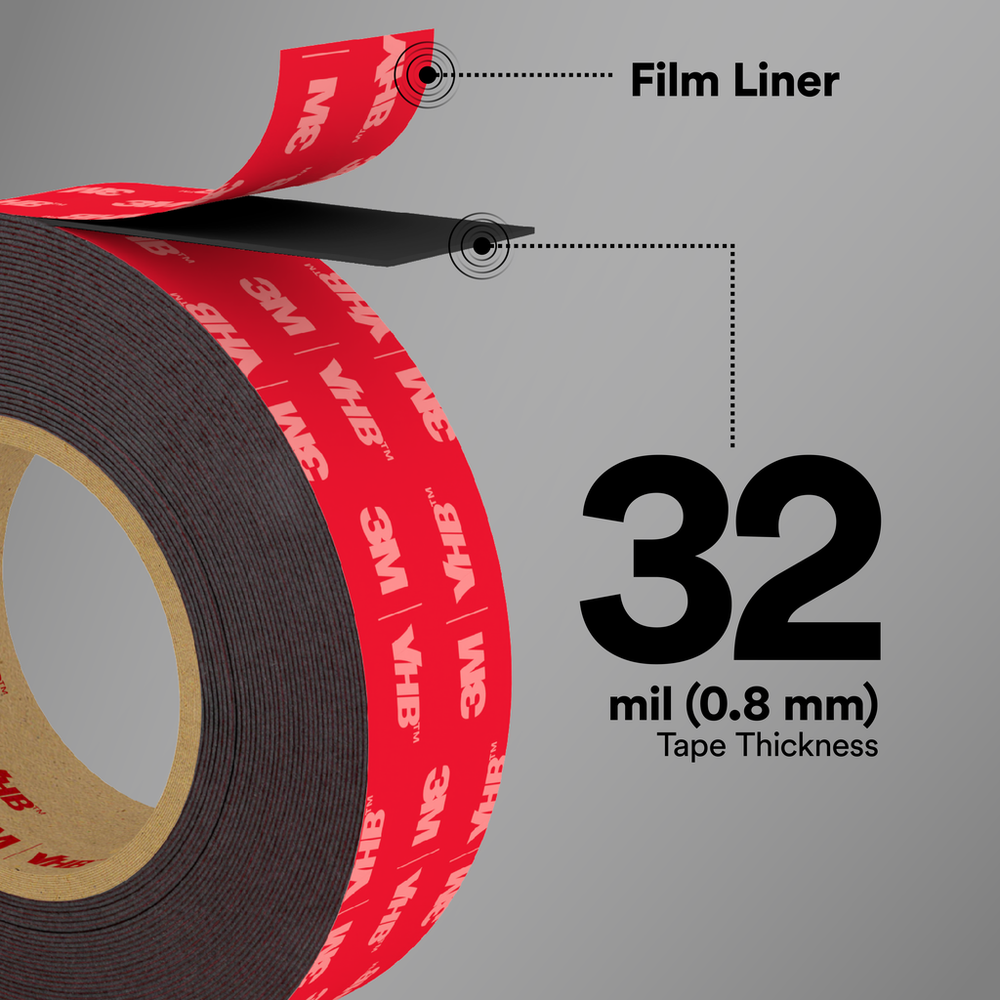

3M™ VHB™ Tape 5930 is a double-sided tape comprised of a multi-purpose modified acrylic adhesive with a conformable, foam core that delivers a total thickness of 32 mil (0.8 mm) when applied and requires no curing time. The advanced closed-cell acrylic technology offers secure bonding that performs on many painted and powder coated surfaces. Engineered to be strong, it can replace rivets, welds, and screws while providing faster production by eliminating the need for drilling, welding, grinding, and project cleanup. Offering seamless joining and minimal surface preparation, this easy-to-use bonding method keeps surfaces smooth and aesthetically pleasing resulting in a professional application on thin, lightweight, and dissimilar materials. It performs in applications for short-term use (up to four hours) at a temperature up to 300 °F (149 °C) or long-term use withstanding up to 200 °F (93 °C). This tape balances strength, viscoelasticity, conformability, and adhesion to various surfaces, such as stainless steel. These attributes make 3M™ VHB™ Tape 5930 a reliable choice to take on a variety of bonding and sealing applications in transportation, appliance, electronics, construction, signage, and general industrial. Discover the many ways to apply the powerful bonding potential of 3M™ VHB™ Tape 5930.

Features

A GO-TO SOLUTION: Excels across a variety of markets, such as transportation, appliance, electronics, construction, signage, metalworking, and general industrial
SMOOTH AND SEAMLESS: With a thickness of 32 mil (0.8 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
RELIABLE AND TOUGH: Offers excellent indoor and outdoor durability and performance, withstanding long-term use at a temperature up to 200 °F (93 °C)
MULTI-SURFACE: Adheres to various materials, such as stainless steel, and works with minimal surface preparation
FOR POWDER COATED SURFACES: Provides a quick and easy all-acrylic bonding method on many painted and powder coated surfaces with immediate handling strength—no curing time needed
BUILT TO PERFORM: Delivers high shear strength, conformability, and surface adhesion due to an acrylic foam core and multi-purpose adhesive

Spec Sheet

Downloads

Document Brochure 1

Document Brochure 2

Spec Sheet

Specifications

Shelf Life	730
Country of Origin	United States
Maximum Operating Temperature (Fahrenheit)	300.0
Overall Length (Metric) UOM	m
Total Tape Thickness without Liner (Imperial) UOM	mil
Overall Width (Imperial)	20.0
Overall Width (Metric)	508.0
Total Tape Thickness without Liner (Metric) UOM	mm
Core Size (Imperial)	3.0
Overall Length (Metric)	131.67
Foam Type	Very Conformable
Overall Width (Imperial) UOM	in
Industries	Metalworking
Total Tape Thickness without Liner (Imperial)	32.0
Core Size (Imperial) UOM	in
Overall Length (Imperial) UOM	yd
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Product Color	Black
Maximum Operating Temperature (Celsius)	149.0
Total Tape Thickness without Liner (Metric)	0.813
Adhesive Type	Modified Acrylic
Indoor/Outdoor	Indoor/Outdoor
Overall Width (Metric) UOM	mm
Maximum Operating Temperature (Celsius) UOM	Degree
Overall Length (Imperial)	144.0
