3M Products & Supplies

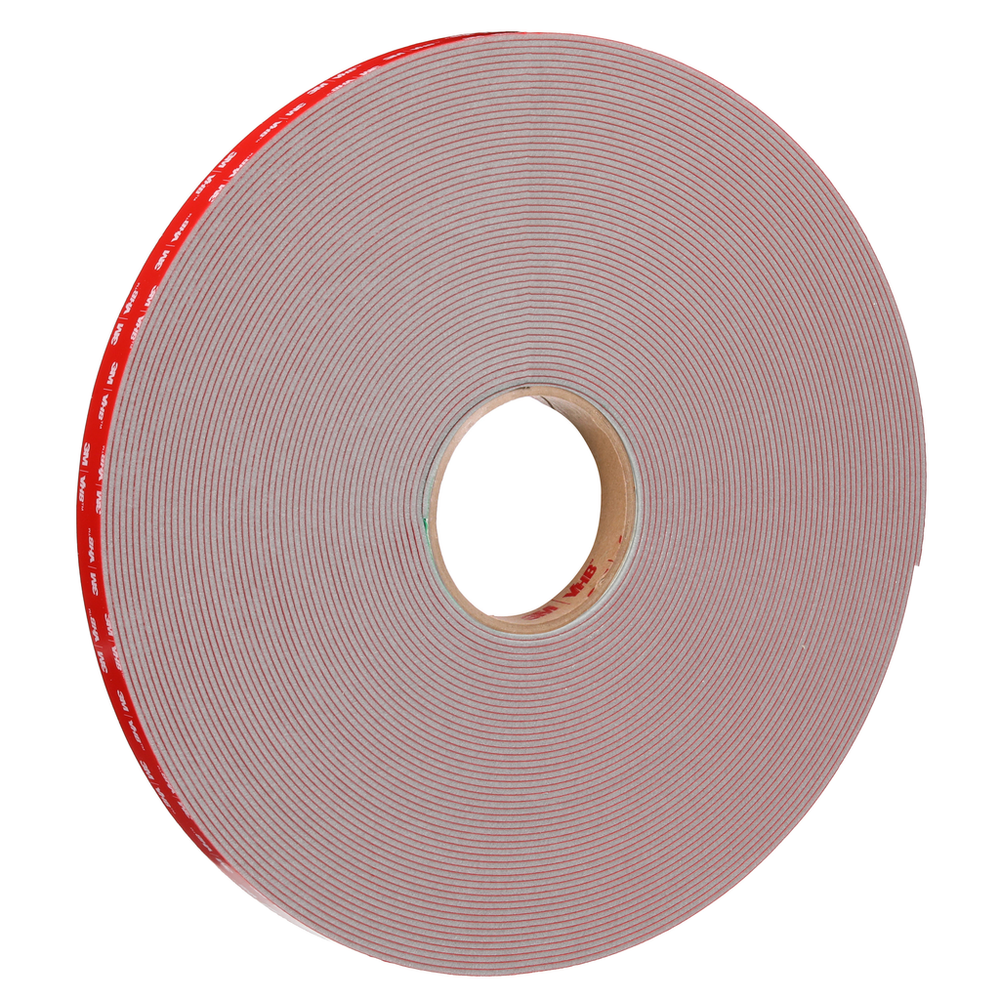

3M™ VHB™ Tape Max-230GF, Gray, 3/4 in x 36 yd, 90 mil, Film Liner, 12 Roll/Case - 7100364693

SKU: 7100364693
MPN: 7100364693
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060759764
3M ID: 70011120568
$1,151.53
Hurry up! Current stock:

Product Description

3M™ VHB™ Tape Max Series is a high-performance, double-sided acrylic foam tape designed to replace traditional mechanical fasteners, some forms of welding, and liquid adhesives. The strongest acrylic foam tape in the 3M™ VHB™ Tape portfolio, this tape is made for more demanding applications — while streamlining production by eliminating the need for drilling, welding, and subsequent cleanup. Versatility is also a key feature of this tape series, as it offers excellent adhesion to a wide range of materials, such as metals and high surface energy substrates. This creates a smooth and seamless finish for enhanced aesthetics. Use 3M™ VHB™ Tape Max Series with 3M™ VHB™ Tape Max Promoter to ensure adequate bond strength across a variety of surfaces and environmental conditions.

Features

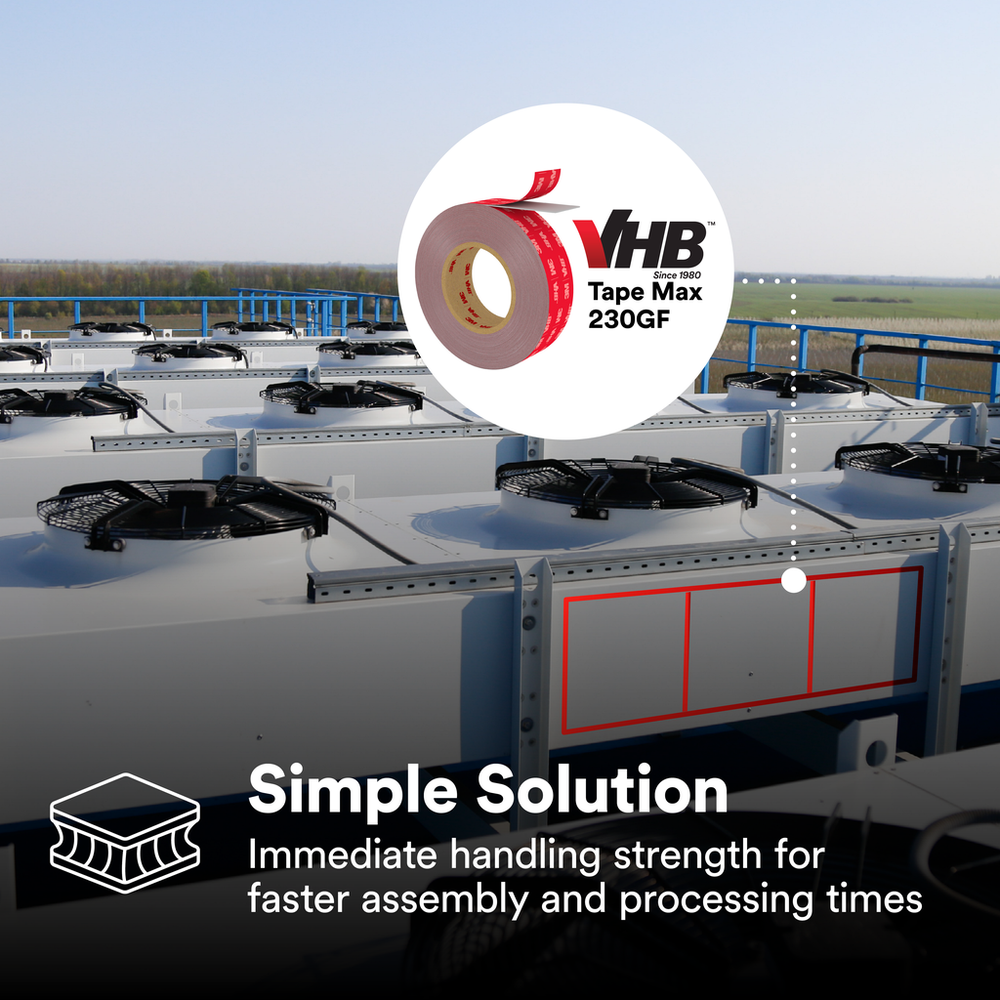

  • SIMPLIFIED SOLUTION: Immediate handling strength allows for faster assembly and processing times when compared to liquid adhesives
  • BONDING ALTERNATIVE: Designed to replace mechanical fasteners, some forms of welding, and liquid adhesives in applications requiring extreme strength
  • DO MORE WITH LESS: Offers greater design flexibility and may reduce material usage compared to other acrylic foam tapes by using narrower bond lines and less total bond area
  • PERFECT PAIRING: Designed to be used with 3M™ VHB™ Tape Max Promoter to achieve high bond strength on a variety of substrates

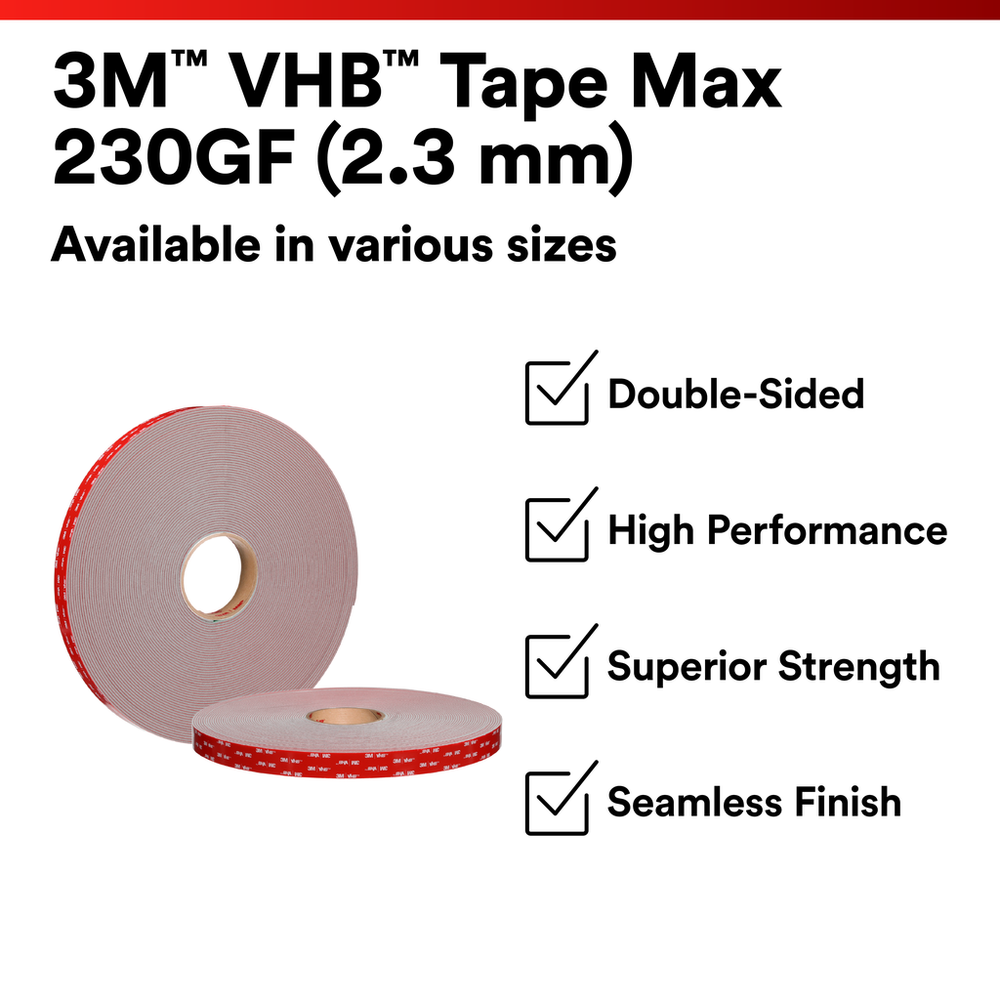

  • MULTIPLE SIZES: Available in thicknesses of 0.6 mm (060GF), 1.1 mm (110GF), 1.6 mm (160GF), and 2.3 mm (230GF)

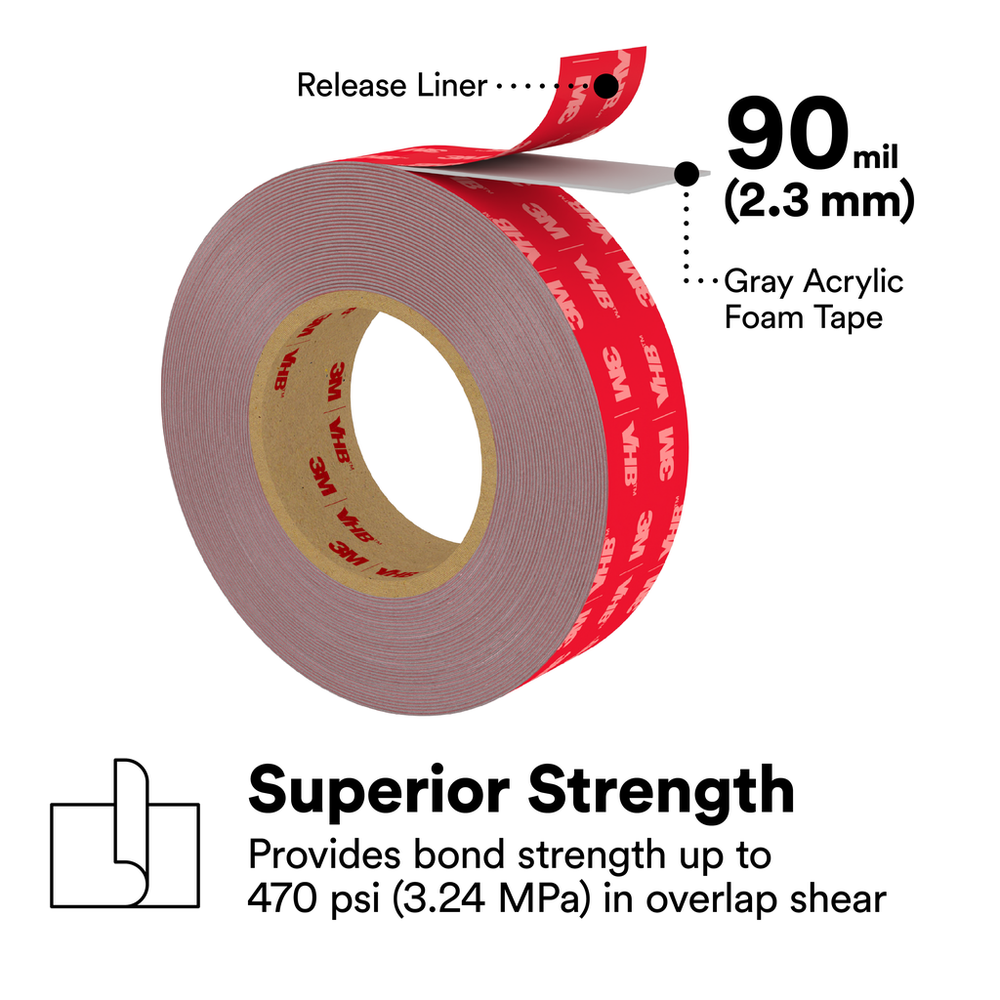

  • SUPERIOR BOND STRENGTH: Provides bond strength up to 470 psi (3.24 MPa) in overlap shear, significantly higher than standard 3M™ VHB™ Tape
Spec Sheet



Downloads

Specifications

Core Size (Imperial)3.0
Total Tape Thickness without Liner (Imperial)90.6
Overall Length (Imperial)36.0
Shelf Life730
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)2.3
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)32.9
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Core Size (Metric) UOMmm
Overall Width (Imperial)0.75
Core Size (Metric)76.2
Shelf Life UOMMonth
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Product ColorGray
Foam TypeFirm
Indoor/OutdoorIndoor/Outdoor
Overall Width (Metric)19.05
Country of OriginGermany
Overall Length (Imperial) UOMyd
Core Size (Imperial) UOMin
