3M Products & Supplies

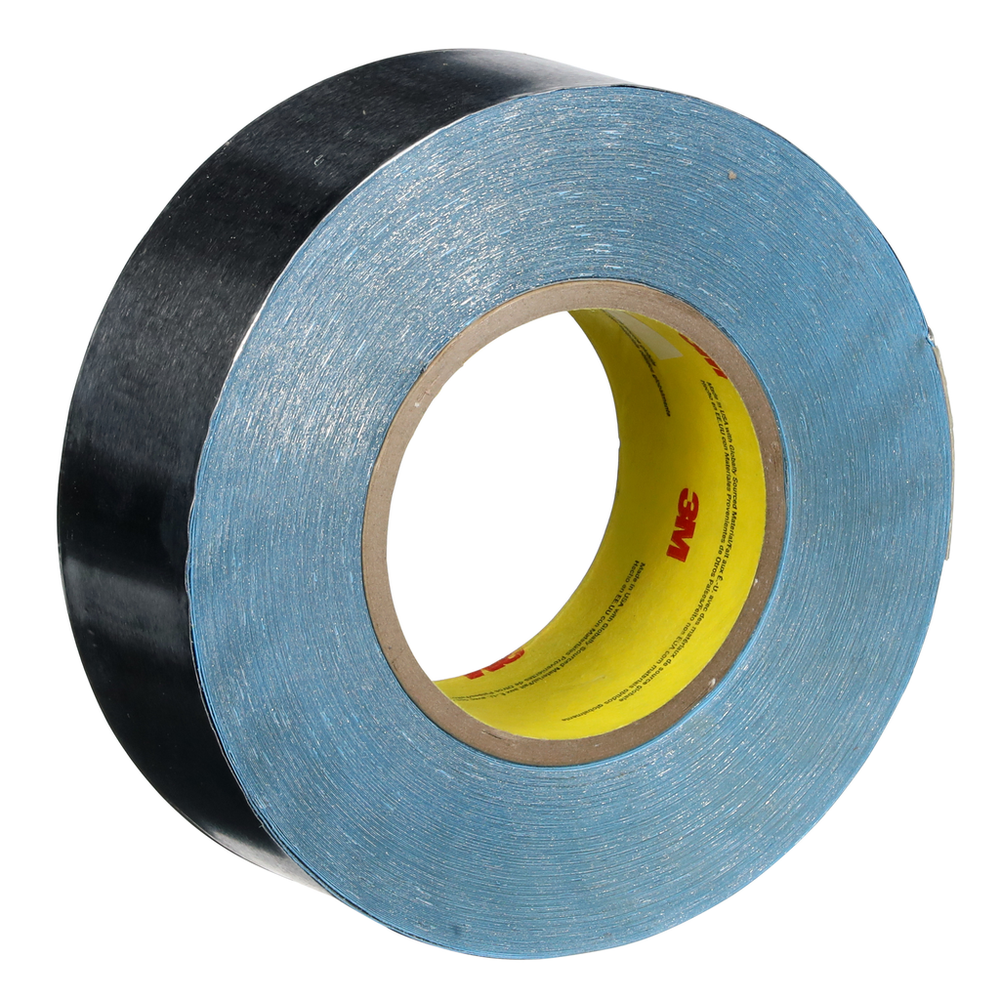

3M™ Vibration Damping Tape 434, Silver, 2.75 in x 60 yd, 7.5 mil, 4 Rolls/Case - 7000049095

Sold As: 12-Pack
SKU: 7000049095
MPN: 7000049095
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138953959
3M ID: 70006388121
5 Digit UPC: 95395
$5,306.44 ($442.20 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 434 is a low temperature, silver, dead soft aluminum foil tape. The constraining layer is coated with a pressure sensitive viscoelastic polymer on a blue polyethylene easy release liner. This tape absorbs and dissipates vibration and reduces noise. It is useful for a variety of applications in the aerospace, automotive, construction, appliance and MRO industries.

Features

  • Cold temperature resistance allows tape to perform at extremely low temperatures (-76°F/-60°C)
  • Linered construction offer diecutting capabilities
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Vibration damping properties make this tape an ideal choice for a variety of applications in industries such as aerospace, transportation, appliance, general industrial and more
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary LinerPolyethylene
Tensile Strength (Imperial) UOMoz/in
Maximum Operating Temperature (Celsius)20.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric)0.14
Backing (Carrier) Thickness (Metric)0.14
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)60.0
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)87.6
Overall Width (Metric) UOMmm
Overall Length (Metric)54.86
Tensile Strength (Imperial)800.0
Minimum Operating Temperature (Celsius)-60.0
Adhesive TypeViscoelastic Polymer
Overall Width (Metric)69.85
Shelf Life UOMMonth
Back Side Adhesive Thickness (Metric)0.14
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case4.0
Backing (Carrier) Thickness (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Product ColorSilver
Minimum Operating Temperature (Fahrenheit)-76.0
Overall Width (Imperial)2.75
Elongation at Break12
ApplicationVibration Damping
Total Tape Thickness without Liner (Imperial)5.5
Maximum Operating Temperature (Fahrenheit)68.0
Backing (Carrier) Thickness (Imperial)5.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing MaterialAluminum Foil
