3M Products & Supplies

3M™ Vibration Damping Tape 434, Silver, 4 in x 60 yd, 7.5 mil, 3 Roll/Case - 7000001313

Sold As: 9-Pack
SKU: 7000001313
MPN: 7000001313
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138953829
3M ID: 70006387990
5 Digit UPC: 95382
$5,789.90 ($643.32 / Count)
Hurry up! Current stock:

Product Description

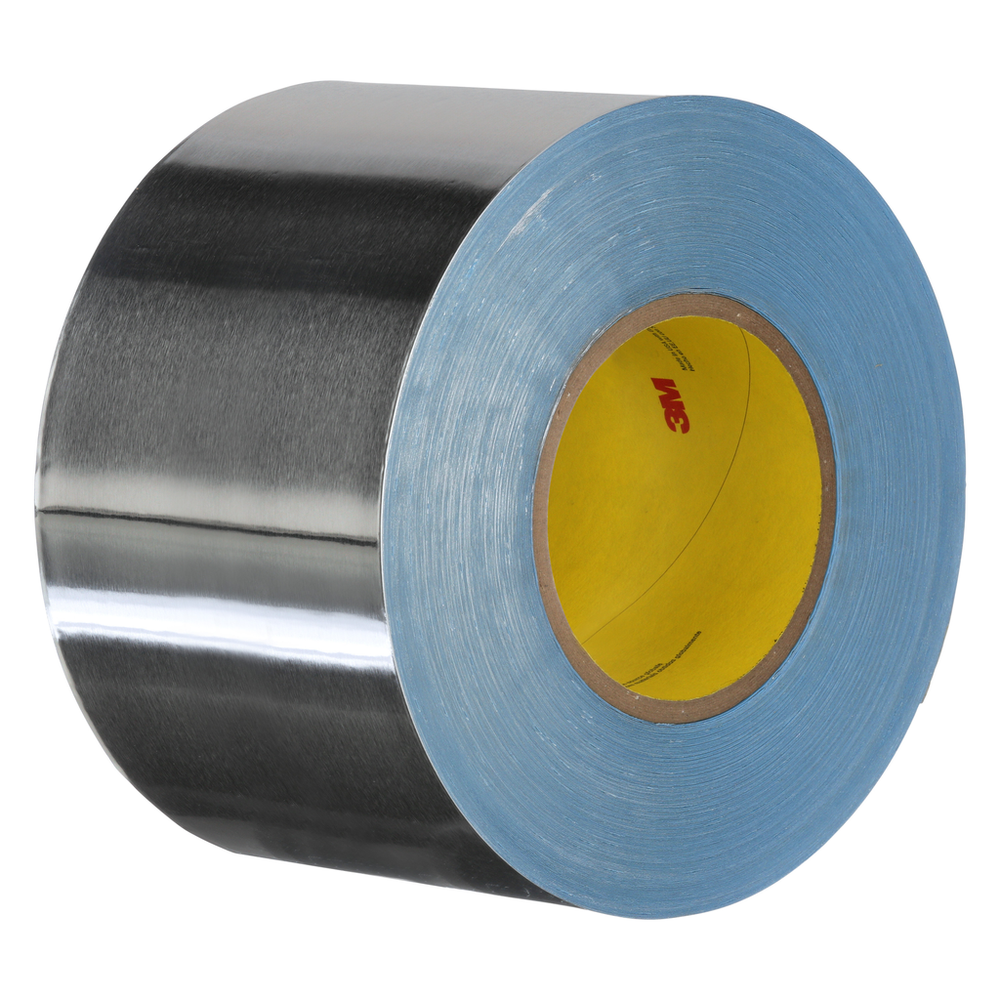

3M™ Vibration Damping Tape 434 is a low temperature, silver, dead soft aluminum foil tape. The constraining layer is coated with a pressure sensitive viscoelastic polymer on a blue polyethylene easy release liner. This tape absorbs and dissipates vibration and reduces noise. It is useful for a variety of applications in the aerospace, automotive, construction, appliance and MRO industries.

Features

  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Cold temperature resistance allows tape to perform at extremely low temperatures (-76°F/-60°C)
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
  • Vibration damping properties make this tape an ideal choice for a variety of applications in industries such as aerospace, transportation, appliance, general industrial and more
  • Linered construction offer diecutting capabilities
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)54.86
Adhesive TypeViscoelastic Polymer
Back Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)20.0
Primary LinerPolyethylene
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Imperial)4.0
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Metric)0.14
Maximum Operating Temperature (Fahrenheit)68.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break12
Units per Case3.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric)0.14
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)800.0
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorSilver
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.5
Overall Length (Imperial)60.0
Tensile Strength (Metric)87.6
Total Tape Thickness without Liner (Metric)0.14
Backing (Carrier) Thickness (Imperial)5.5
Minimum Operating Temperature (Celsius)-60.0
Backing MaterialAluminum Foil
Tensile Strength (Imperial) UOMoz/in
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-76.0
Overall Width (Metric) UOMmm
ApplicationVibration Damping
Overall Width (Metric)101.6
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
