3M Products & Supplies

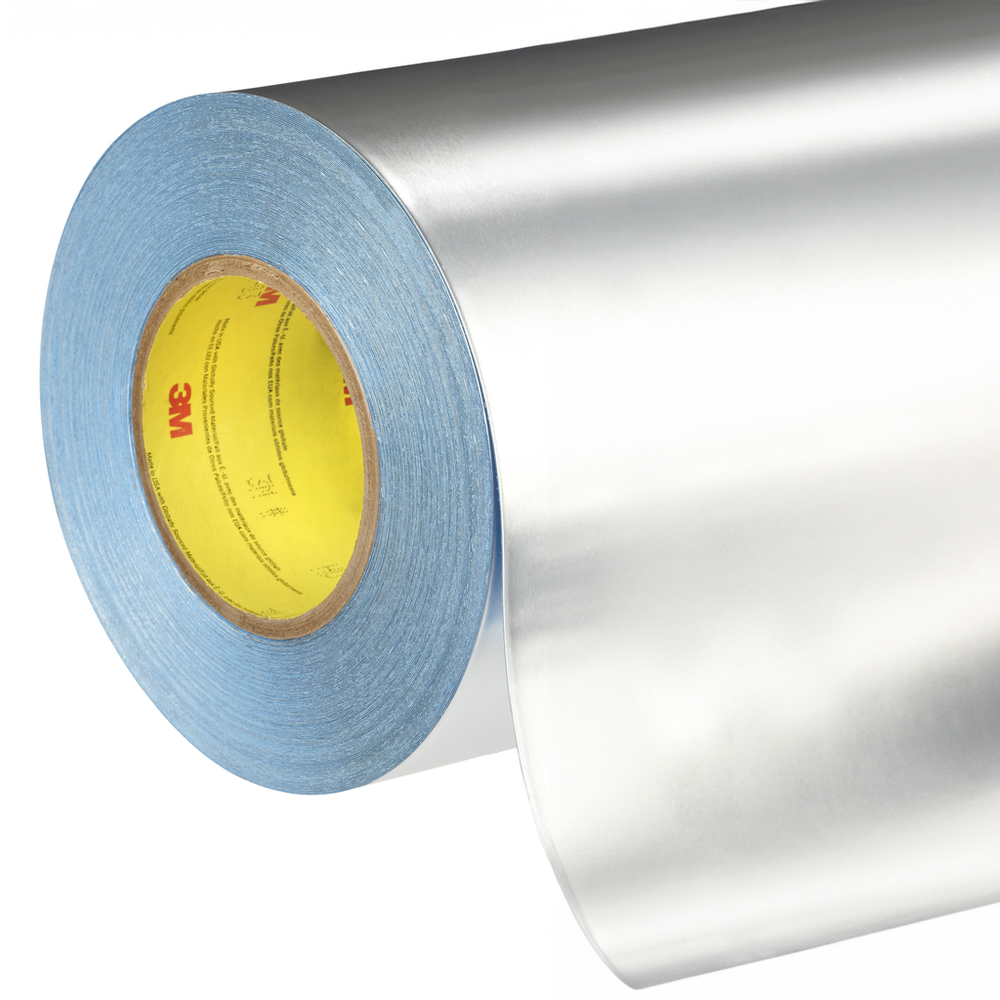

3M™ Vibration Damping Tape 435, Silver, 10 in x 36 yd, 13.5 mil, 1 Roll/Case - 7010295785

Sold As: 3-Pack
SKU: 7010295785
MPN: 7010295785
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956516
3M ID: 70006390671
5 Digit UPC: 95651
$4,737.56 ($1579.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 435 is a low temperature, silver, dead soft aluminum foil tape. The aluminum foil constraining layer is coated with a pressure sensitive viscoelastic polymer on an easy release liner. This tape absorbs and dissipates vibration, reducing noise and fatigue.

Features

  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Tape is suitable for damping vibration at extremely low temperatures (-76°F/-60°C)
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
  • Meets F.A.R. 25.853(a)
  • Linered for die-cutting to match parts for aerospace applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)87.6
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)8.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial)10.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial)800.0
Maximum Operating Temperature (Fahrenheit)68.0
ApplicationVibration Damping
Overall Width (Metric)254.0
Primary LinerPolyethylene
Maximum Operating Temperature (Celsius)20.0
Overall Length (Metric)32.91
Overall Length (Imperial)36.0
Overall Length (Metric) UOMm
Elongation at Break12
Backing MaterialAluminum Foil
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-76.0
Tensile Strength (Imperial) UOMoz/in
Shelf Life UOMMonth
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius)-60.0
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorSilver
Units per Case1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)5.5
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeViscoelastic Polymer
Backing (Carrier) Thickness (Metric)0.2
Specifications MetFAR 25.853(a)
