3M Products & Supplies

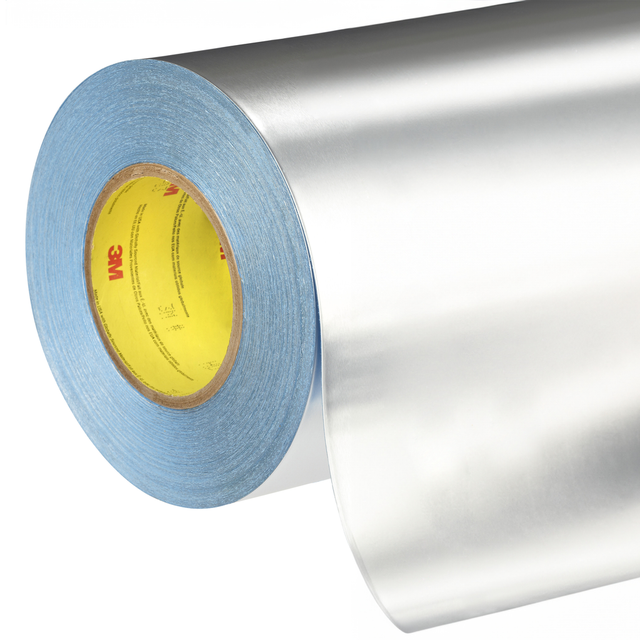

3M™ Vibration Damping Tape 435, Silver, 1 in x 36 yd, 13.5 mil, 36 Roll/Case - 7010334312

Sold As: 36-Pack
SKU: 7010334312
MPN: 7010334312
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956509
3M ID: 70006390663
5 Digit UPC: 95650
$5,685.08 ($157.92 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 435 is a low temperature, silver, dead soft aluminum foil tape. The aluminum foil constraining layer is coated with a pressure sensitive viscoelastic polymer on an easy release liner. This tape absorbs and dissipates vibration, reducing noise and fatigue.

Features

  • Tape is suitable for damping vibration at extremely low temperatures (-76°F/-60°C)
  • Meets F.A.R. 25.853(a)
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Linered for die-cutting to match parts for aerospace applications
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing MaterialAluminum Foil
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Elongation at Break12
Primary LinerPolyethylene
ApplicationVibration Damping
Tensile Strength (Imperial)800.0
Maximum Operating Temperature (Fahrenheit)68.0
Minimum Operating Temperature (Fahrenheit)-76.0
Overall Length (Imperial) UOMyd
Product ColorSilver
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial) UOMin
Overall Length (Metric)32.91
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Imperial)5.5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Units per Case36.0
Overall Length (Imperial)36.0
Maximum Operating Temperature (Celsius)20.0
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric)25.4
Adhesive TypeViscoelastic Polymer
Backing (Carrier) Thickness (Imperial)8.0
Tensile Strength (Metric)87.6
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Imperial) UOMoz/in
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.2
Overall Width (Imperial)1.0
Overall Length (Metric) UOMm
Specifications MetFAR 25.853(a)
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-60.0
