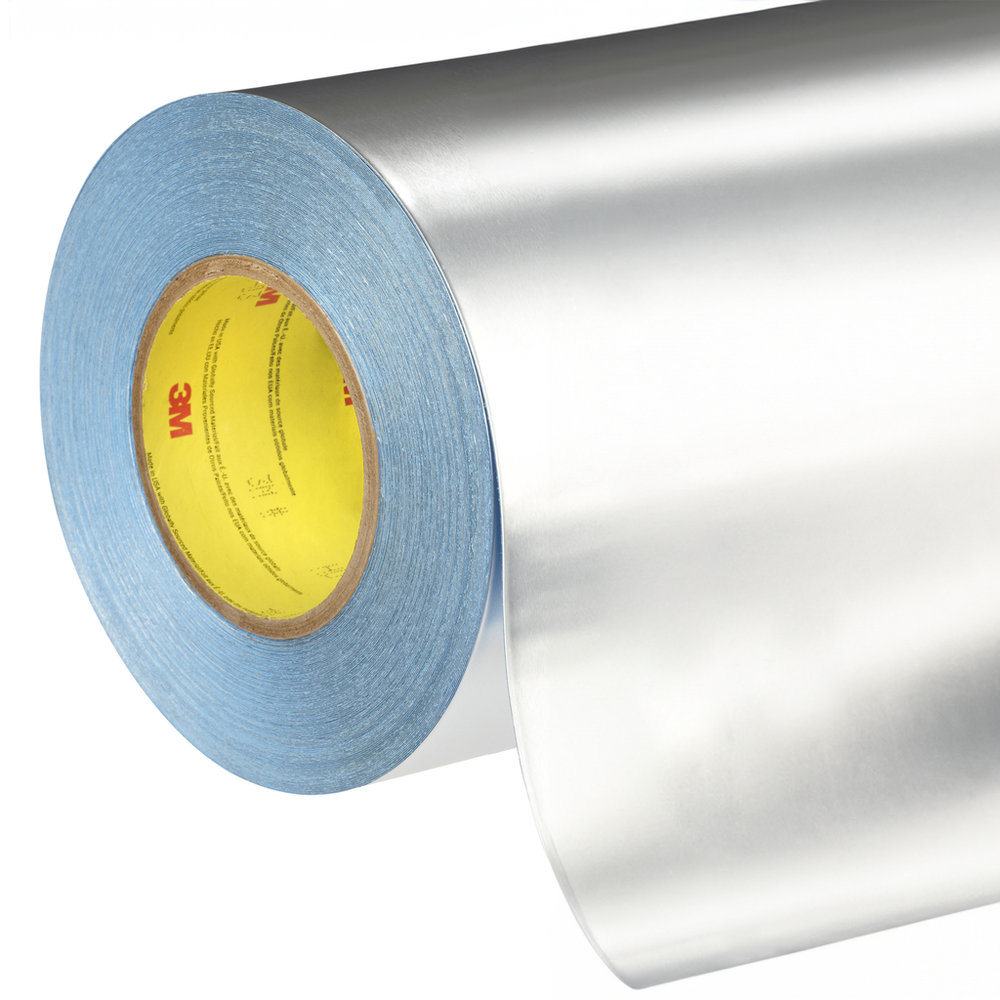

3M™ Vibration Damping Tape 435, Silver, 6 in x 36 yd, 13.5 mil, 2 Roll/Case - 7000049124

Sold As: 6-Pack
SKU: 7000049124
MPN: 7000049124
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956448
3M ID: 70006390606
5 Digit UPC: 95644
$5,685.08 ($947.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 435 is a low temperature, silver, dead soft aluminum foil tape. The aluminum foil constraining layer is coated with a pressure sensitive viscoelastic polymer on an easy release liner. This tape absorbs and dissipates vibration, reducing noise and fatigue.

Features

  • Tape is suitable for damping vibration at extremely low temperatures (-76°F/-60°C)
  • Meets F.A.R. 25.853(a)
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
  • Linered for die-cutting to match parts for aerospace applications
  • Resists weather and UV degradation, ensuring performance in many difficult applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial)8.0
Tensile Strength (Metric)87.6
Maximum Operating Temperature (Celsius)20.0
Primary LinerPolyethylene
Overall Length (Metric)32.9
Overall Width (Metric) UOMcm
Shelf Life UOMMonth
Units per Case2.0
Minimum Operating Temperature (Celsius)-60.0
Product ColorSilver
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric)0.2
Overall Width (Imperial)6.0
Tensile Strength (Imperial)800.0
Backing MaterialAluminum Foil
Overall Length (Imperial) UOMyd
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetFAR 25.853(a)
Adhesive TypeViscoelastic Polymer
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-76.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Elongation at Break12
Maximum Operating Temperature (Fahrenheit)68.0
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMoz/in
ApplicationVibration Damping
Back Side Adhesive Thickness (Imperial)5.5
Overall Length (Imperial)36.0
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)15.2
Overall Length (Metric) UOMm
