3M Products & Supplies

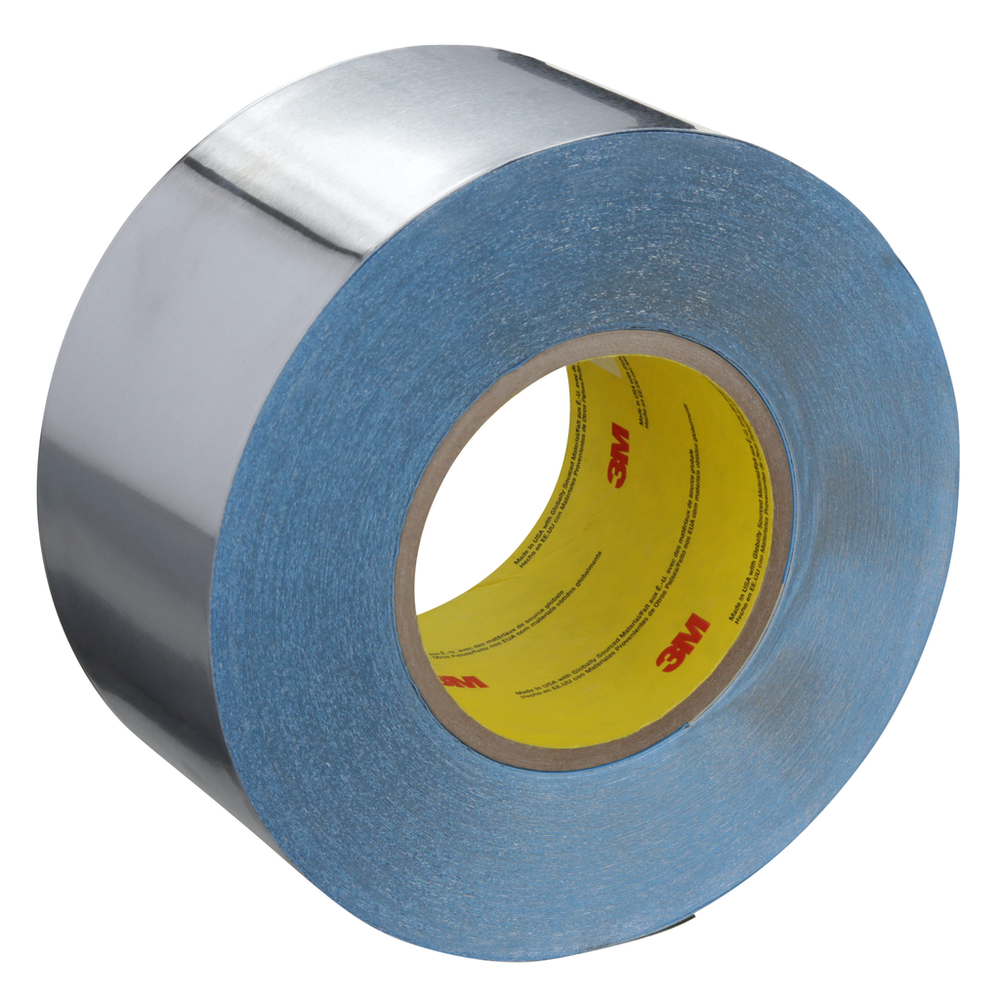

3M™ Vibration Damping Tape 435, Silver, 4 in x 36 yd, 13.5 mil, 2 Rolls/Case - 7100139451

Sold As: 18-Pack
SKU: 7100139451
MPN: 7100139451
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956431
3M ID: 70006390598
5 Digit UPC: 95643
$11,370.16 ($631.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 435 is a low temperature, silver, dead soft aluminum foil tape. The aluminum foil constraining layer is coated with a pressure sensitive viscoelastic polymer on an easy release liner. This tape absorbs and dissipates vibration, reducing noise and fatigue.

Features

  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
  • Linered for die-cutting to match parts for aerospace applications
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Tape is suitable for damping vibration at extremely low temperatures (-76°F/-60°C)
  • Meets F.A.R. 25.853(a)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Specifications MetFAR 25.853(a)
Units per Case2.0
Primary LinerPolyethylene
Backing (Carrier) Thickness (Imperial)8.0
Overall Width (Metric)10.2
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Tensile Strength (Imperial)800.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)5.5
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric)0.2
ApplicationVibration Damping
Adhesive TypeViscoelastic Polymer
Back Side Adhesive Thickness (Imperial) UOMmil
Elongation at Break12
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial)36.0
Overall Length (Metric)32.9
Minimum Operating Temperature (Fahrenheit)-76.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorSilver
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMcm
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-60.0
Tensile Strength (Imperial) UOMoz/in
Maximum Operating Temperature (Celsius)20.0
Maximum Operating Temperature (Fahrenheit)68.0
Tensile Strength (Metric)87.6
Overall Width (Imperial)4.0
Tensile Strength (Metric) UOMN/100mm
Backing MaterialAluminum Foil
Overall Width (Imperial) UOMin
