3M Products & Supplies

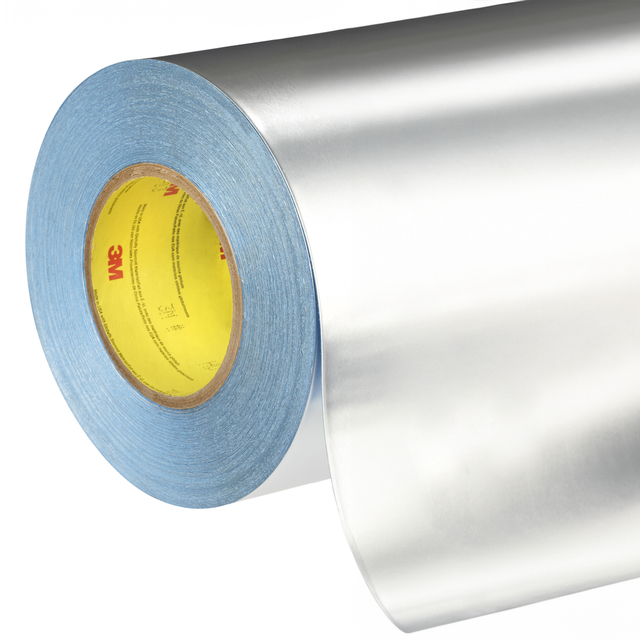

3M™ Vibration Damping Tape 436, Silver, 1 in x 36 yd, 17.5 mil, 12 Roll/Case - 7000049127

Sold As: 36-Pack
SKU: 7000049127
MPN: 7000049127
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956530
3M ID: 70006390697
5 Digit UPC: 95653
$6,815.75 ($189.33 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 436 is a silver, dead soft aluminum foil constraining layer coated with a pressure sensitive viscoelastic polymer on a blue polyethylene easy release liner. This tape absorbs and dissipates vibration and reduces noise. It is useful for a variety of applications in the aerospace, automotive, construction, appliance and MRO fields.

Features

  • Vibration damping properties make this tape an ideal choice for a variety of applications in industries such as aerospace, transportation, appliance, general industrial and more
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Linered construction offers die cutting capabilities
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy
  • Cold temperature resistance allows tape to perform at extremely low temperatures -76°F/-60°C
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Backing MaterialAluminum Foil
Shelf Life UOMMonth
Units per Case12.0
Primary LinerPolyethylene
Elongation at Break12
Product ColorSilver
Specifications MetFAR 25.853(a)
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
ApplicationVibration Damping
Tensile Strength (Imperial) UOMoz/in
Tensile Strength (Imperial)800.0
Minimum Operating Temperature (Celsius)-60.0
Backing (Carrier) Thickness (Metric)0.3
Backing (Carrier) Thickness (Imperial)12.0
Overall Width (Imperial)1.0
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-76.0
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)68.0
Overall Width (Metric)25.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)20.0
Tensile Strength (Metric)87.6
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeViscoelastic Polymer
Back Side Adhesive Thickness (Imperial)5.5
Overall Length (Metric)32.91
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
