3M Products & Supplies

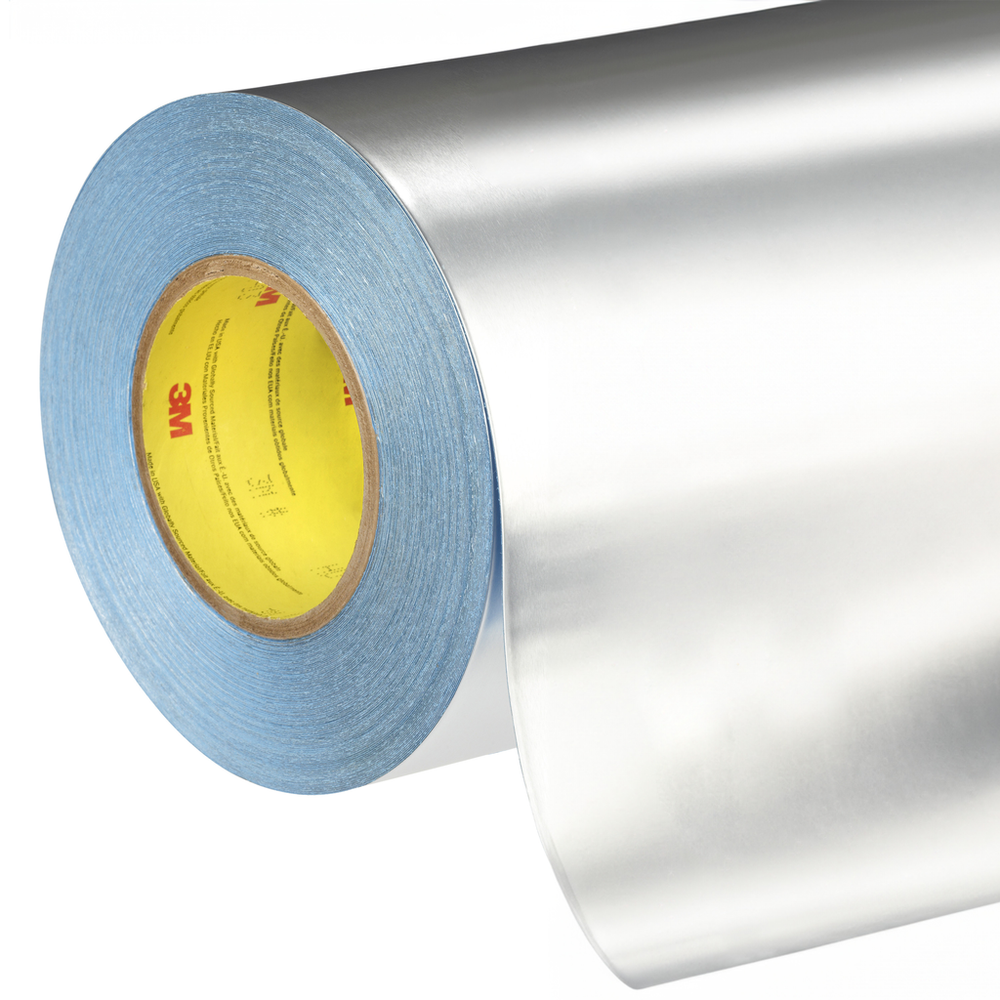

3M™ Vibration Damping Tape 436, Silver, 15 in x 36 yd, 17.5 mil, 1 Roll/Case - 7010334318

Sold As: 2-Pack
SKU: 7010334318
MPN: 7010334318
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956899
3M ID: 70006391042
5 Digit UPC: 95689
$5,679.37 ($2839.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 436 is a silver, dead soft aluminum foil constraining layer coated with a pressure sensitive viscoelastic polymer on a blue polyethylene easy release liner. This tape absorbs and dissipates vibration and reduces noise. It is useful for a variety of applications in the aerospace, automotive, construction, appliance and MRO fields.

Features

  • Vibration damping properties make this tape an ideal choice for a variety of applications in industries such as aerospace, transportation, appliance, general industrial and more
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy
  • Cold temperature resistance allows tape to perform at extremely low temperatures -76°F/-60°C
  • Linered construction offers die cutting capabilities
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.3
Elongation at Break12
Tensile Strength (Metric)87.6
Back Side Adhesive Thickness (Imperial)5.5
Specifications MetFAR 25.853(a)
Units per Case1.0
Overall Length (Metric)32.91
Maximum Operating Temperature (Fahrenheit)68.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Tensile Strength (Imperial) UOMoz/in
Overall Length (Imperial)36.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMMonth
Product ColorSilver
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeViscoelastic Polymer
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)381.0
Backing (Carrier) Thickness (Imperial)12.0
Overall Width (Imperial)15.0
Minimum Operating Temperature (Celsius)-60.0
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial)800.0
Backing (Carrier) Thickness (Imperial) UOMmil
ApplicationVibration Damping
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)20.0
Backing MaterialAluminum Foil
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)-76.0
Primary LinerPolyethylene
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMN/100mm
