3M Products & Supplies

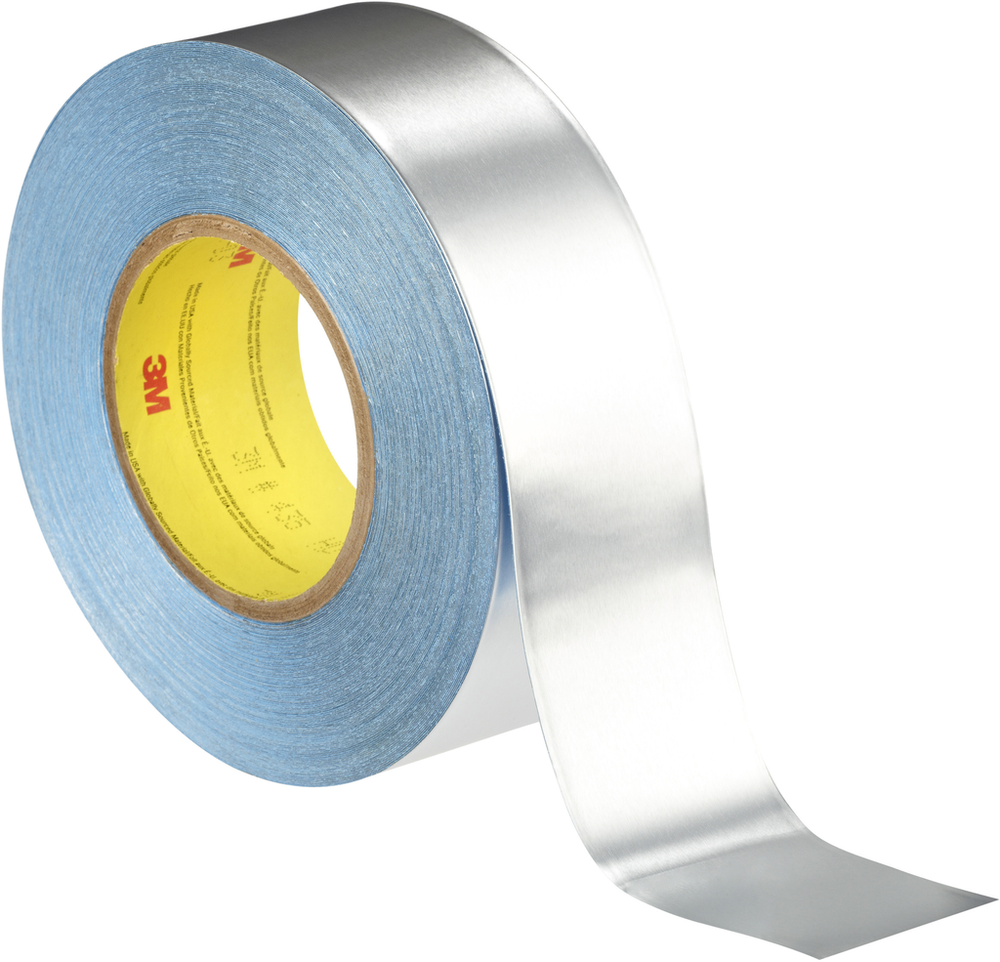

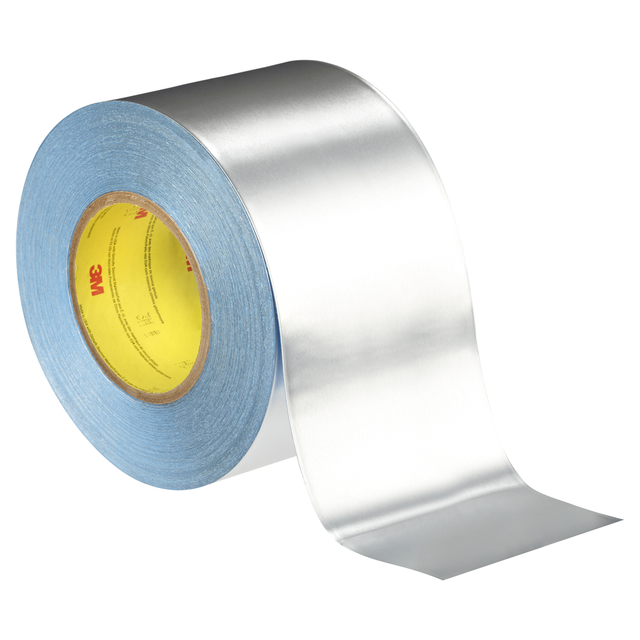

3M™ Vibration Damping Tape 436, Silver, 2 in x 36 yd, 17.5 mil, 6 Roll/Case - 7000049121

Sold As: 18-Pack
SKU: 7000049121
MPN: 7000049121
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956295
3M ID: 70006390457
5 Digit UPC: 95629
$6,815.16 ($378.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Vibration Damping Tape 436 is a silver, dead soft aluminum foil constraining layer coated with a pressure sensitive viscoelastic polymer on a blue polyethylene easy release liner. This tape absorbs and dissipates vibration and reduces noise. It is useful for a variety of applications in the aerospace, automotive, construction, appliance and MRO fields.

Features

  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Linered construction offers die cutting capabilities
  • Vibration damping properties make this tape an ideal choice for a variety of applications in industries such as aerospace, transportation, appliance, general industrial and more
  • Cold temperature resistance allows tape to perform at extremely low temperatures -76°F/-60°C
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric)50.8
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Metric)0.3
Primary LinerPolyethylene
ApplicationVibration Damping
Overall Length (Imperial)36.0
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case6.0
Backing MaterialAluminum Foil
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)800.0
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial) UOMoz/in
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)20.0
Adhesive TypeViscoelastic Polymer
Backing (Carrier) Thickness (Imperial)12.0
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)68.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Specifications MetFAR 25.853(a)
Tensile Strength (Metric)87.6
Tensile Strength (Metric) UOMN/100mm
Elongation at Break12
Minimum Operating Temperature (Fahrenheit)-76.0
Back Side Adhesive Thickness (Imperial)5.5
Overall Width (Imperial)2.0
Minimum Operating Temperature (Celsius)-60.0
Product ColorSilver
