3M Products & Supplies

3M™ Vibration Damping Tape 436, Silver, 7 in x 36 yd, 17.5 mil, 1 Roll/Case - 7000124199

Sold As: 5-Pack
SKU: 7000124199
MPN: 7000124199
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956264
3M ID: 70006390424
5 Digit UPC: 95626
$6,625.00 ($1325.00 / Count)
Hurry up! Current stock:

Product Description

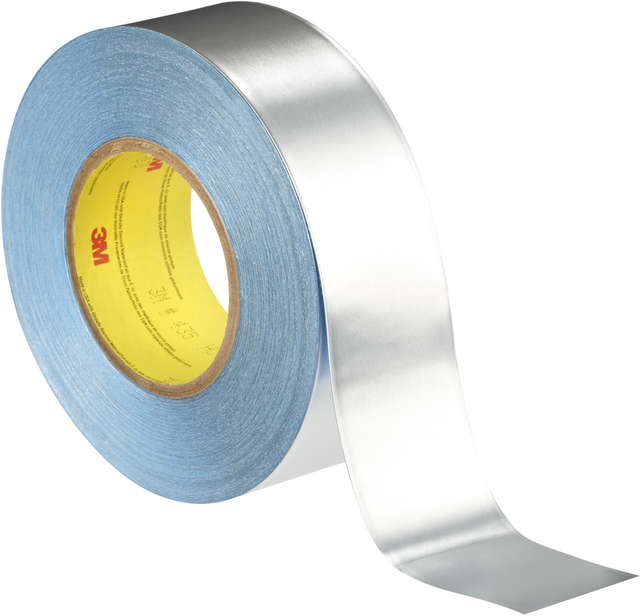

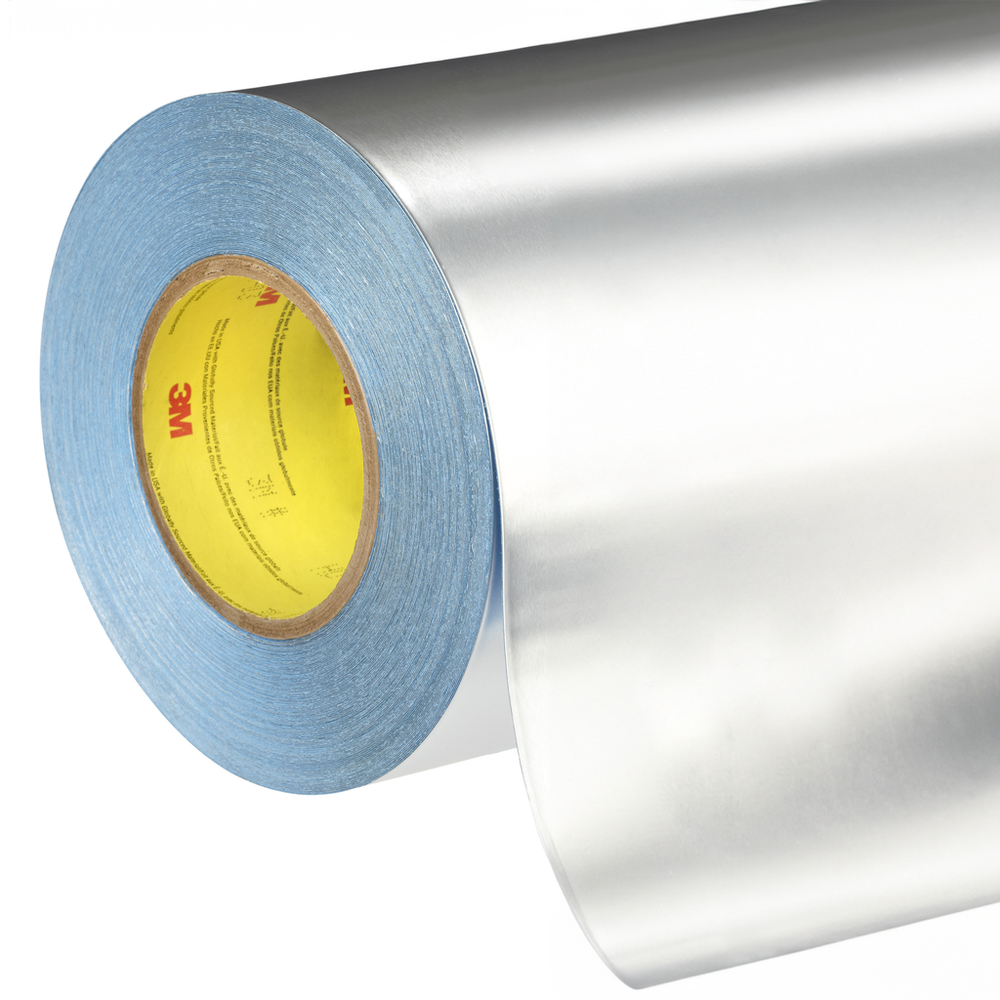

3M™ Vibration Damping Tape 436 is a silver, dead soft aluminum foil constraining layer coated with a pressure sensitive viscoelastic polymer on a blue polyethylene easy release liner. This tape absorbs and dissipates vibration and reduces noise. It is useful for a variety of applications in the aerospace, automotive, construction, appliance and MRO fields.

Features

  • Linered construction offers die cutting capabilities
  • Resists weather and UV degradation, ensuring performance in many difficult applications
  • Cold temperature resistance allows tape to perform at extremely low temperatures -76°F/-60°C
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy
  • Vibration damping properties make this tape an ideal choice for a variety of applications in industries such as aerospace, transportation, appliance, general industrial and more
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric) UOMm
Units per Case1.0
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Overall Length (Metric)32.9
Adhesive TypeViscoelastic Polymer
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)12.0
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorSilver
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)5.5
Back Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-60.0
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Overall Width (Metric)17.8
Overall Width (Imperial)7.0
Minimum Operating Temperature (Fahrenheit)-76.0
Tensile Strength (Metric)87.6
Overall Width (Metric) UOMcm
Backing (Carrier) Thickness (Metric)0.3
Maximum Operating Temperature (Celsius)20.0
Tensile Strength (Metric) UOMN/100mm
ApplicationVibration Damping
Tensile Strength (Imperial)800.0
Primary LinerPolyethylene
Elongation at Break12
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)68.0
Backing MaterialAluminum Foil
Specifications MetFAR 25.853(a)
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
